Yamaha DM7 Professional 120-Channel Dual Bay Digital Console
More than 30 years since the release of Yamaha’s first digital mixer, the DMP7, the landscape of professional audio has seen a steady progression in technological advancements and innovations that have impacted mixing and recording styles significantly.
DM7 series mixing consoles represent a sizable step forward in this evolution of form, functionality, and flexibility with their intuitive UI, compact design, and comprehensive suite of powerful features that allow them to outperform other mixers in their class in an impressive range of audio environments. From broadcasting, streaming, and music production, to live hybrid events and concert performances, the advanced capabilities of the DM7 series set a new standard in operability and workflow while simultaneously staying true to Yamaha’s sonic tradition of “natural sound”. As the times continue to change, your DM7 will keep you ahead of the curve with a user experience that’s a cut above anything in its class, and sonic performance well beyond the expectations of audiences and engineers alike.
Features:
- Sound:
- Off to a solid start
- Powerful Channel Strip
- Extensive plug-ins and new effects
- Operability:
- Advanced GUI for intuitive control
- Configure the ideal DM7 system to suit your workflow
- Utility screen for streamlined performance
- Advanced Selected Channel View and visible Overview
- Your settings in your language
- Design:
- Functional and attractive layout
- Consistent user experience
- Compact and lightweight construction for easy setup and transport
- Functionality:
- Split Mode turns one console into two mixers
- "Assist" lets you focus your creativity
- Dante interface for high channel count and flexible connectivity
- Versatile USB connection
- DAW Remote for efficient audio production
- Redundant power supplies for serious reliability
- Expandability:
- DM7 Control expansion controller
- Broadcast Package and Theatre Package for enhanced, specialized control
- PY slot for expansion cards
- Compatible software for convenient control
- Get ready for the show with the Console File Converter
- Bundled software that expands your creative options
Specifications:
- Mixing Capacity:
- Input Channels: 120 mono
- Mix Buses: 48
- Matrices: 12 (input to Matrix supported)
- Stereo Buses: 2
- Mono Buses: 1 (Stereo B can be changed)
- Cue Buses: 2

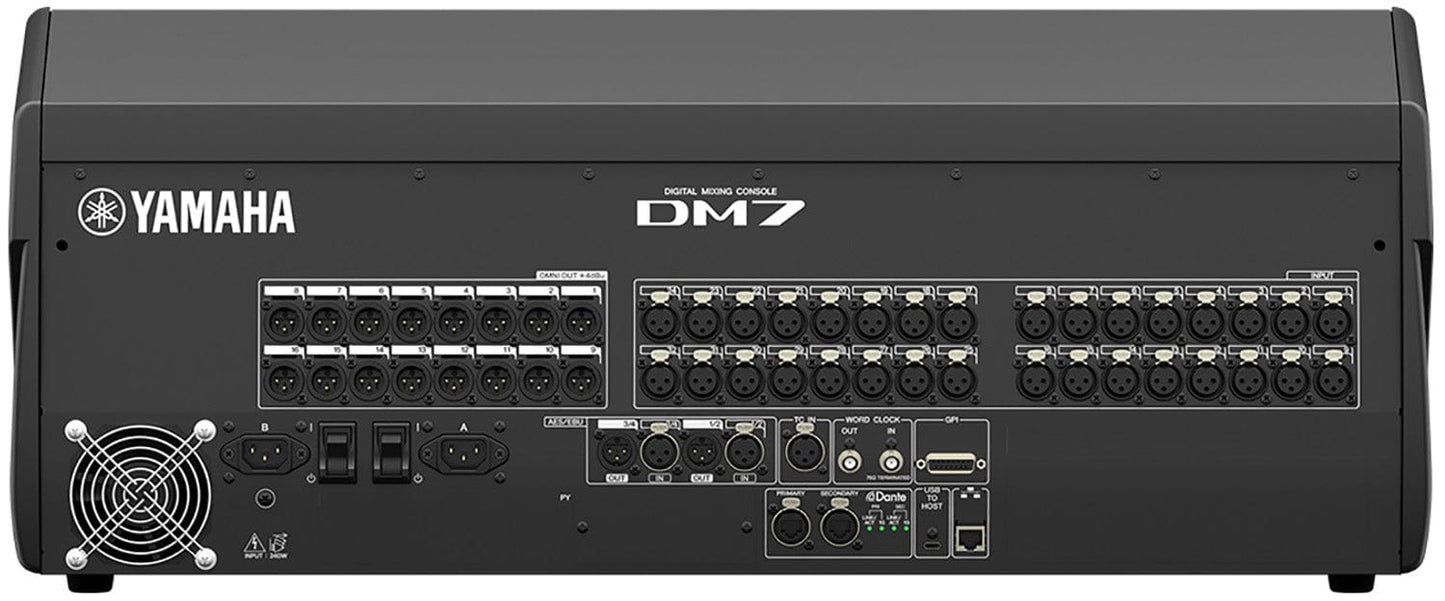

- I/O Connectors:
- Analog Input: 32
- Analog Output: 16
- Dante: Primary/Secondary
- AES/EBU Input: 2 (4 ch)
- AES/EBU Output: 2 (4 ch) with SRC
- Expansion Slot (PY Slot): 1
- World Clock I/O: In / Out
- MIDI: No (MIDI protocol supported on USB to HOST)
- GPI: 5 in / 5 out
- USB to Device: 2 (File Save / Load, 2 Track Rec / Play)
- USB to Host: 1 (USB Type-C, USB2.0)
- Ethernet: Yes
- Meter Bridge: On screen
- Lamp: 0 (Built-in LED strip light)
- Video Out: No
- TC In: Yes
- Phones: 1
- AC: 2 (V-Lock Type)
- External Redundant Power Supply: Built-in dual power supply
- Scene Memory:
- Number of Scenes: 500
- Recall Safe: Yes
- Focus Recall: Yes
- Fade Time: Yes
- Preview: No
- Selective Load / Save: Yes
- Global Paste: Yes
- Event List: No
- Overlay: No
- Isolate: No
- Tactile Control Keys: No
- Input Channel Functions:
- Input A/B: Yes
- Gain Compensation: Yes
- Digital Gain: Yes (-96 dB to +24 dB)
- Attenuator: Yes (-96 dB to +24 dB)
- HPF: 20 Hz to 2,000 Hz, -6/-12/-18/-24 dB/oct Selectable
- PEQ: 4 band full PEQ (4 algorithms, RTA overlay supported)
- LPF: 20 Hz to 20 kHz, -6/-12 dB/oct
- Dynamics 1: Legacy comp/comp260/expander/gate/ducing/de-esser
- Dynamics 2: Legacy comp/comp260/expander/gate/ducking/de-esser/FET limiter/Diode bridge comp
- Input Delay: Yes (output DCA supported)
- Pan: Center nominal/LR nominal
- DCA Group: 24 (output DCA supported)
- DCA Rollout: Yes
- Mute Group: 12
- Number of Inserts: 4 slots on 1 insert point
- Dan Dugan Automixer: Yes (Up to 64 ch)
- Direct Out: Yes
- Output Channel Functions:
- PEQ: 8 band full PEQ
- GEQ: Virtual rack (EQ rack)
- Dynamics 1: Legacy Comp / Comp260 / Expander / Gate / Ducking / De-Esser / FET Limiter / Diode Bridge Comp
- Output Channel Delay: Yes (0 ms to 1,000 ms)
- MUTE Group: 12
- Number of Inserts: 4 slots on 1 insert point
- Premium Rack:
- Number of DSP Resources: 64
- Effect Rack:
- Number of DSP Resources: 16
- Number of Effect Types: 43
- EQ Rack:
- Number of DSP Resources: 32
- Mountable Devices: 31BandGEQ / Flex15GEQ / 8Band PEQ (RTA overlay supported)
- Dante:
- Number of I/O Channels: 144 in / 144 out
- Number of Discoverable I/O Devices: 127 *1
- Number of I/O Devices with HA: 24
- Dante Patch from Console: Yes
- USB to Host:
- Number of Audio I/O: Channels: 18 in / 18 out
- USB MIDI: Yes
- Monitor:
- Solo Mode: Yes
- Oscillator: Sine Wave 1ch/Sine Wave 2ch/Pink Noise/Burst Noise
- Other Functions:
- Port to Port: Yes
- Timecode Reader/Display: Yes
- Timecode Chase: No
- GPI: Yes (5 in / 5 out)
- MIDI: Yes (USB MIDI)
- OSC Server: Yes
- DAW Remote: Yes
- Nuendo Live: Control Integration: Yes
- Virtual Soundcheck: Yes
- Wireless Mic Monitoring: Yes
- RTA: Yes
- Delay Compensation: Yes
- Output Port Delay: Yes (up to 2o ports)
- Sub In: Yes
- User Levels: Yes
- Channel: Yes
- Temporary Channel Link: Yes
- Multi Language Channel Names: Yes
- Mix/Matrix to Input: Yes
- Split Mode: Yes
- Assist: Yes (HA/naming/fader)
- User Interface:
- Displays: 12.1-inch multi-touch x 2, 7-inch multi-touch x 1
- Faders: 24+4
- Channel/Screen Encoders: Yes
- Channel Name/Color: No (on-screen)
- Custom Fader Banks: Yes
- Shift Keys: Yes
- User Defined Keys: Surface: 12 (6 keys x 4 banks), Utility Screen (On-screen): 12 (12 keys x 4 banks)
- User Defined Knobs: Yes (by 4 below Utility screen)
- Touch and Turn Knobs: Yes
- Monitor Level Knobs: Yes
- Arm Rest: Yes
- Rack Mountable: No
- Software:
- Editor: DM7 editor (win/mac)
- StageMix: DM7 StageMix
- MonitorMix: Yes
- Console File Converter: Yes
- ProVisionaire Control/Touch: Yes
- Software Package: Broadcast Package, Theatre Package
- Dimensions and Weight:
- Dimensions: 31.3 x 12.8 x 22.2 inches (793 x 324 x 564 mm)
- Weight: 23.5 kg (51.8 g)
