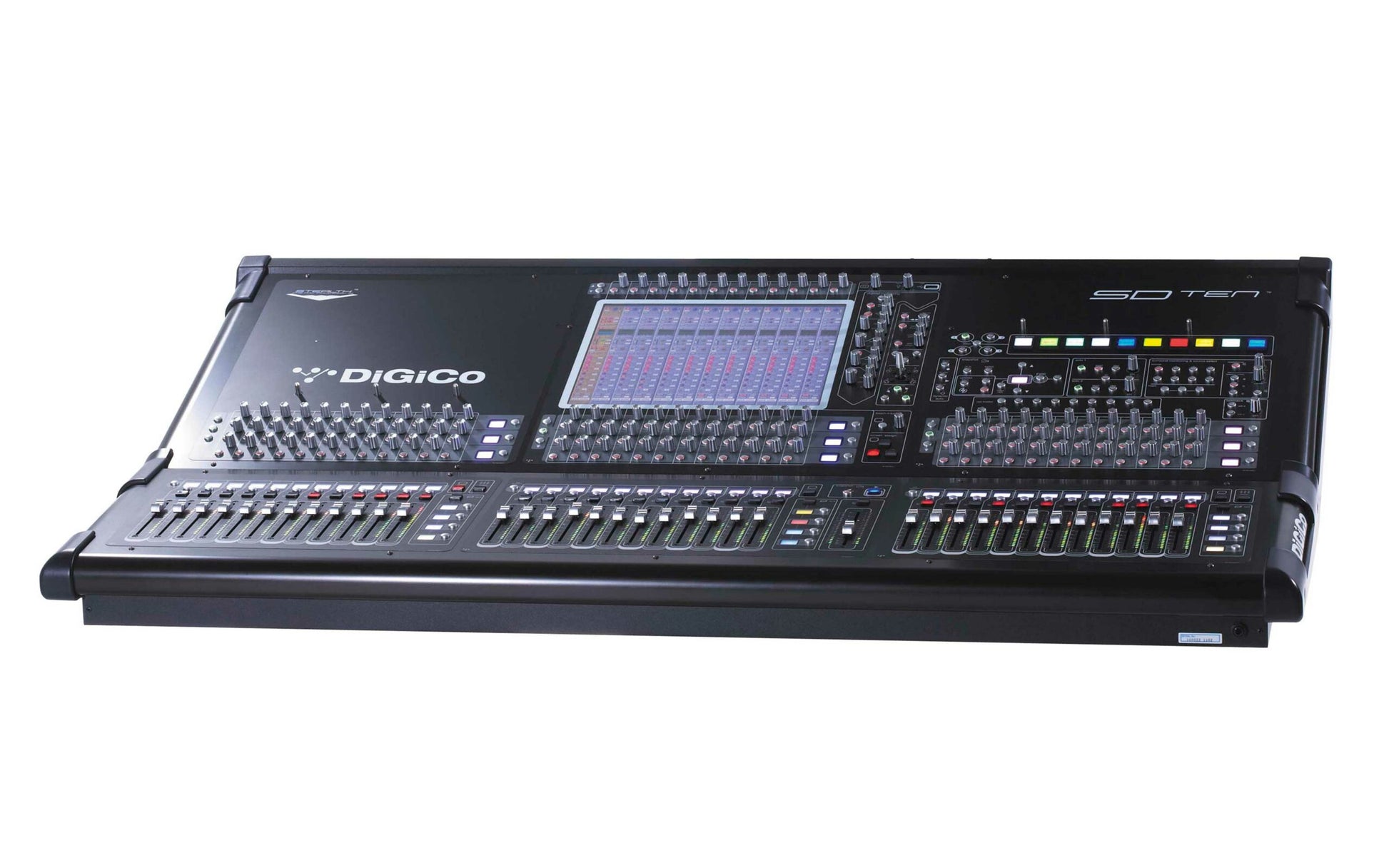

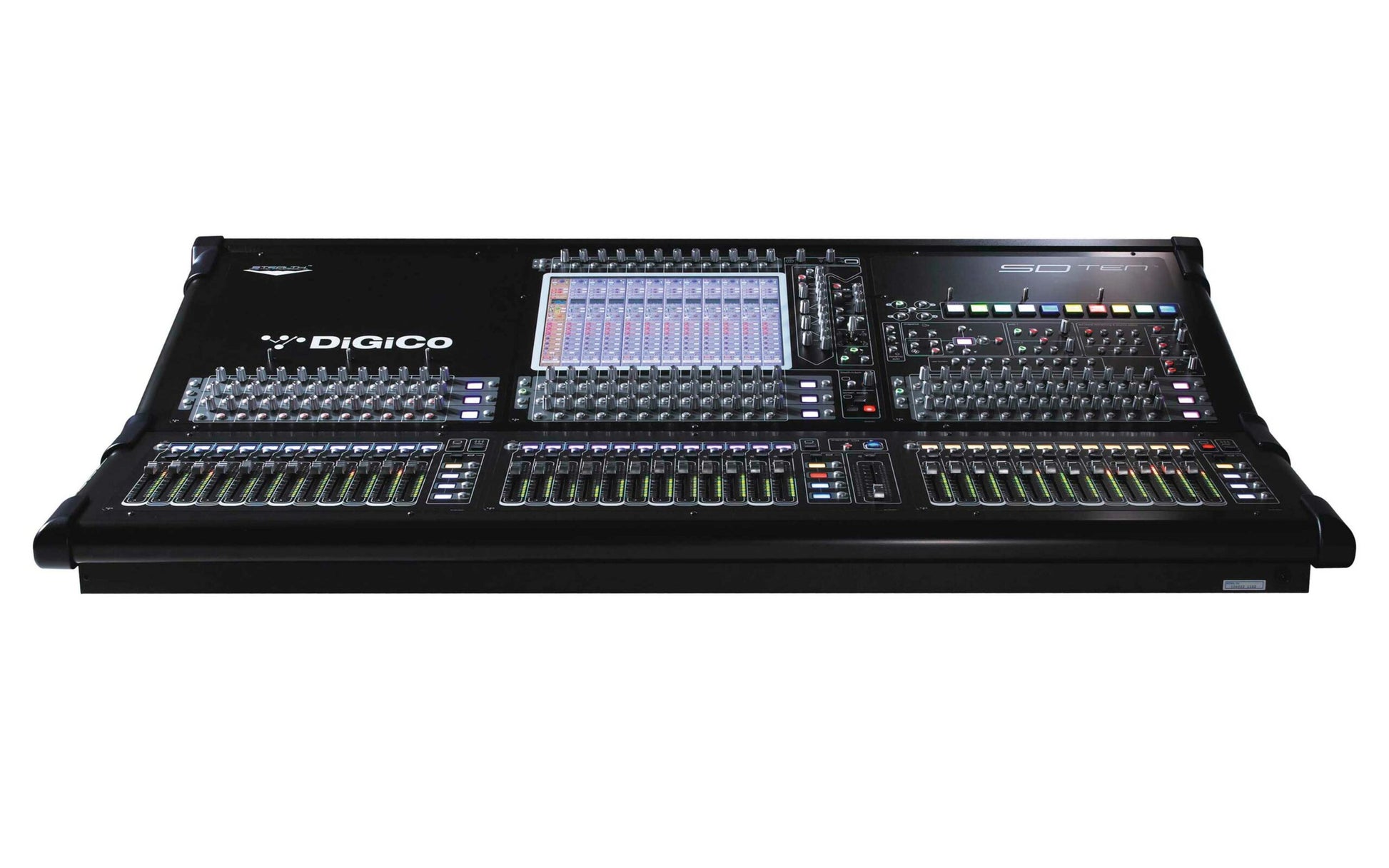

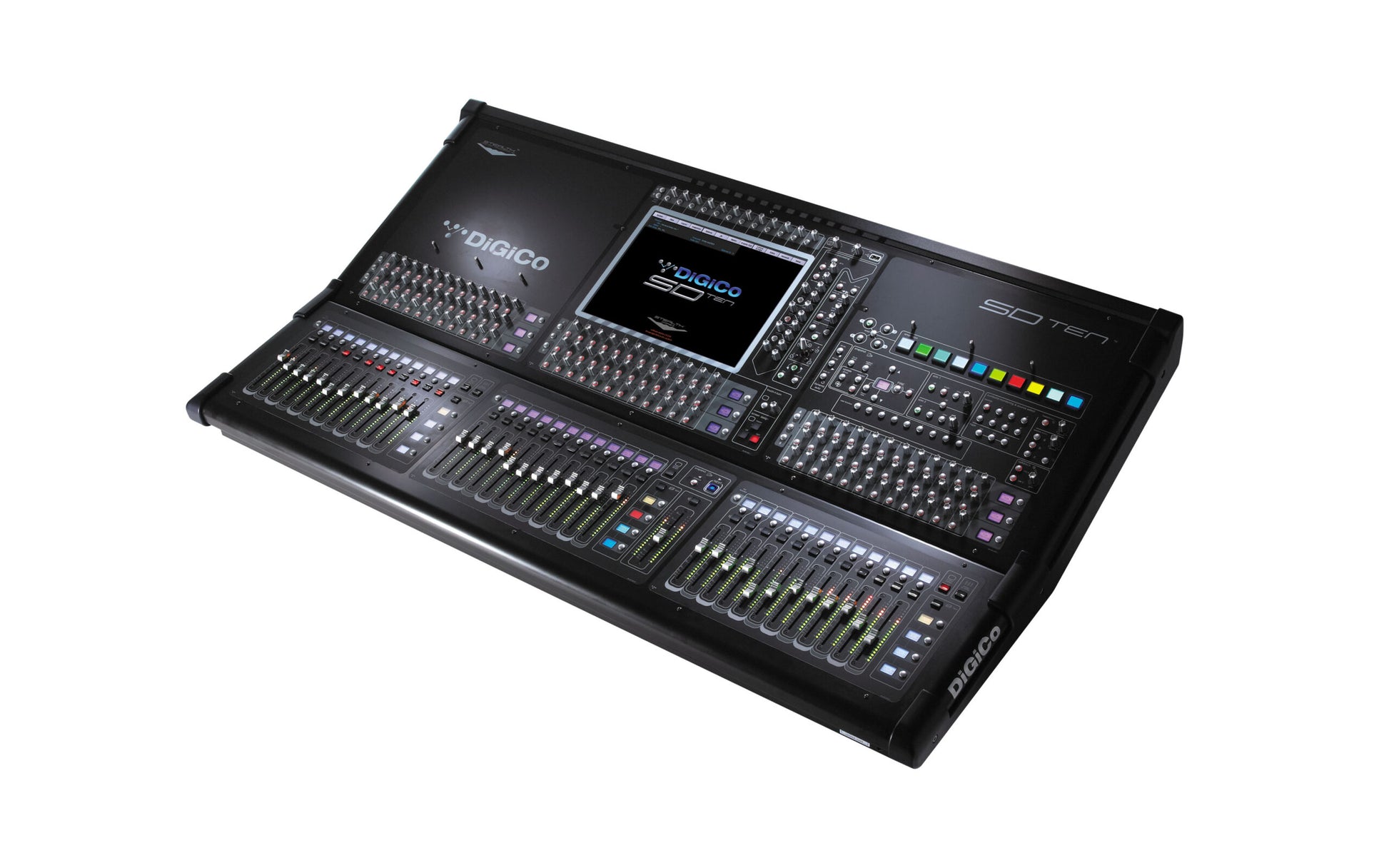

DiGiCo SD10 144-Input Digital Mixing Console

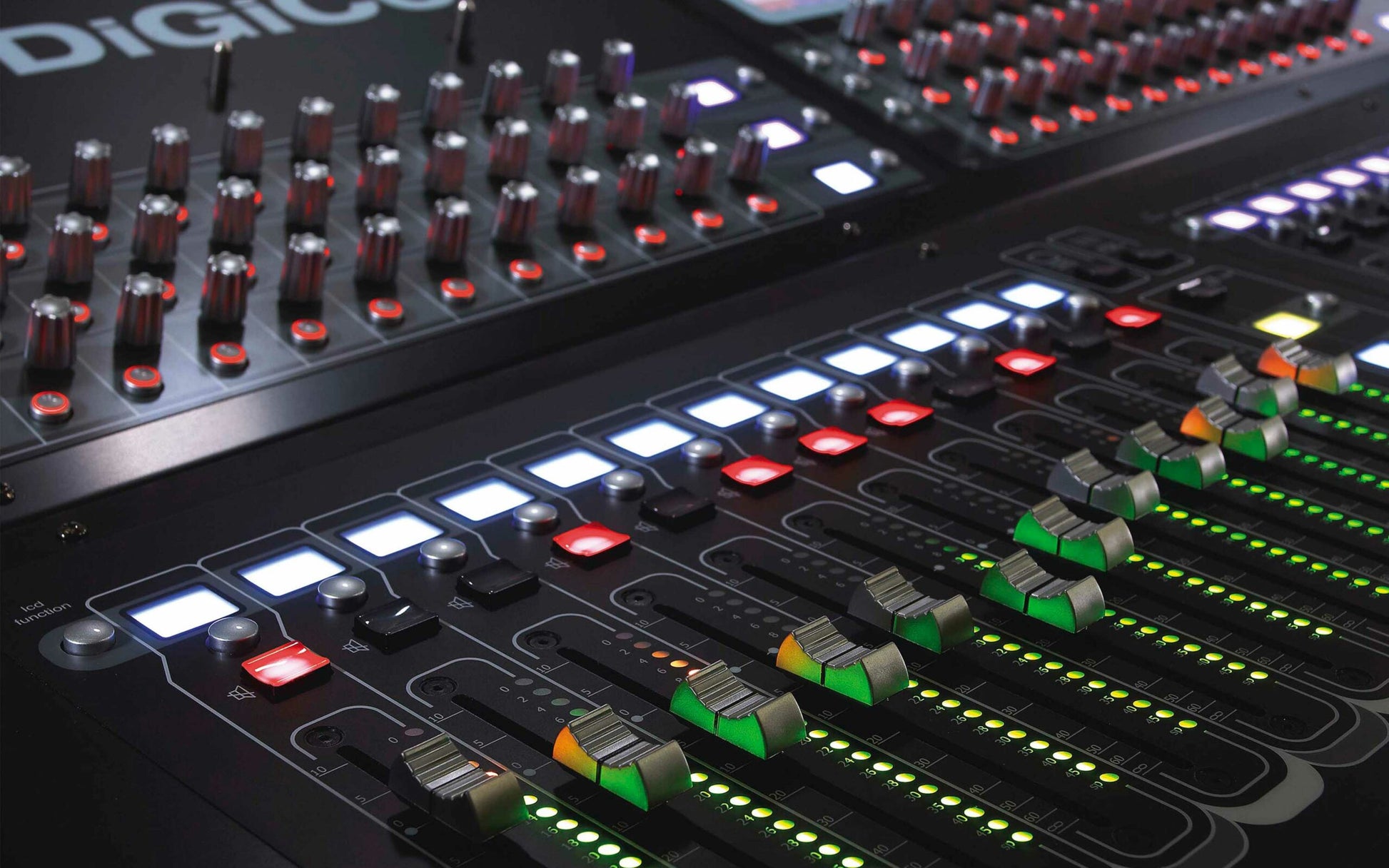

The SD10 offers advanced control with three banks of 12 motorised faders plus a master fader, each featuring high-resolution LED bar graph meters.

A central 15-inch backlit colour-keyed TFT touchscreen provides intuitive access to all functions. The console handles 144 processing channels at 48kHz/96kHz, and delivers  Channel Delay, Single and Multi-Channel Presets, Dual insert points, Hi- and Lo-pass filters @ 24dB/octave, four-band parametric EQ with band curve selection and DiGiCo’s renowned DYN 1 and DYN 2.

The console is equipped with 218 dynamic EQs, multiband compressors, and DiGiTuBes assignable across inputs and outputs, plus 24 gangable 32-band graphic EQs, 24 stereo effects, and control groups.

The console supports various configurations including MADI, One Multi-Mode Optics HMA and Multi-Mode Optics ST.

Features:

• 144 Input Channels
• 64 Aux / Sub-Group Busses
• LR/LCR/LCRS/5.1 Master Buss
• 24 x 24 Full Processing Matrix
• 218 Dynamic Equalizers
• 48/96kHz Sample Rate

Specifications:

• Buses: 48 busses + LR/LCR master bus
• Matrix: 12 x 8 matrix

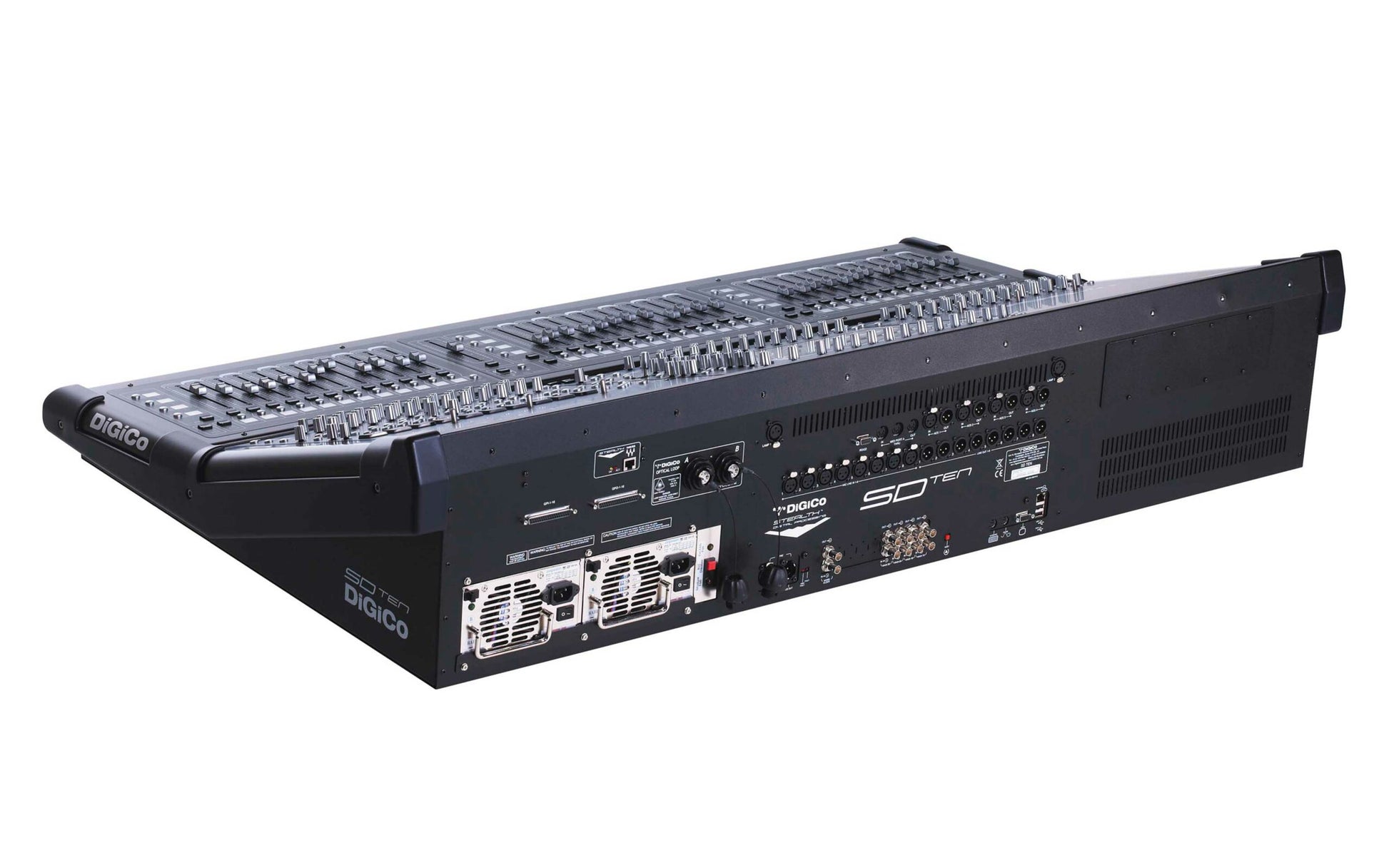

• Local I/O:
  • 8 mic/line inputs
  • 8 line outputs
  • 4 AES/EBU I/O
• MADI ports: Dual MADI ports supporting up to 64 channels at 48kHz or 32 channels at 96kHz each
• DMI slots: 2 slots for DiGiCo Multichannel Interface cards
• FPGA technology: Powered by advanced FPGA processing
• Dynamic EQ: 4-band fully parametric dynamic EQ
• Multi-band compression: 3-band multi-band compression
• Power supply: Dual redundant power supplies
• Dimensions: Approximately 930mm x 870mm x 285mm (36.6" x 34.2" x 11.2")
• Weight: Approximately 45kg (99 lbs)
