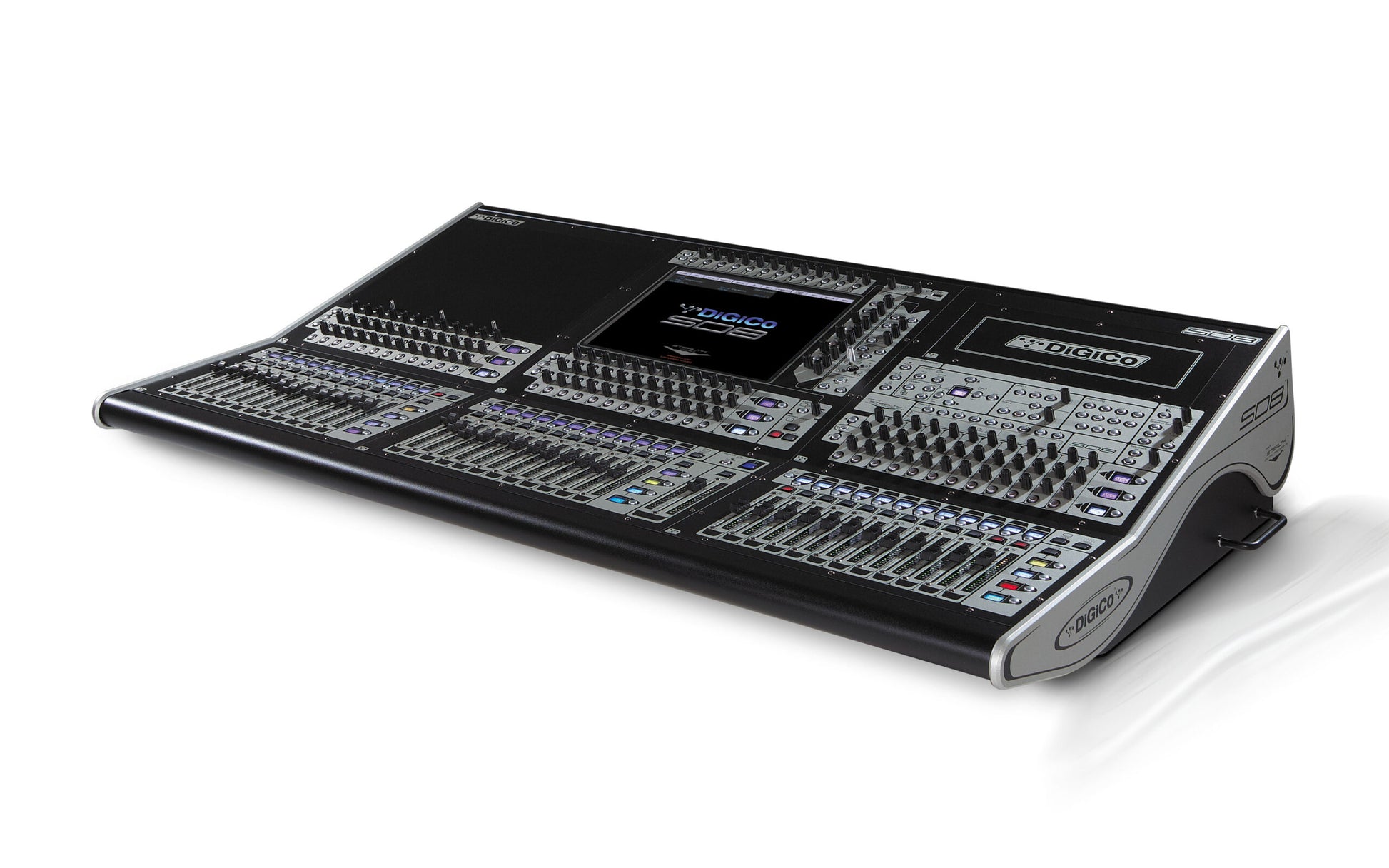

DiGiCo SD8 Digital Mixing Console
The SD8 features a 15-inch high-resolution TFT LCD touch screen with a backlit display, enabling flexible assignment of any bank of 12 faders as input or output channels, allowing control over all 36 main faders or through the touch screen. It includes multifunction control knobs and electronic labelling for precise operation.
The console runs with 120 input channels sampling at 48kHz/96kHz.
The SD8 offers 190 dynamic EQ processors, each with four parametric bands, and four multiband compressors and DiGiTuBes. Additional processing includes 24 gangable 32-band graphic EQs, 16 stereo effects, and 24 control groups.
The console provides 48 assignable busses (mono/stereo groups or auxiliaries), a 16×16 output matrix, dual solo busses, and a Master buss.
The SD8 supports various configurations including MADI and Multi-Mode Optics ST.
Features:
- 120 Input Channels
- 48 Aux / Sub-Group Busses
- LR/LCR/LCRS Master Buss
- 16 x 16 Full Processing Matrix
- 190 Dynamic Equalizers
- 48/96kHz Sample Rate
Specifications:

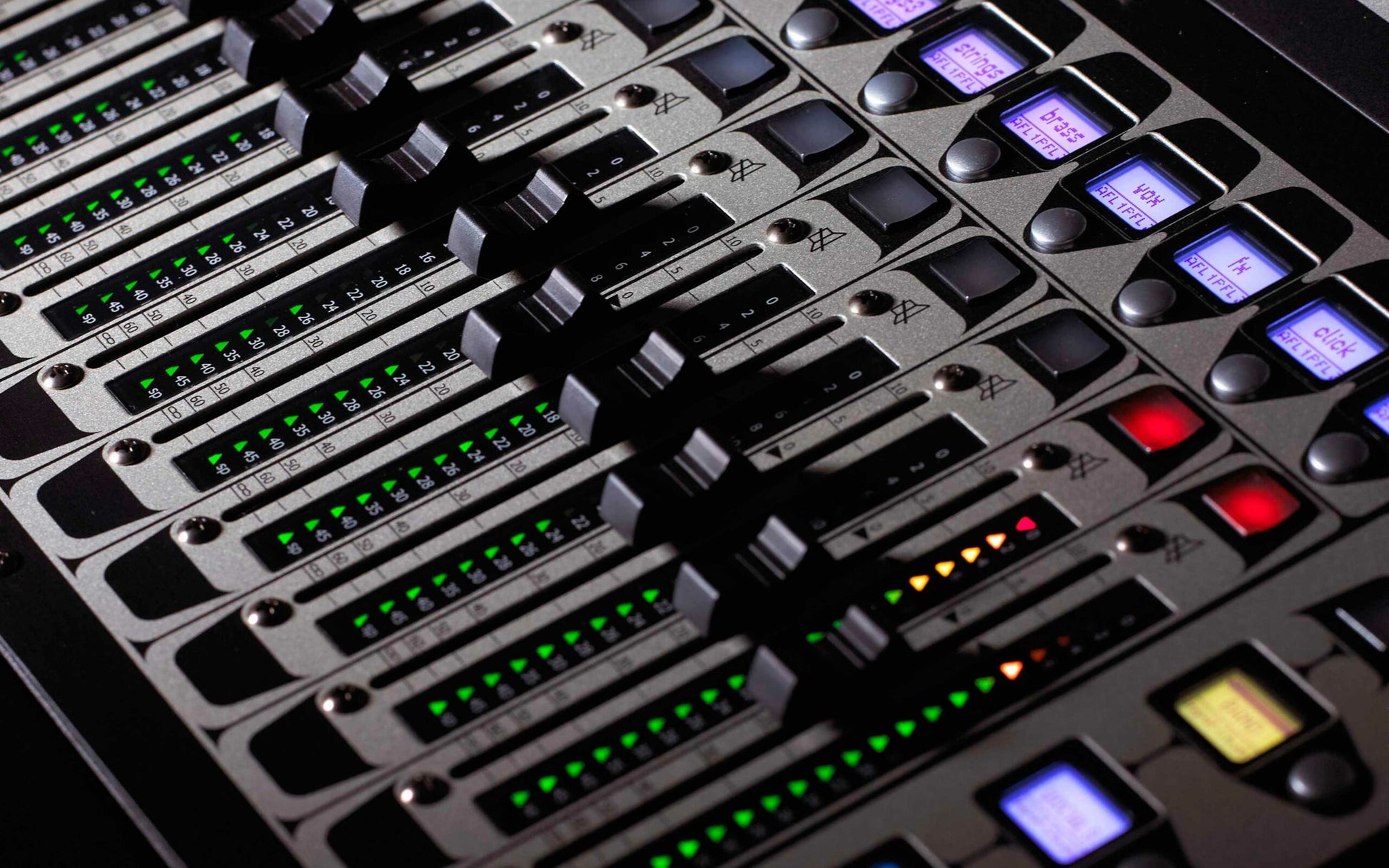

- 37 x 100mm touch-sensitive, motorised faders
- 1 x 15” LCD high-resolution touchscreen
- 38 x 20-segment LED bargraph meters
- 1 x ¼” Headphone socket
- 1 x USB 2.0 slot
- 2 x Redundant PSUs
- 2 x XLR3 1.2 – 12V light connections
- 8 x XLR Mic/Line Inputs
- 8 x XLR Line Outputs
- 4 x XLR AES/EBU Inputs (8 channels)
- 4 x XLR AES/EBU Outputs (8 channels)
- 1 x MIDI In/Thru/Out (5 pin DIN)
- 1 x Word Clock I/O BNC
- 2 x Redundant MADI BNC I/O
- 1 x XLR AES Sync I/O
- 1 x VGA Port (1024 x 768 Resolution)
- 1 x Ethernet port
- 2 x USB 2.0 slots
- 1 x MultiMode Optocore Interface (Optional)
- Sample Rate: 48kHz or 96kHz
- Processing Delay: 2ms Typical @ 48k, 1.1ms @ 96k
- Internal Processing: Up to 40-bit, Floating Point
- A/D & D/A: 24-bit Converter Bit Depth
- Frequency Response: +/- 0.6dB (20Hz – 20kHz)
- THD: <0.05% @ Unity Gain, 10dB Input @ 1kHz
- Channel Separation: Better than 90dB (40Hz-15kHz)
- Residual Output Noise: <90dBu Typical (20Hz-20kHz)
- Microphone Input: Better than -126dB Equivalent Noise
- Maximum Output Level: +22dBu
- Maximum Input Level: +22dBu
