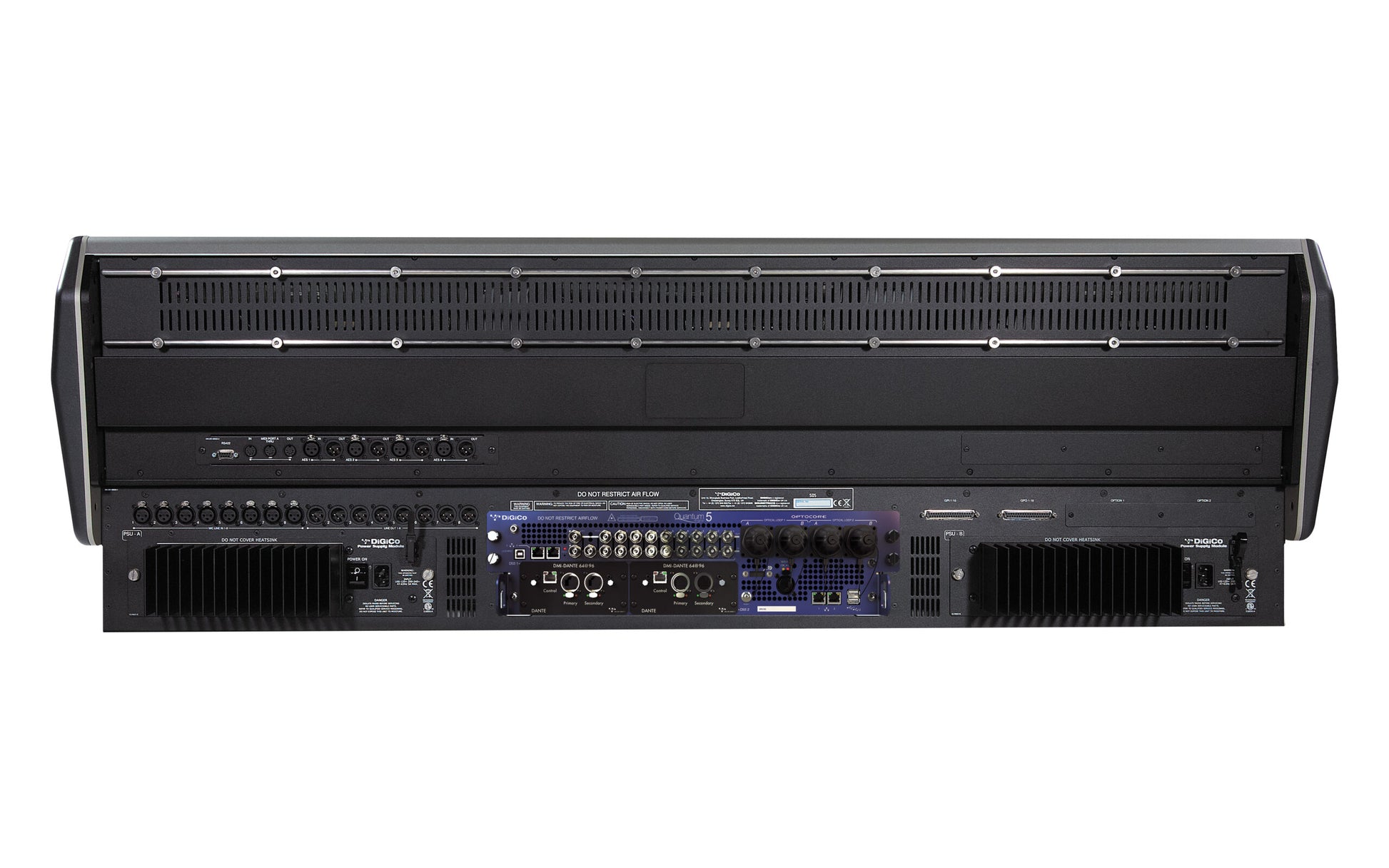

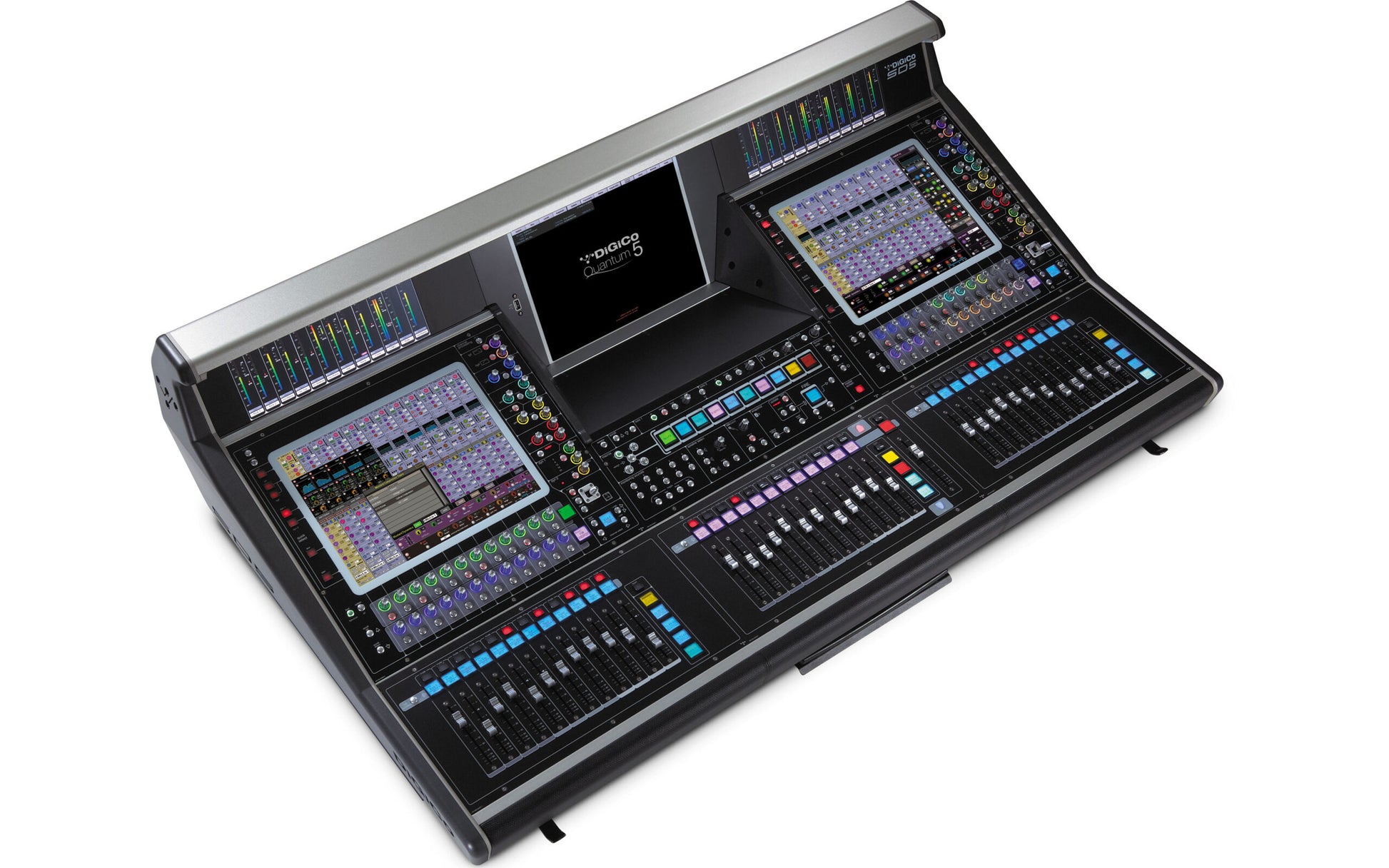

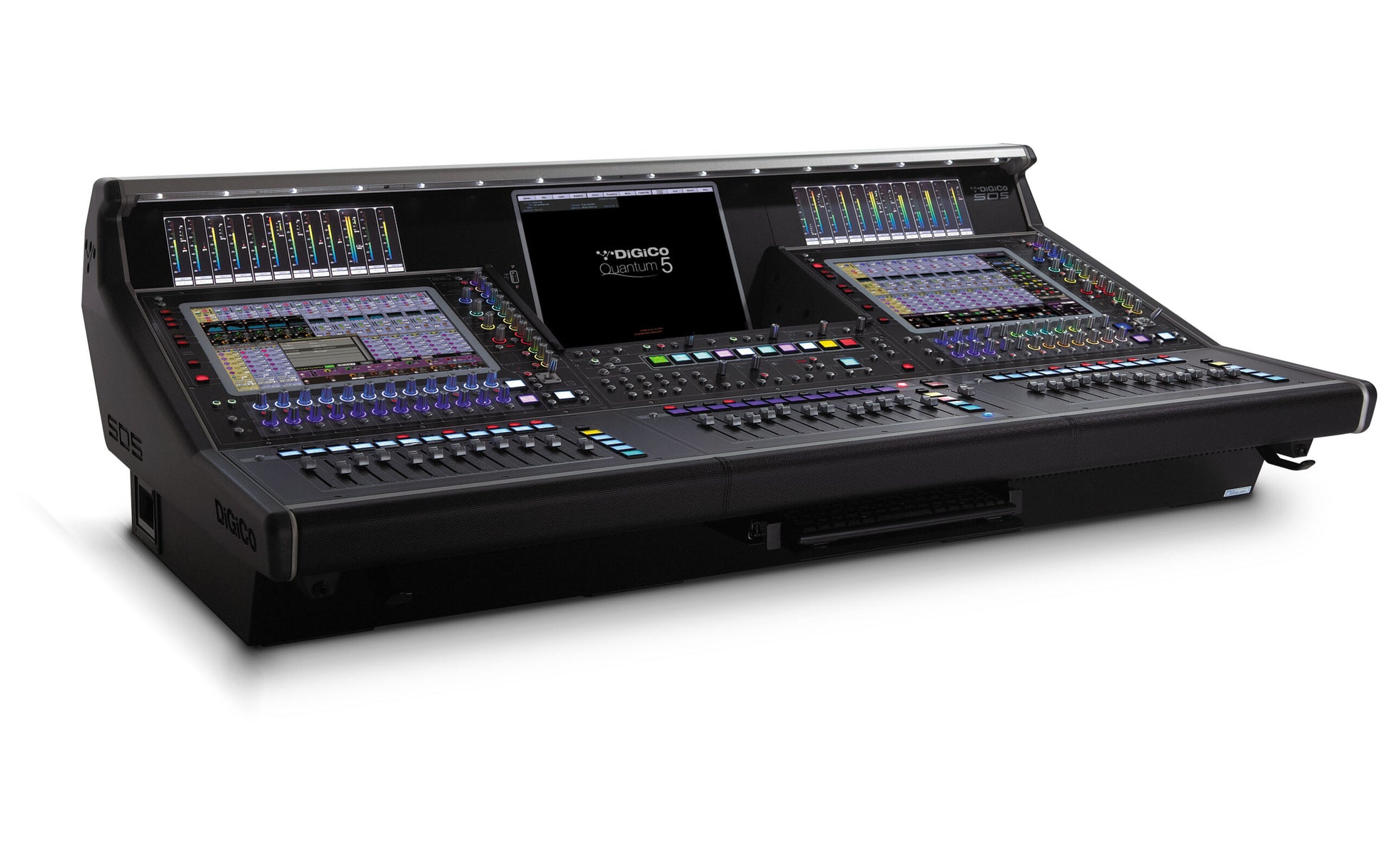

DiGiCo Quantum 5 Digital Mixing Console
The Quantum 5 offers advanced audio processing with 37 faders and three 15-inch full-colour TFT touchscreens. It is powered by seventh-generation FPGAs and supports up to 2,000 channels across 458 processing paths at 96kHz.
The console features over 450 processing paths, including 288 configurable channels, 256 inputs, 128 busses, and a 36 x 36 matrix.
The Quantum 5 includes four redundant MADI ports, two DMI slots for AoIP integration, and advanced input/output processing with Channel Delay, DiGiTube, Single and Multi-Channel Presets, Dual insert points, Hi- and Lo-pass filters at 24dB/octave, four-band parametric EQ with band curve selection and Dynamic EQ on each band, DiGiCo’s DYN 1 and DYN 2.
The console supports various configurations including MADI, One Multi-Mode Optics HMA and Multi-Mode Optics ST.
