Quantum 326: Leap ahead
Representing a dramatic leap forward in power and connectivity within a remarkably compact format, Quantum 326 is the younger sister of the Quantum 338.
Boasting a wealth of new design features and enhancements to create ultimate flexibility of use plus the speed of operation that only Quantum can deliver, Quantum 326 is based on seventh generation FPGAs with an entirely new system architecture. The console merges tried and tested workflows with immense processing muscle and bold innovation including a striking new dark mode.
- 128 Input Channels
- 64 Aux / Sub-Group Busses
- LR/LCR/LCRS/5.1 Master Buss
- 24 x 24 Full Processing Matrix
- 286 Dynamic Equalizers
- 64 Nodal Processing instances

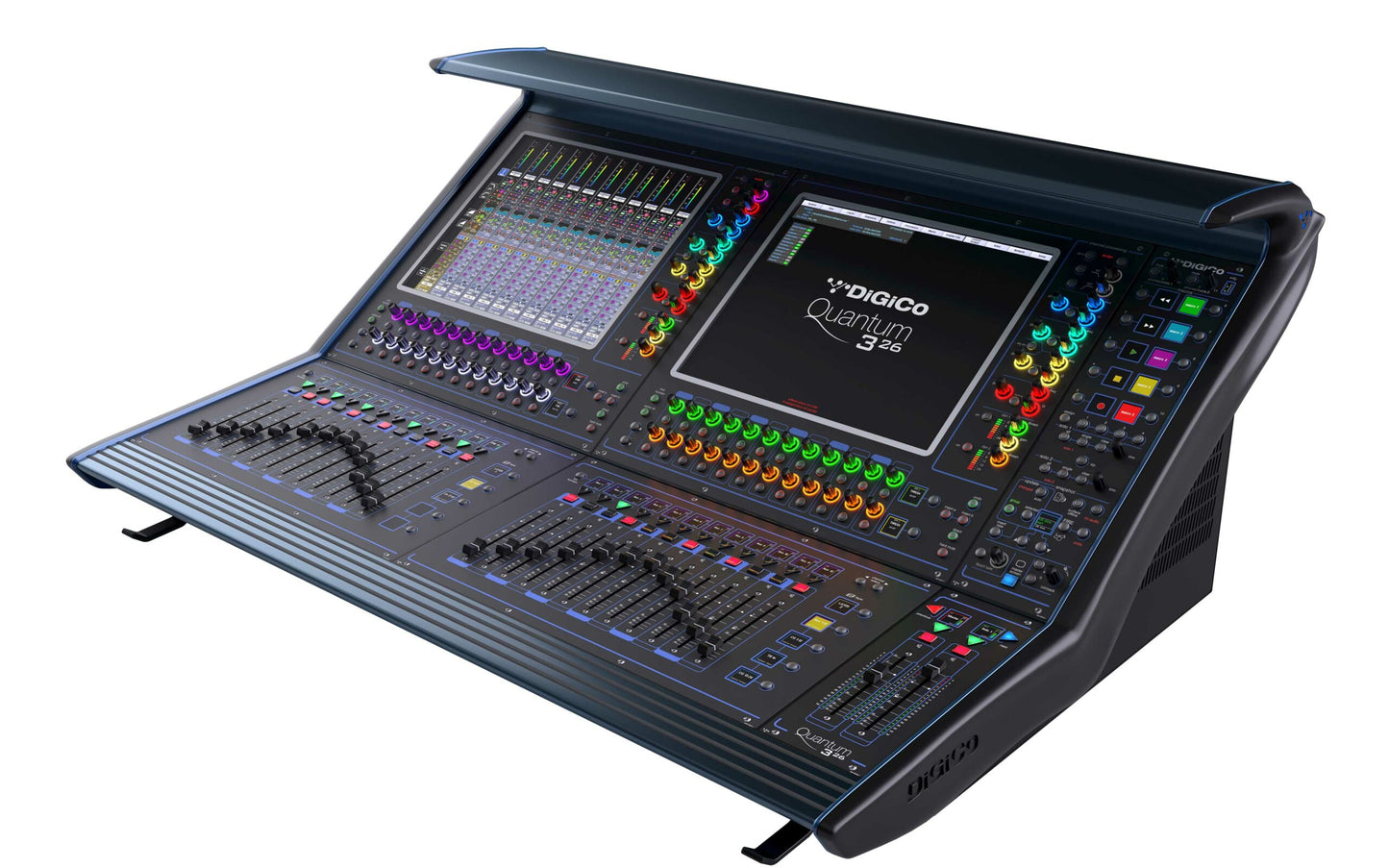

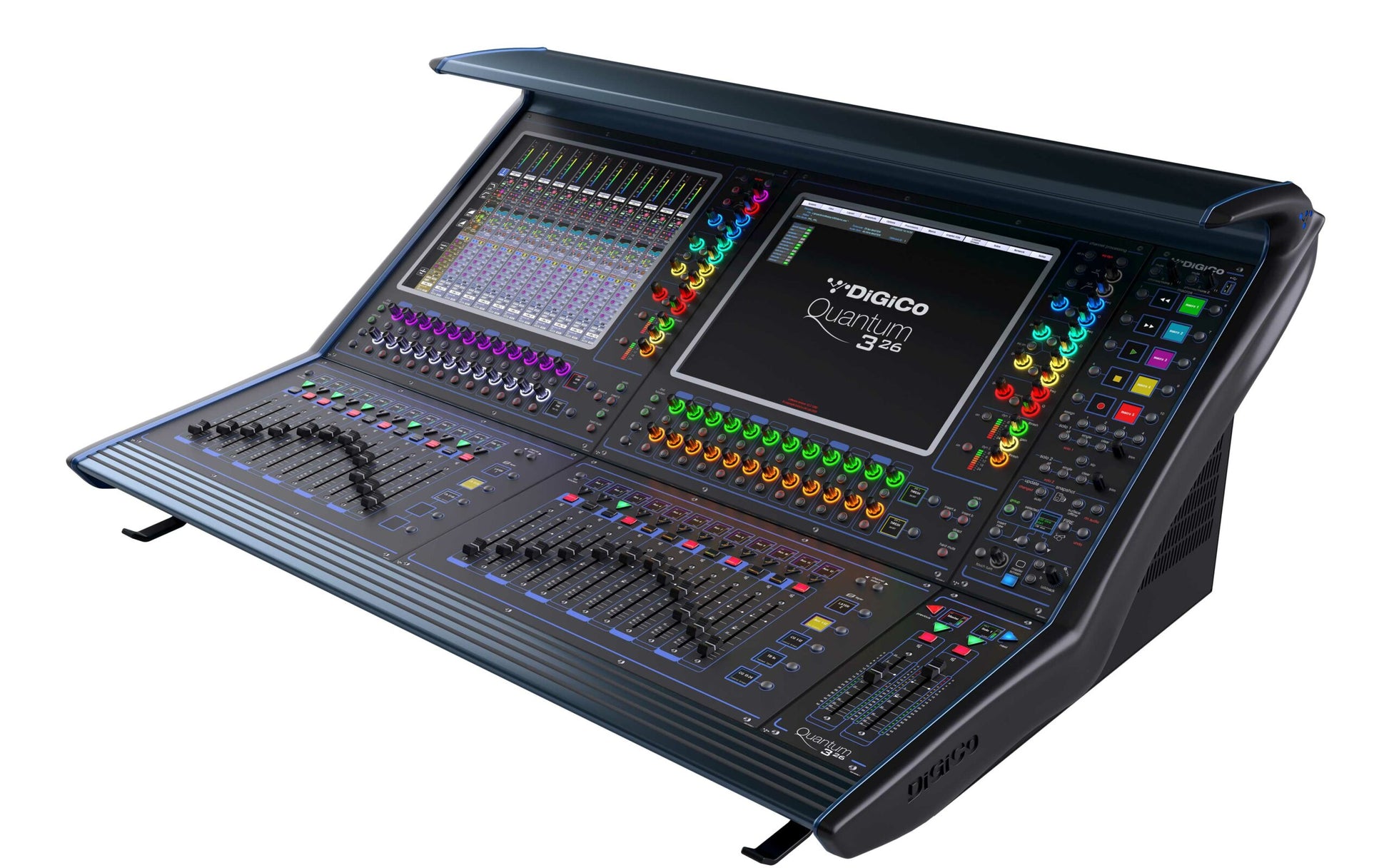

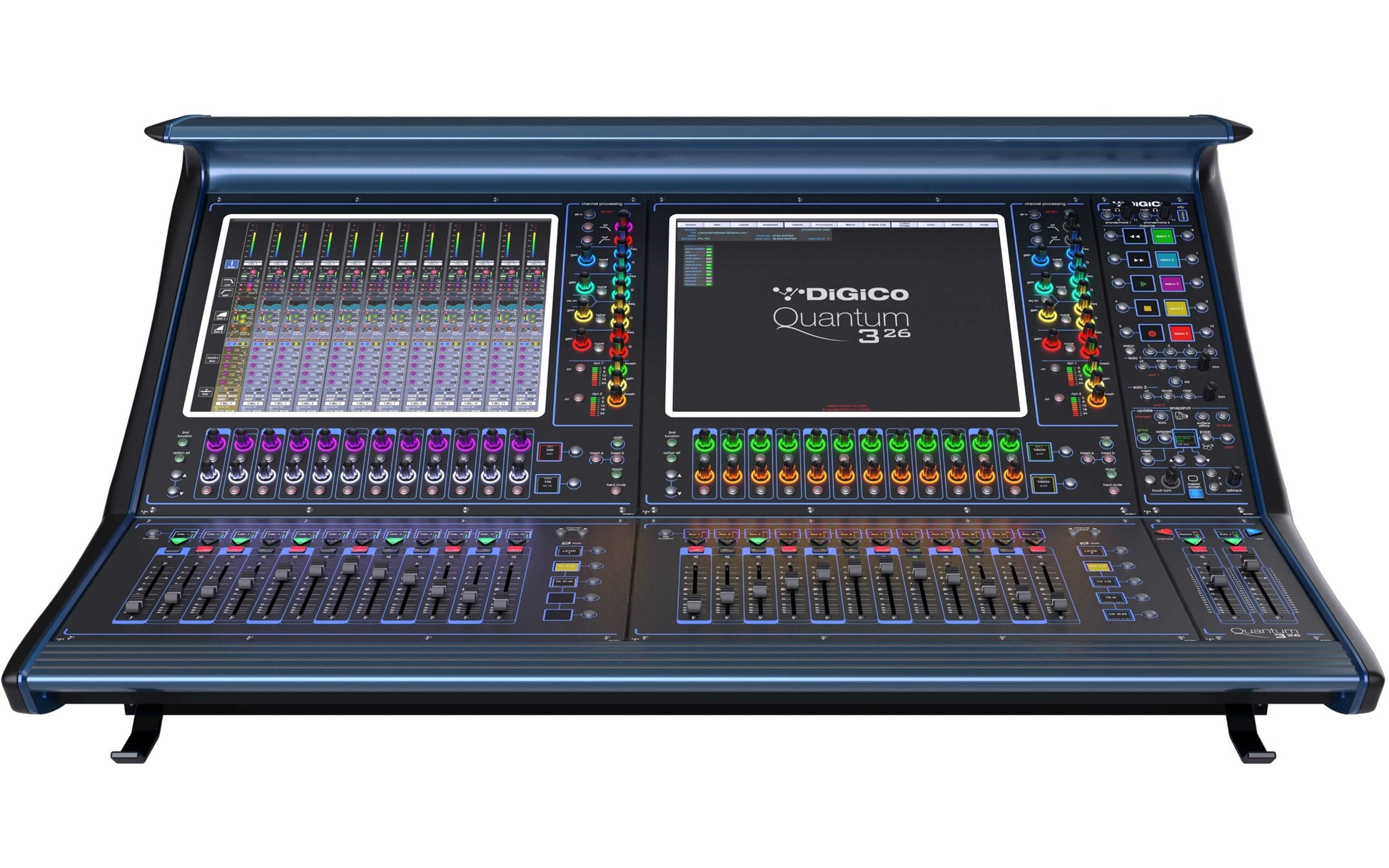

Quantum 326 puts a duo of 17-inch, 1000 nit, high brightness multitouch screens at your disposal, with both the meter bridge and soft quick select buttons displayed on each screen for quick, intuitive operation. In addition, 51 individual TFT channel displays join the floating Quantum chassis with 26 100mm touch sensitive faders laid out in two blocks of 12 fader banks plus two dedicated user-assignable faders, each with high resolution metering.

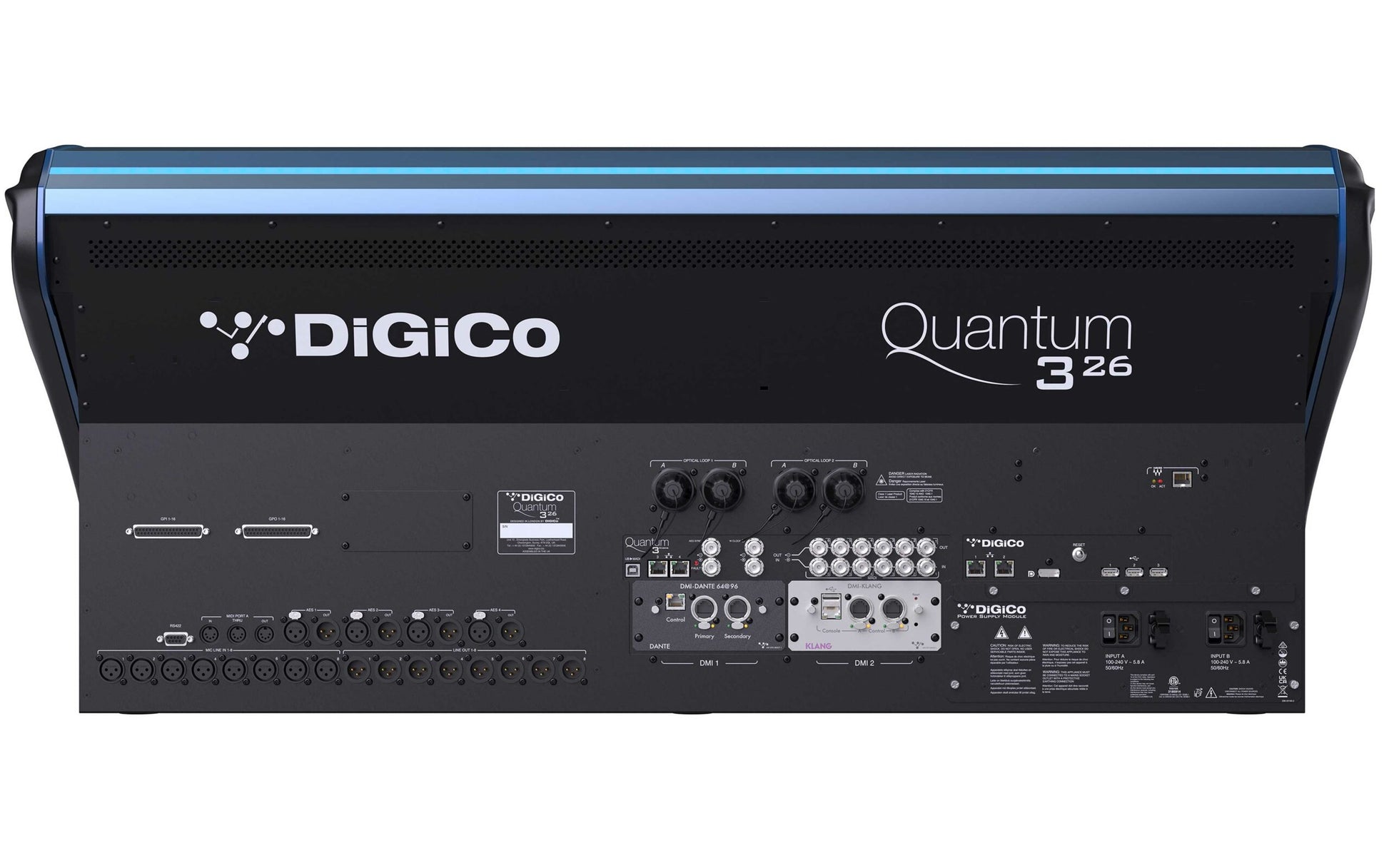

Superior local audio connectivity and performance comes courtesy of new “Ultimate Stadius” 32-bit ADC and DAC conversion, which is built into the Quantum 326 as standard alongside six single or three redundant MADI connections, dual DMI slots and a built-in UB MADI USB recording interface.
Also included as standard are Mustard Processing channel strips, Spice Rack plugin style native FPGA processing options, Nodal Processing and True Solo.
