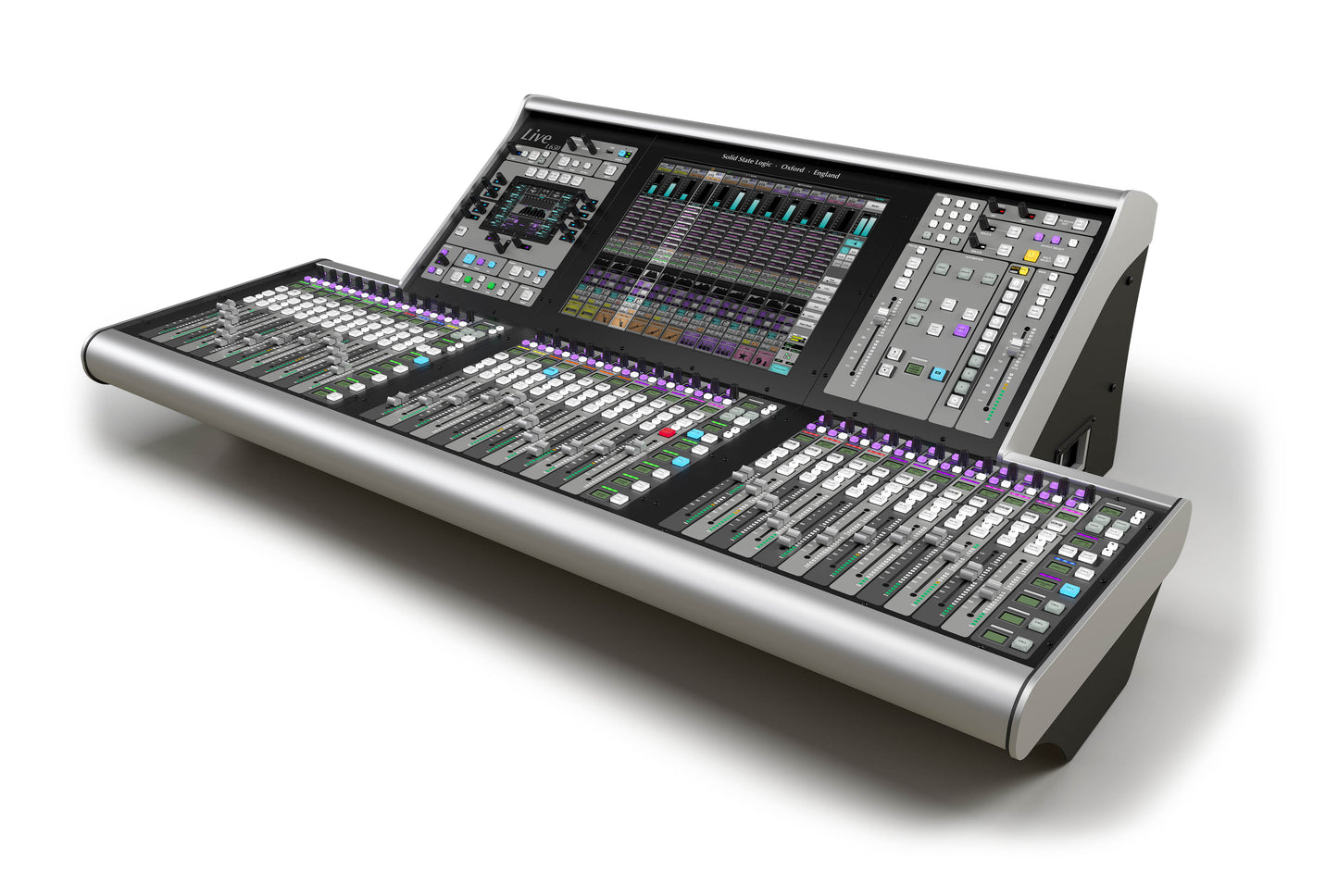

SSL L650 Live Console

The L650 combines patented next-generation OCP technology with advanced AoIP to deliver exceptional live mixing. It utilises triple-wide fader banks to provide the quickest access to 36 faders.

The console is equipped with a 19-inch multi-touch screen providing seamless control, handling 856 inputs and outputs, with 312 mix paths running at 96kHz.

The 32 input/36 output matrix further provides options for complex audio set-ups.

Also, with the L650 a tablet can be used to bring additional touch screen control over Channel processing and Effects Rack

Features:

• 312 Paths
• 312 Input Channels
• 96 Stem Groups
• 210 Auxes
• 32 Masters
• 4 x 32 inputs / 36 outputs Matrix
• 48 VCAs
• 96 FX Slots
• 96kHz or 48kHz Sample Rate
• 16 mic/line, 16 line out, 2x headphone- Local Analogue I/O
• 4 Pairs (with SRC)- Local AES/EBU I/O
• 6 Coax, 2 Optical MADI Ports
• Optical in/out x 1- MADI FX Loop
• 1 Redundant Pair- SSL Blacklight II
• 1 Optical Redundant Pair- SSL X-Light
• Opt. 32x32 Redundant Pair- Local DANTE @ 96kHz
• Up to 856 in/out- Maximum I/O @ 96kHz
