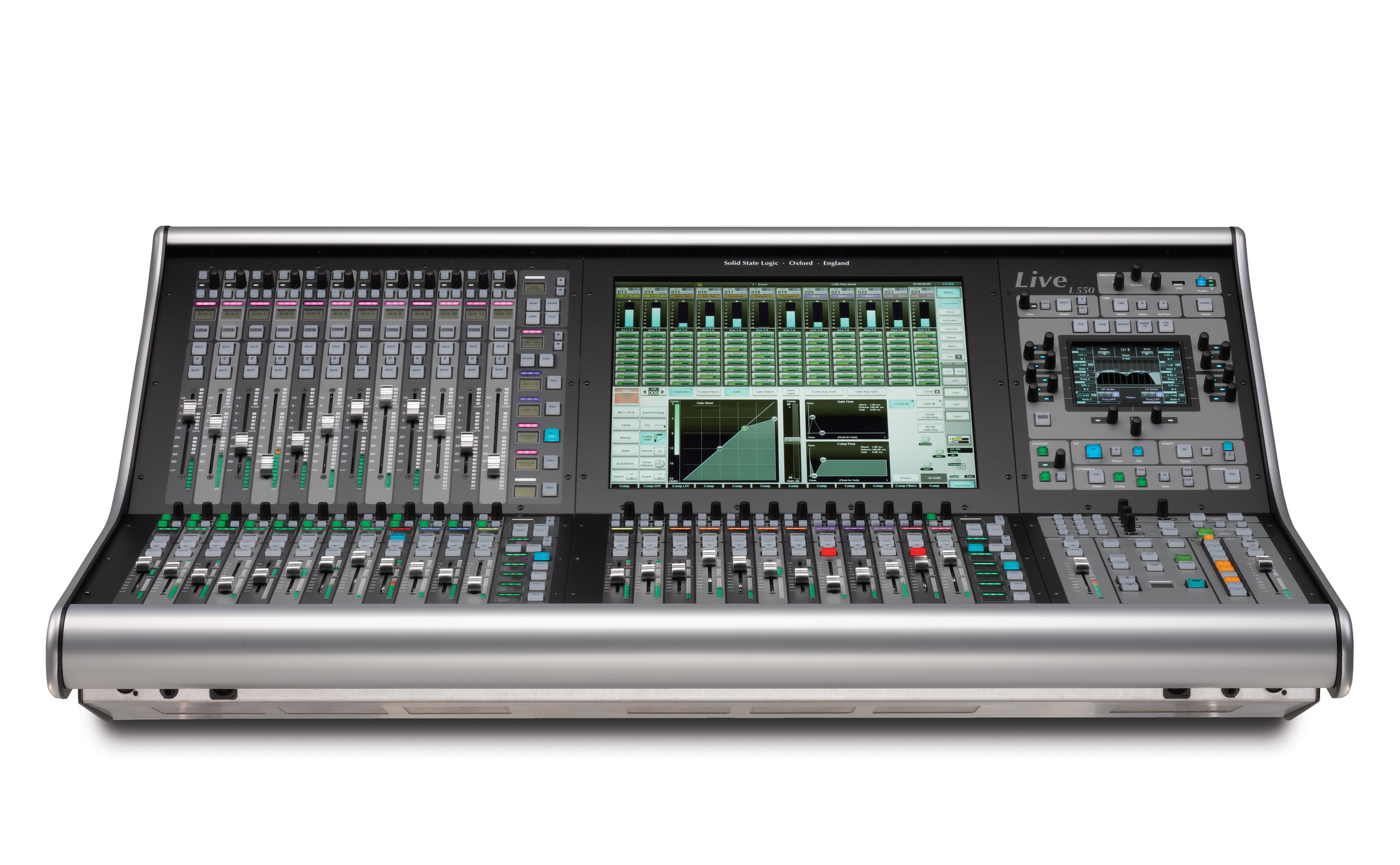

SSL L550 Plus Live Console
The L550 Plus features a 19-inch multi-touch screen central to its operation, enabling seamless system and I/O configuration, surface layouts, and automation control. It supports 1136 inputs and outputs and delivers 288 mix paths at 96 kHz with full processing power.

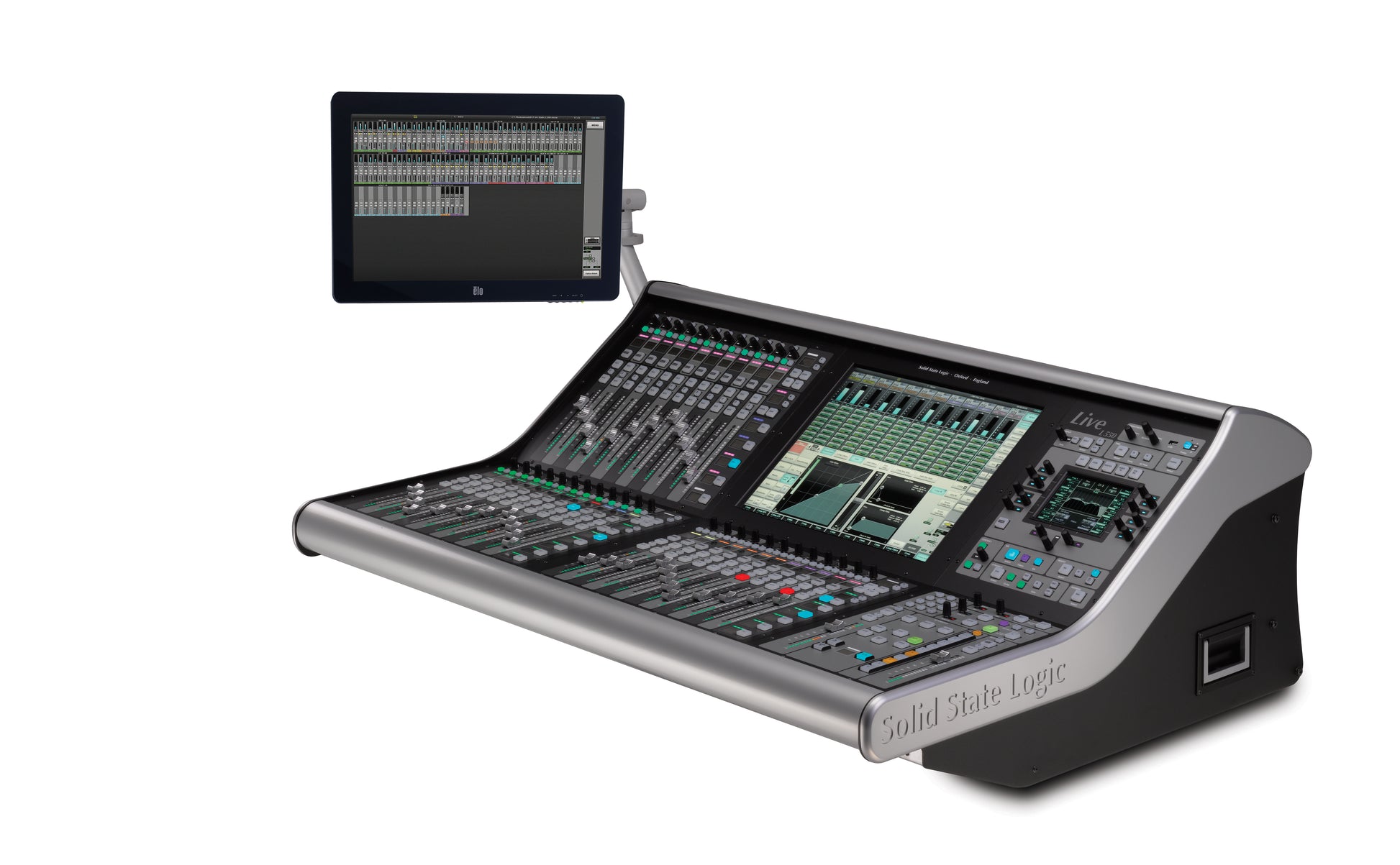

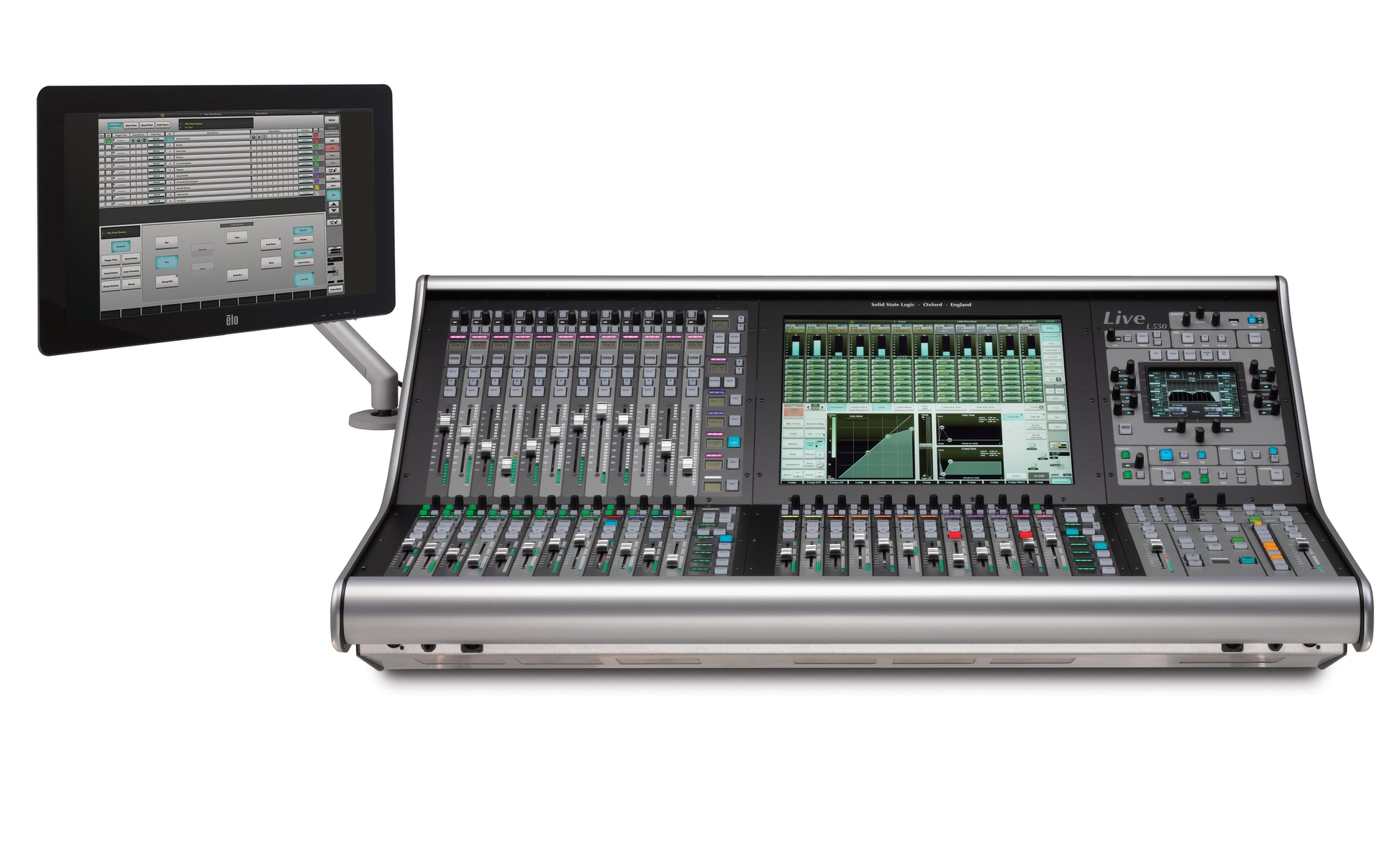

The console has a 32 x 36 output matrix ensuring versatile routing option. Also, with the L550 Plus a tablet can be used to bring additional touch screen control over Channel Processing and Effects Rack.
Features:
- 288 Paths
- 288 Input Channels with full processing
- 84 Stem Groups
- 204 Auxes
- 30 Masters
- 4 x 32 Inputs / 36 Outputs Matrix
- 48 VCAs
- 96 FX Slots
- 96kHz or 48kHz- Sample Rate
- 32 mic/line, 32 line out, 2x headphone- Local Analogue I/O
- 8 Pairs (with SRC)- Local AES/EBU I/O
- 12 Coax, 4 Optical MADI Ports
- Optical in/out x 1- MADI FX Loop
- 1 Optional Redundant Pair- SSL Blacklight II
- 1 Optional Redundant Pair- SSL X-Light
- Opt. 32x32 Redundant Pair- Local DANTE @ 96 kHz
- Up to 1136 in/out- Maximum I/O @ 96kHz
