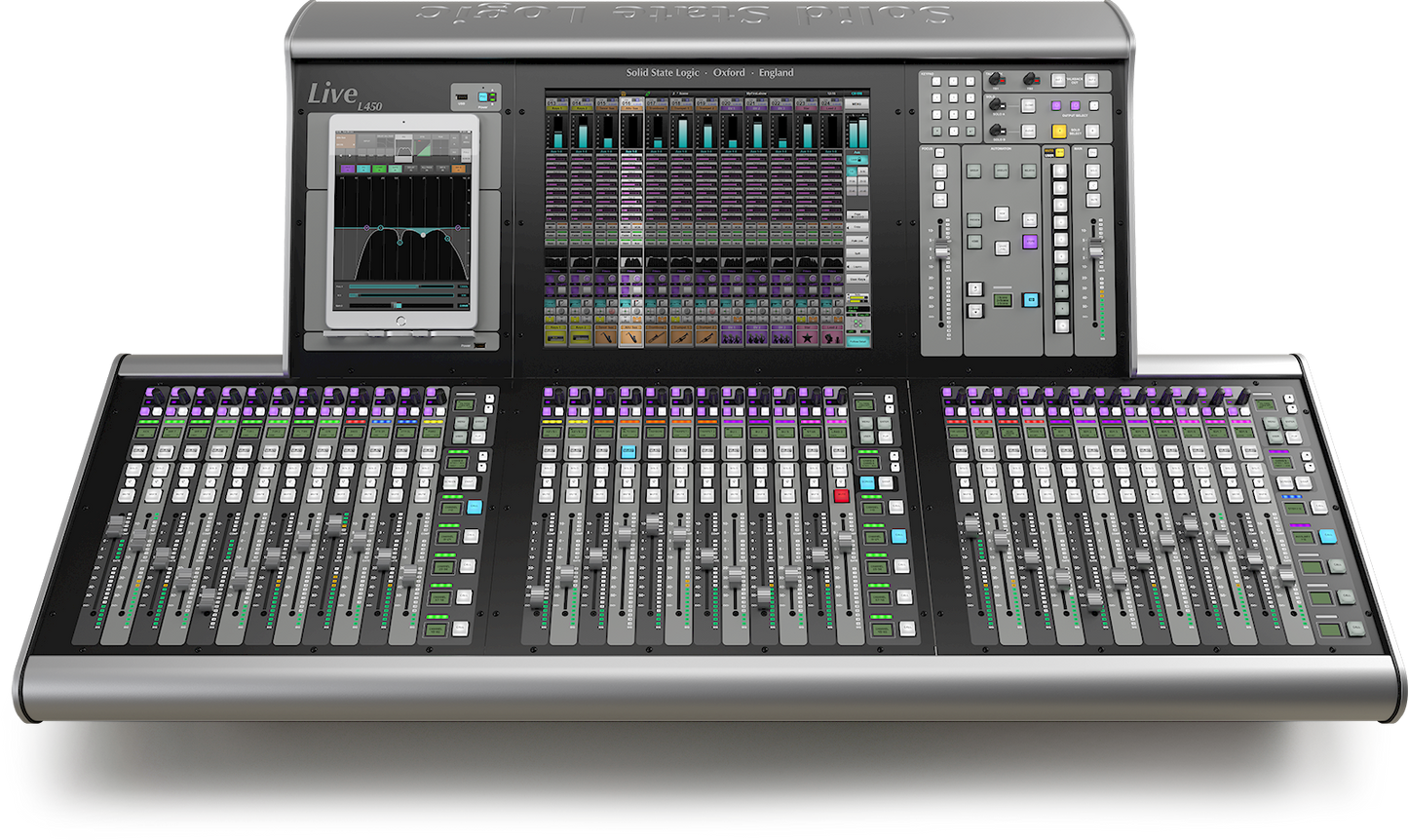

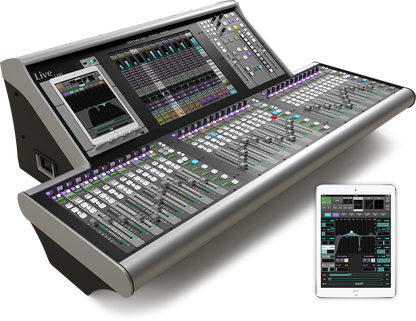

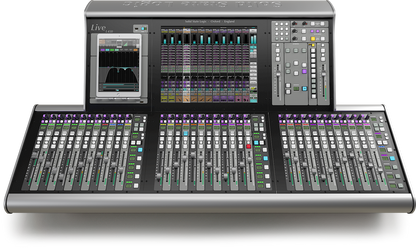

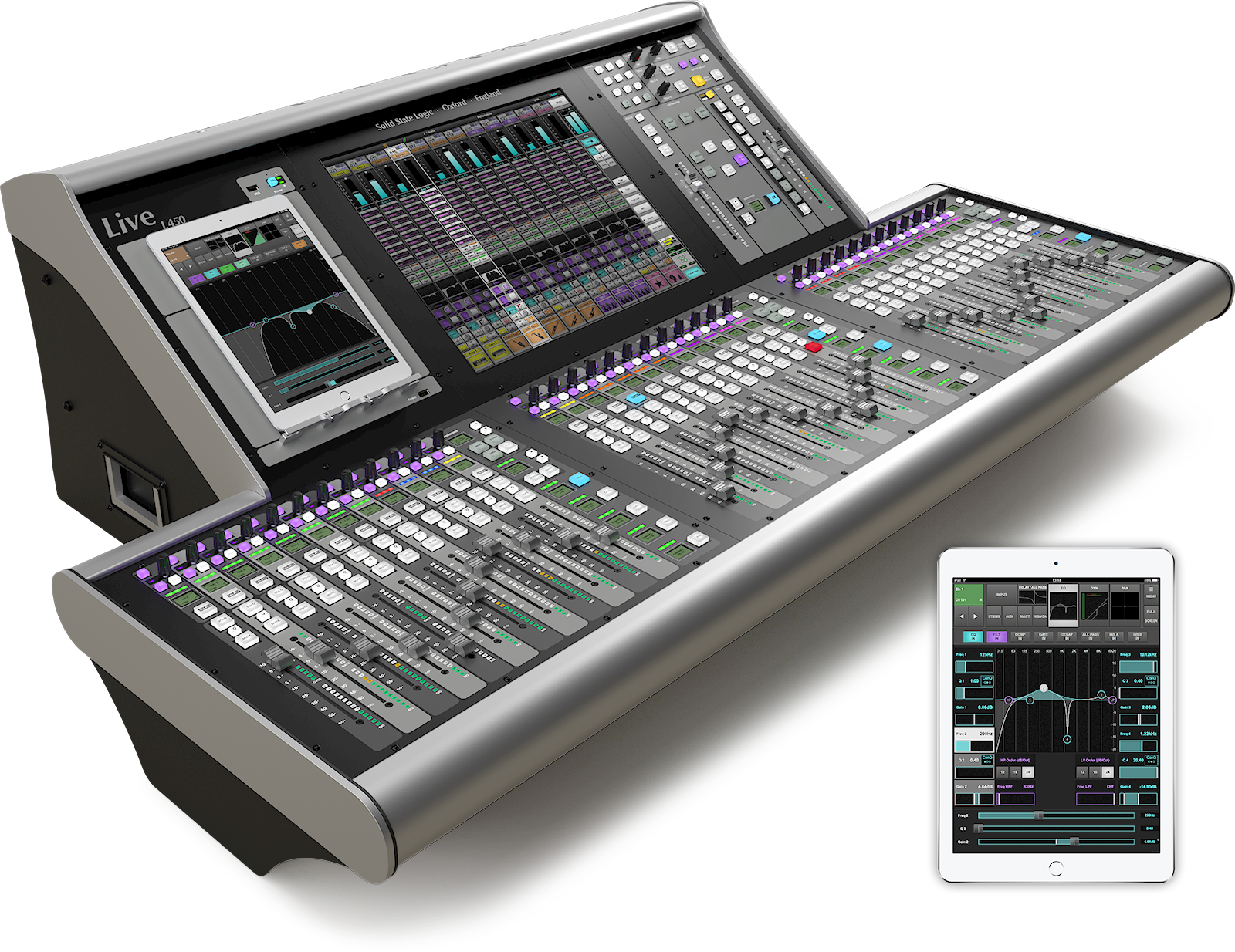

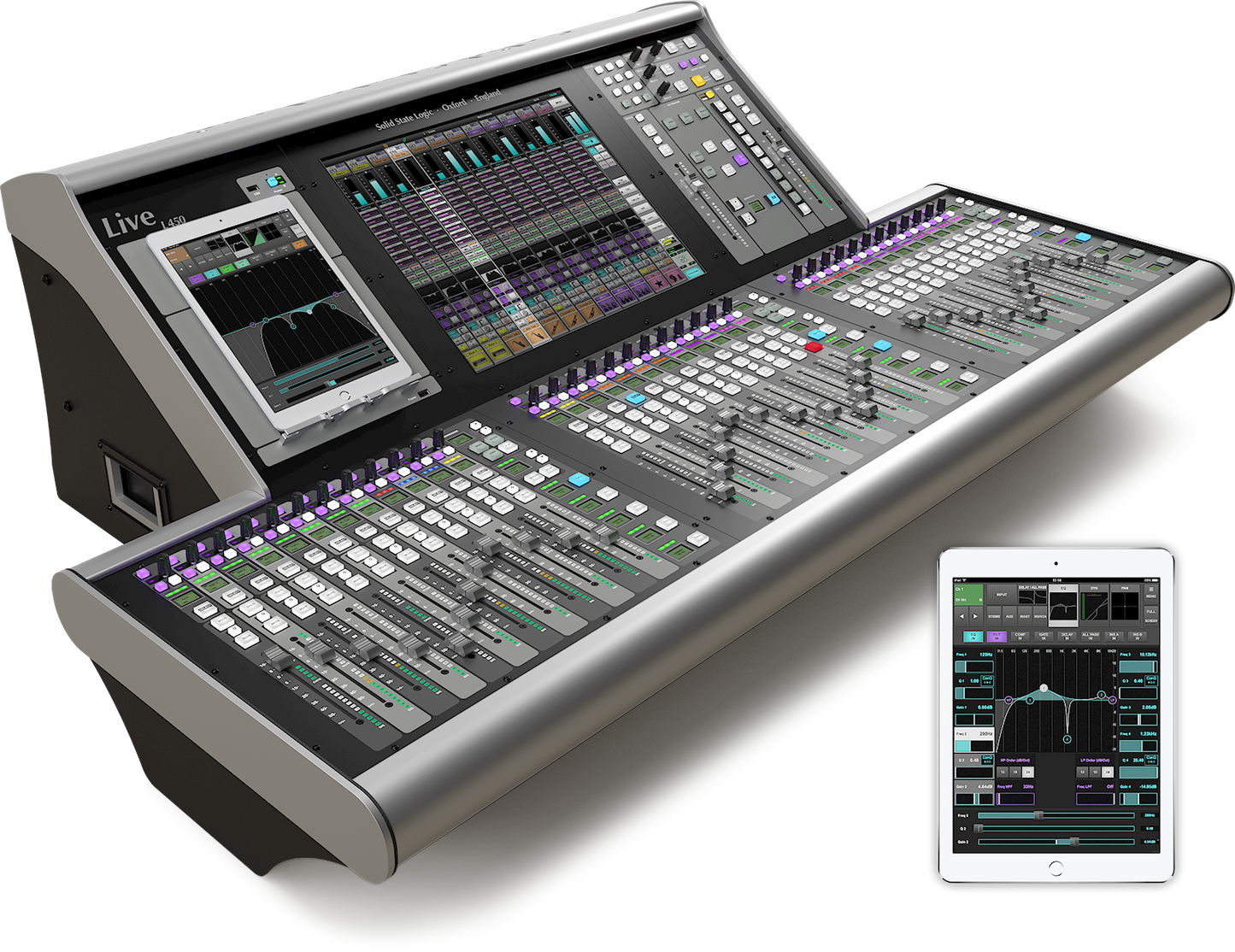

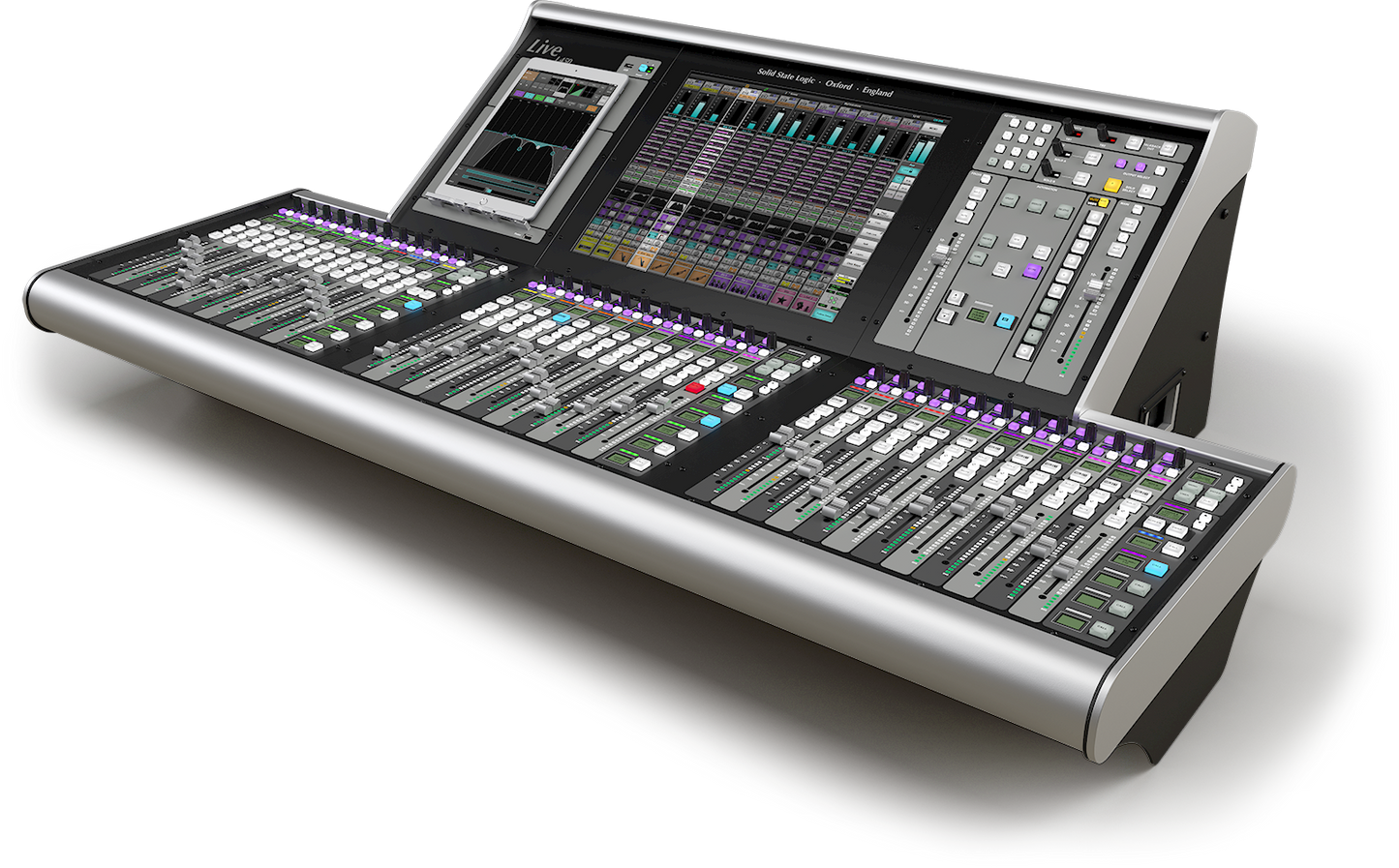

SSL L450 Live Console

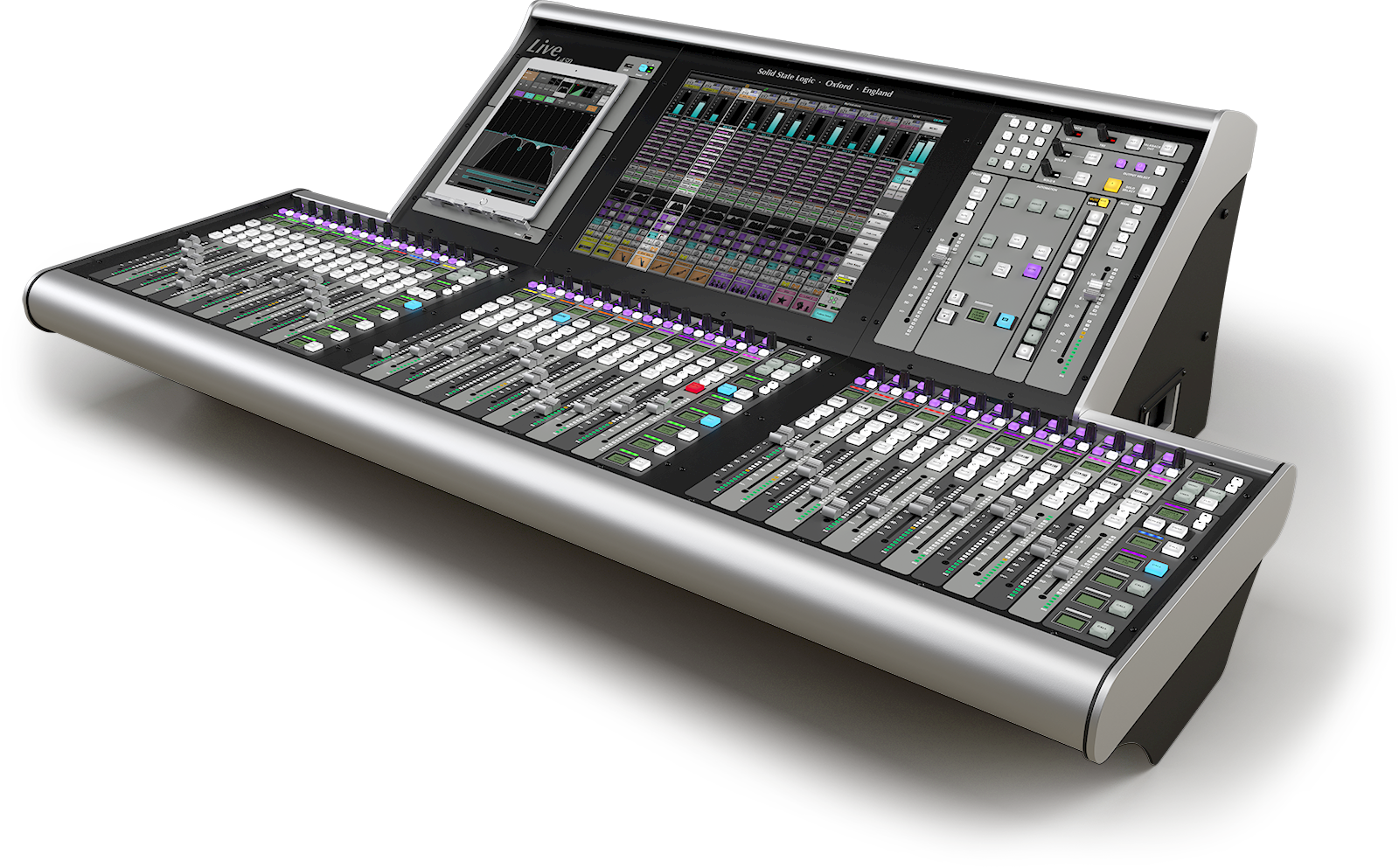

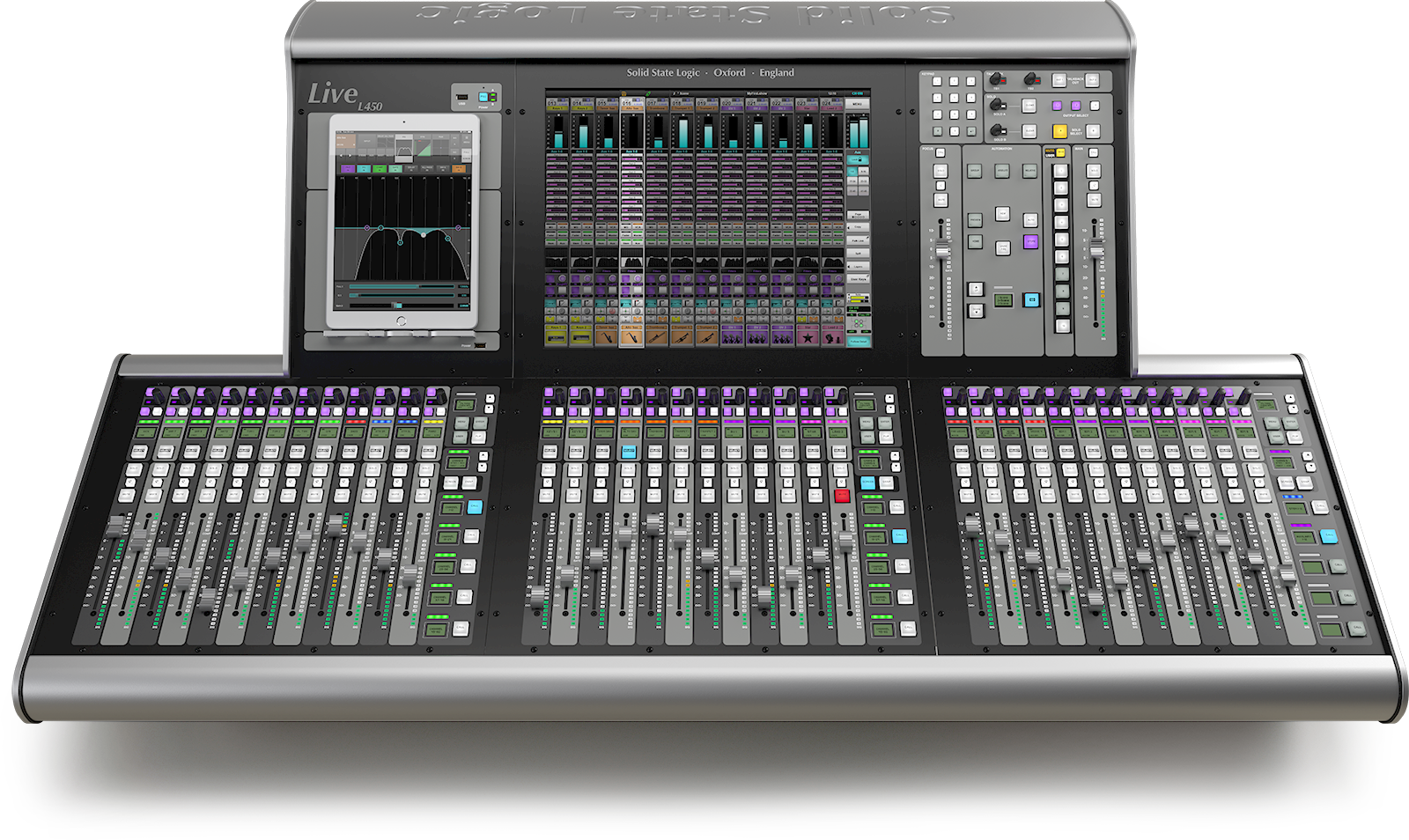

The L450 features a 19-inch high-resolution multi-touch screen with exceptional brightness, ensuring clear visibility. Its triple-wide fader tile includes cutaways designed to connect with external screens.

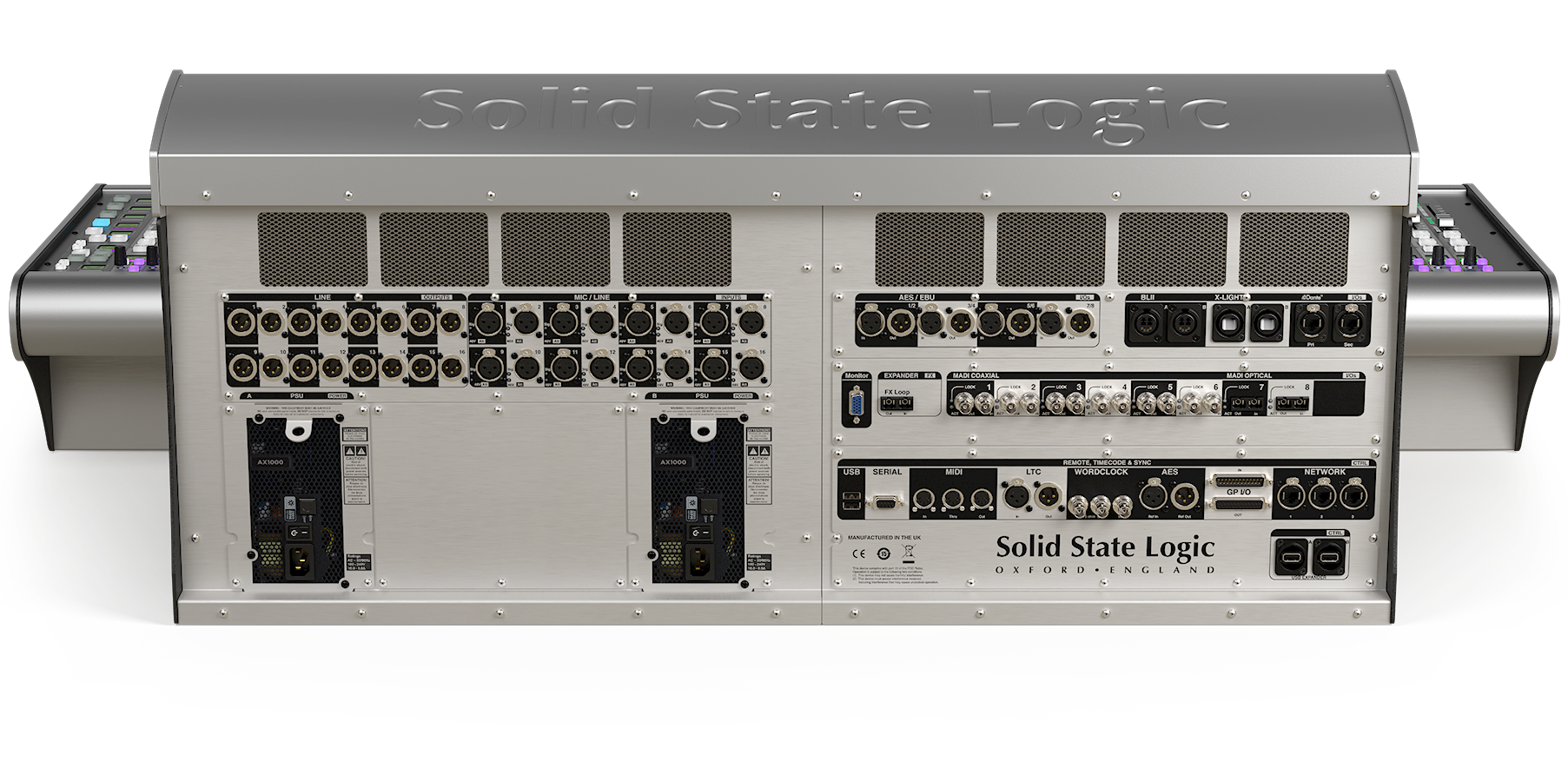

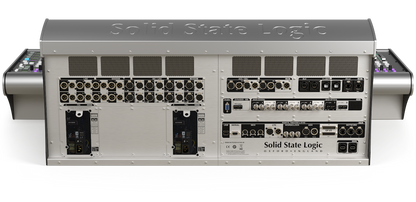

The console delivers extensive connectivity through its 856 inputs and outputs, while 240 mix paths operate at 96 kHz.

The 32-input/36-output matrix includes high- and low-pass filters, a four-band EQ, and two second delay.

Features:

• 240 Paths
• 240 Input Channels
• 60 Stem Groups
• 156 Auxes
• 24 Masters
• 4 x 32 Inputs / 36 Outputs Matrix
• 36 VCAs
• 60 FX Slots
• 96kHz or 48kHz- Sample Rate

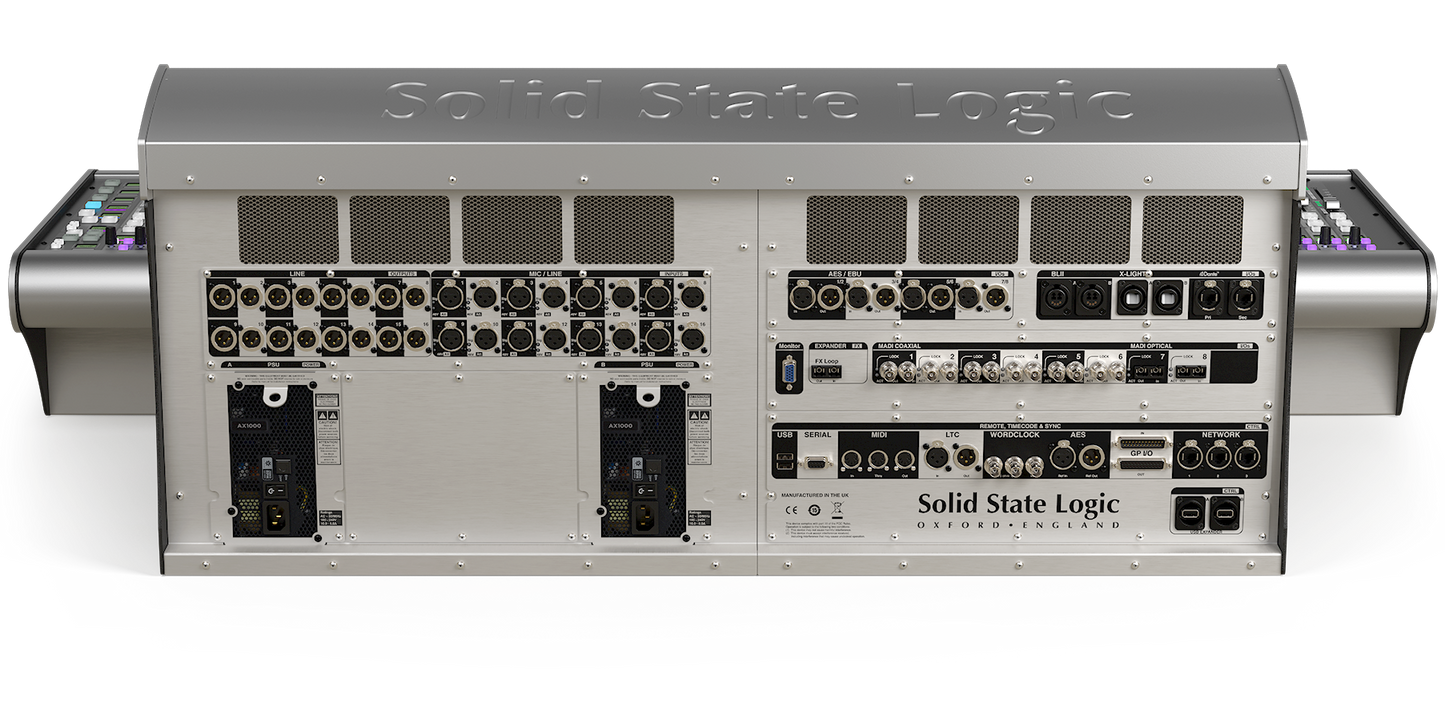

• 16 mic/line, 16 line out, 2x headphone- Local Analogue I/O
• 4 Pairs (with SRC)- Local AES/EBU I/O
• 6 Coax, 2 Optical MADI Ports
• Optical in/out x1- MADI FX Loop
• 1 Redundant Pair- SSL Blacklight II
• 1 Optional Redundant Pair- SSL X-Light
• Opt. 32x32 Redundant Pair- Local DANTE @ 96kHz
• Up to 856 in/out- Maximum I/O @ 96kHz
