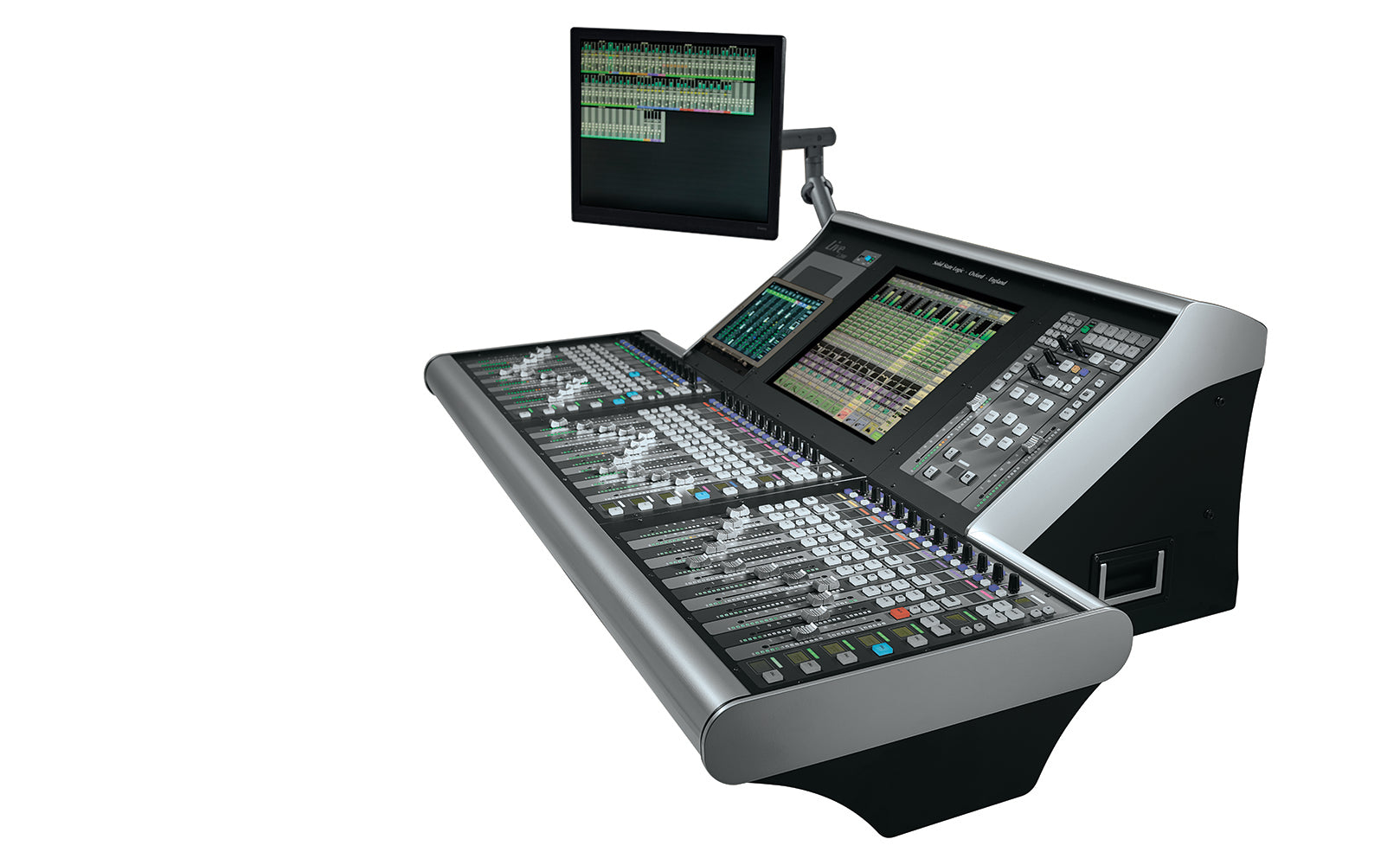

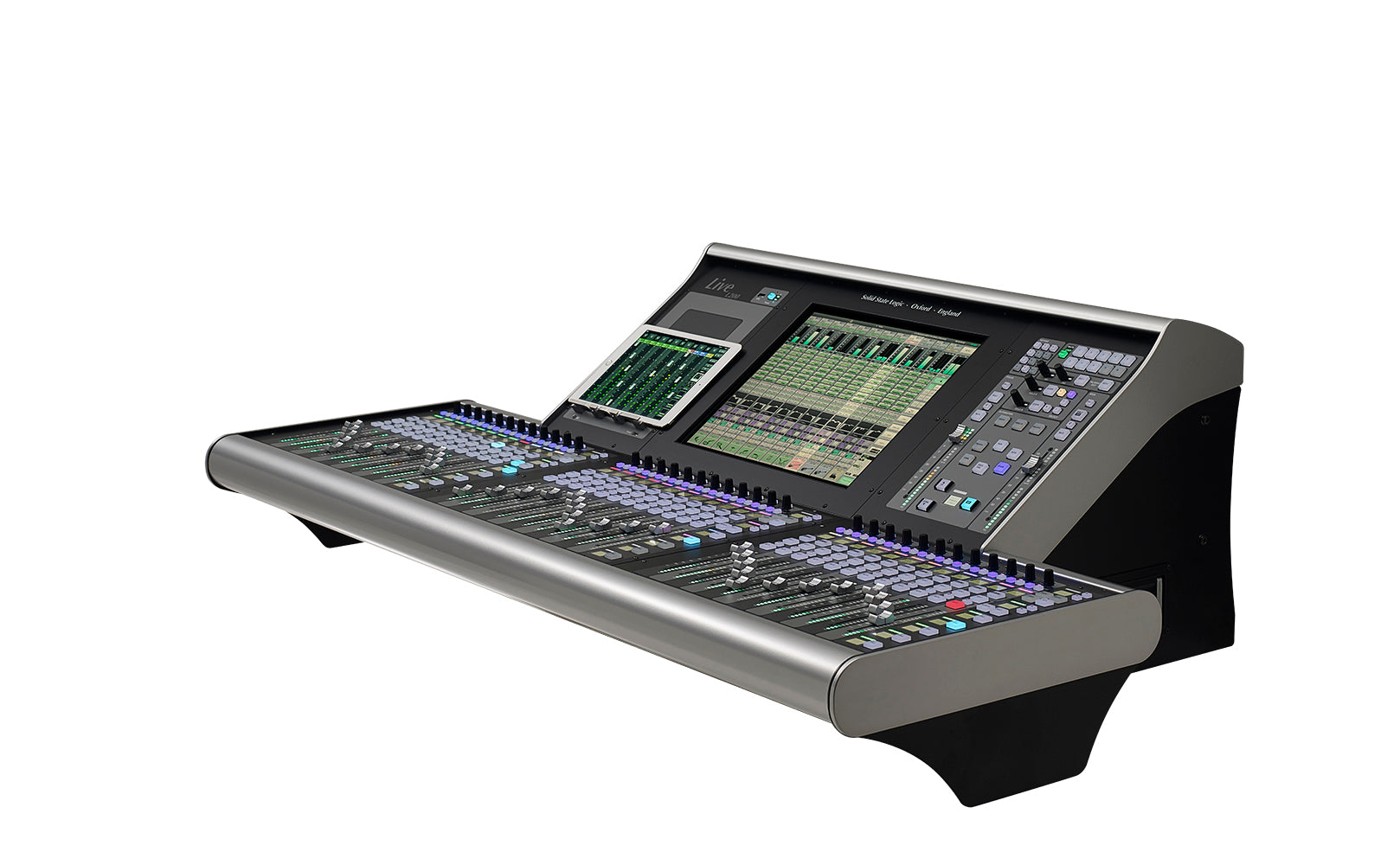

SSL L200 Plus Live Console

The L200 Plus uses advanced OCP technology to deliver enhanced DSP allocation and adaptable I/O configurations.

The console supports up to 600 inputs and outputs, with 144 mix fully processed paths operating at 96kHz.

Features:

• 144 Paths
• 144 Input Channels
• 36 Stem Groups
• 84 Auxes
• 8 Master
• 4 32 Inputs/ 24 Outputs Matrix
• 24 VCAs
• 48 FX Slots
• 96kHz or 48kHz- Sample Rate
• 12 mic/line, 2 TB, 3.5mm input, 12 line out, 2x headphone- Local Analogue I/O
• 4 Pairs (with SRC)- Local AES/EBU I/O
• 6 Coax, 2 Optical MADI Ports
• Optical in/out x 1- MADI FX Loop
• 1 Redundant Pair (Usage restricted to Blacklight II)- SSL Blacklight II
• 1 Optional Redundant Pair (Usage restricted to SSL X-Light)- SSL X-Light
• Opt. 32x32 Redundant Pair- Local DANTE @ 96kHz
• Up to 600 input- Maximum I/O @ 96kHz
