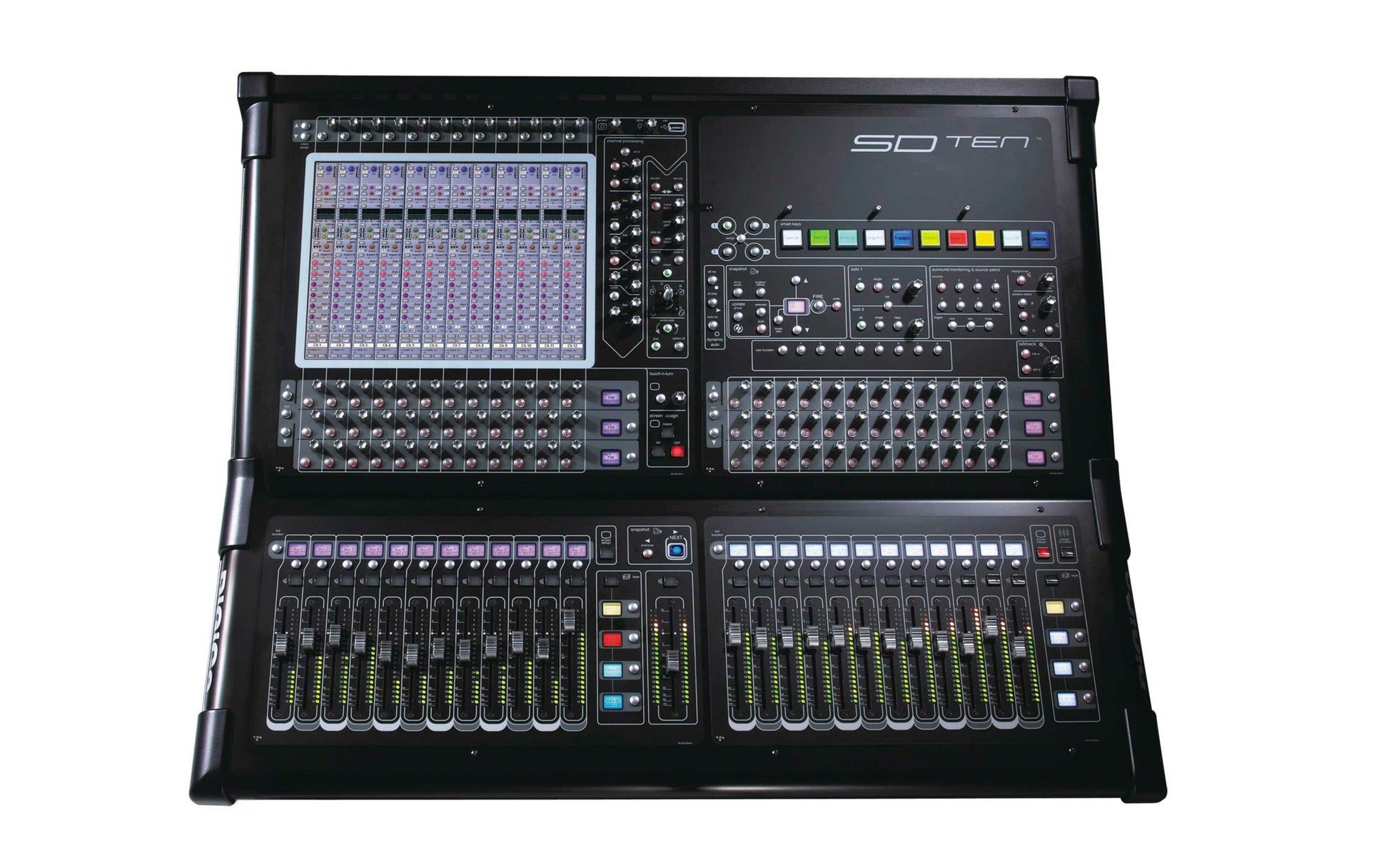

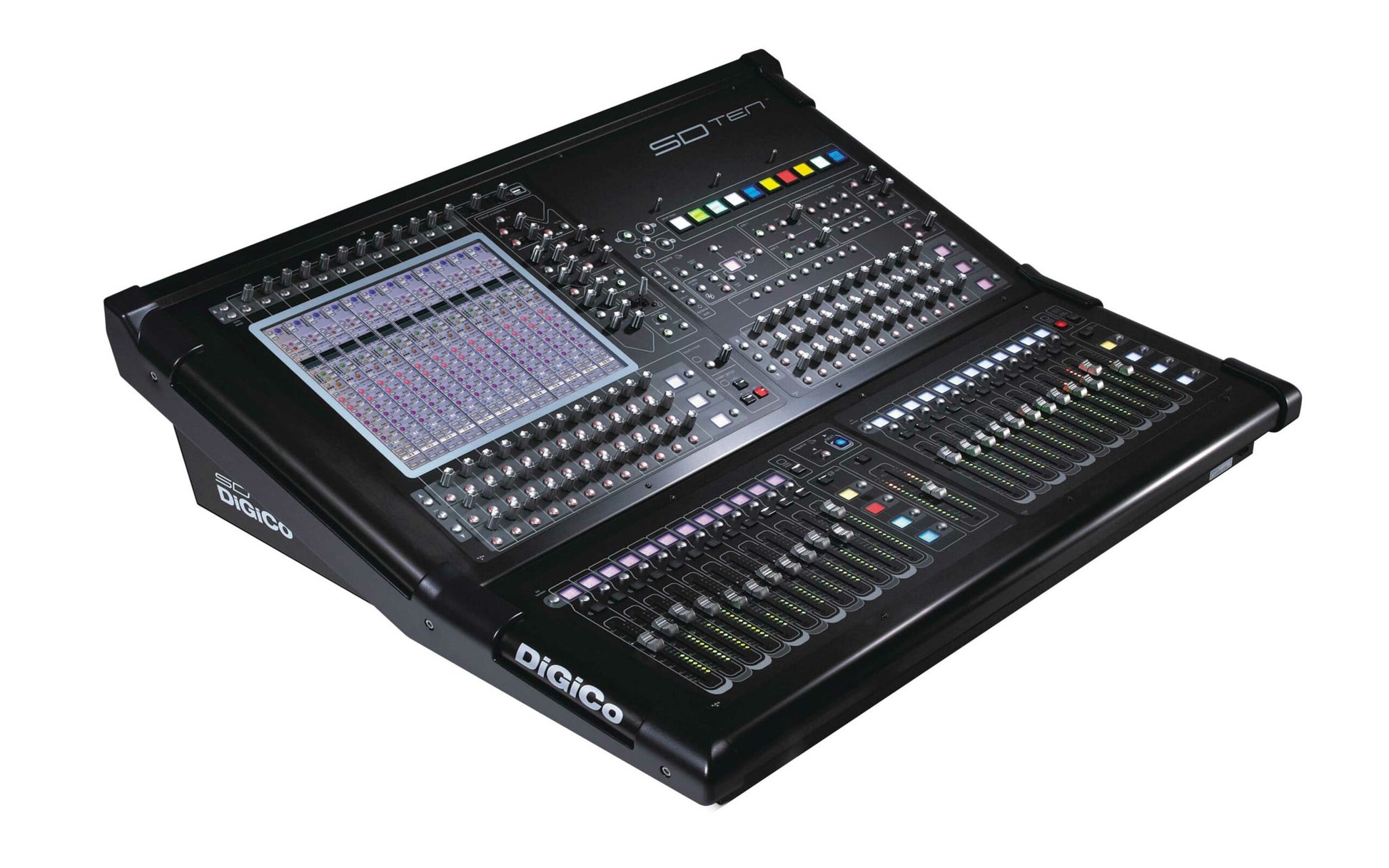

DiGiCo SD10-24 Compact 144-Input Digital Mixing Console
The SD10-24 features Stealth Digital Processing and floating-point Super FPGA technology. It offers a smaller frame with two banks of 12 motorised faders plus a master fader, maintaining the full power of the larger SD10.
The console includes a 15-inch backlit, colour-keyed TFT touch screen, 40 Smart Key Macros, and operates at 48kHz/96kHz with 218 Dynamic EQ processors, multiband compressors, and DiGiTuBes assignable across inputs and outputs.
Additional features include 24 gangable 32-band graphic EQs, 24 stereo effects, 24 control groups, 64 busses, a 24x24 output matrix, dual solo busses, and a Master bus for flexible routing and control.
The console supports various configurations including MADI, One Multi-Mode Optics HMA and Multi-Mode Optics ST.
Features:
- 144 Input Channels
- 64 Aux / Sub-Group Busses
- LR/LCR/LCRS/5.1 Master Buss
- 24 x 24 Full Processing Matrix
- 218 Dynamic Equalizers
- 48/96kHz Sample Rate
Specifications:
- Faders 25 x 100mm Touch-Sensitive, Motorised
- Screens 1 x 15” (38cm) LCD High - Resolution Touch Screen
- Meters 26 x 20-Segment LED Bargraph
- Input Channels 132
- Busses 56 assignable that can be configured as groups / auxiliary busses + LR or LCR/LCRS/5.1 Master
- Solo Busses 2 Stereo Busses
- Matrix 24 x 24 Matrix (Additional to Busses Above)
- Control Groups 24, Selectable for VCA-style, Moving Fader, Mute Group
- Graphic EQ 24 x 32-band, Gain +/- 12dB
- Internal FX 24 Stereo FX Processors

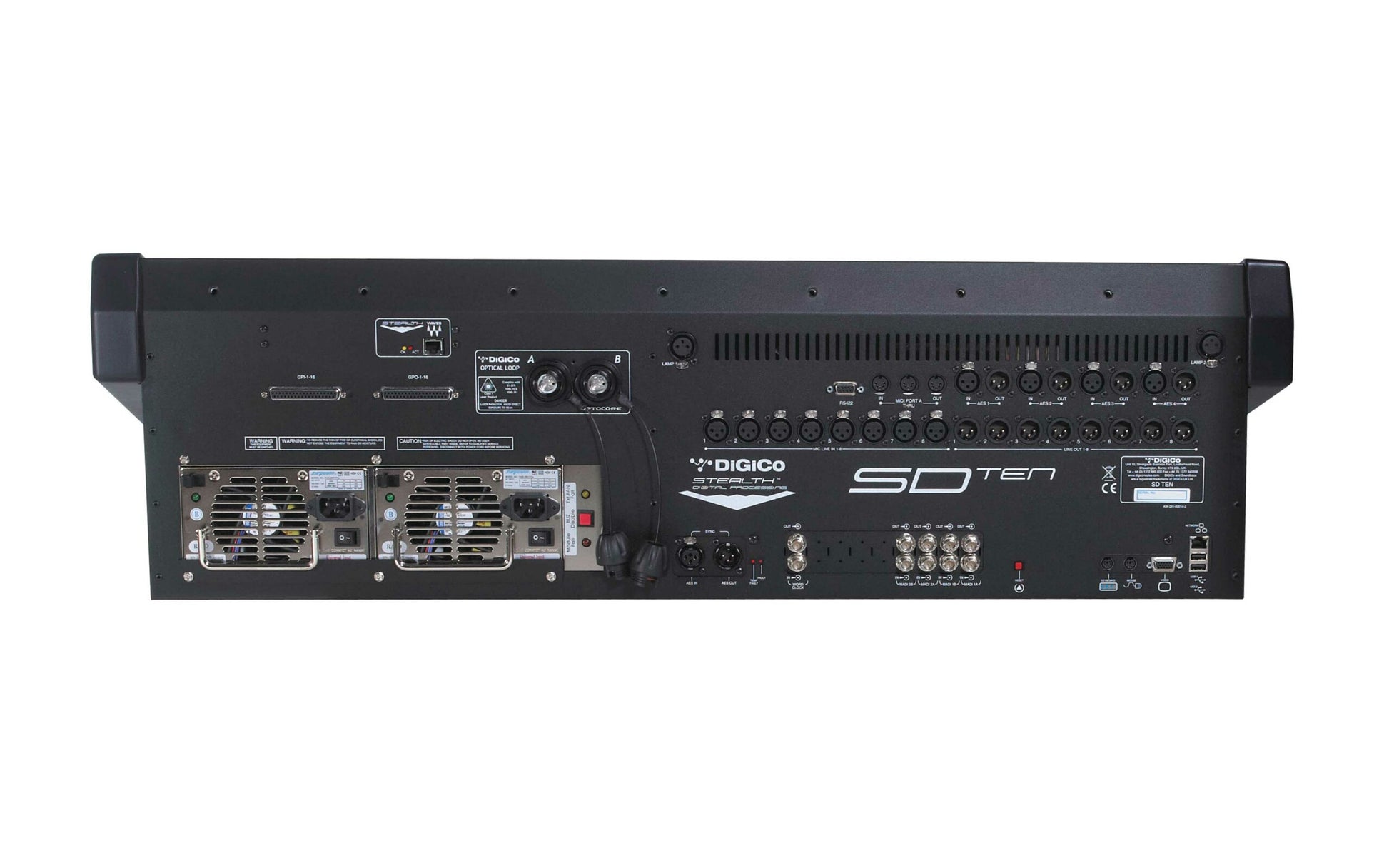

- Local I/O 8 x Mic/Line I/O, 8 x AES/EBU I/O (Mono)
- MADI Interface 2 Redundant Interfaces, 75 Ohm BNC Connectivity
- Optic Interface Optocore
- MIDI Interface In / Out / Thru
- VGA Port DB-15 Mini-Female (1024 x 768 Resolution)
- USB Ports (3) USB 2
- Light Connection (2) XLR3 1.2 – 12V
- Ext Sync Word Clock, AES, MADI, Optics
- Headphone TRS Unbalanced / 8-600 Ohms 1/4 Inch Jack
- SD10-24 Dimensions 982mm (w) x 799mm (d) x 286mm (h)
- SD10-24 Weight 45Kg/ 99.20lbs (140Kg/ 308.64lbs with Optional Flightcase)
- SD10-24 Flightcase 1170mm (w) x 1158mm (h) x 498mm (d) Weight 95kg/ 209.43lbs (Optional)
- SD10-24 Power Requirements 90-264 VAC, 47-63Hz Auto Sensing. 235 watts
