Sennheiser EW-DX EM 2 DANTE Receiver

The EW-DX EM 2 DANTE is a two-channel digital receiver. This half-rack (9.5") integrates Dante networking for seamless AV over IP integration with Evolution Wireless Digital transmitters, handheld, bodypack, and table stand models.

The receiver includes 88 MHz switching bandwidth enabling up to 293 intermodulation-free channels with equidistant spacing, AES 256 encryption for secure transmission, and redundant power delivery via Power over Ethernet.

The receiver supports 12-hour battery operation for mobile deployments.

Features:

• Two-channel digital half rack (9.5") with Dante® in rugged metal housing
• Up to 88 MHz switching bandwidth

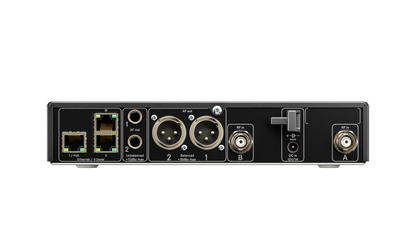

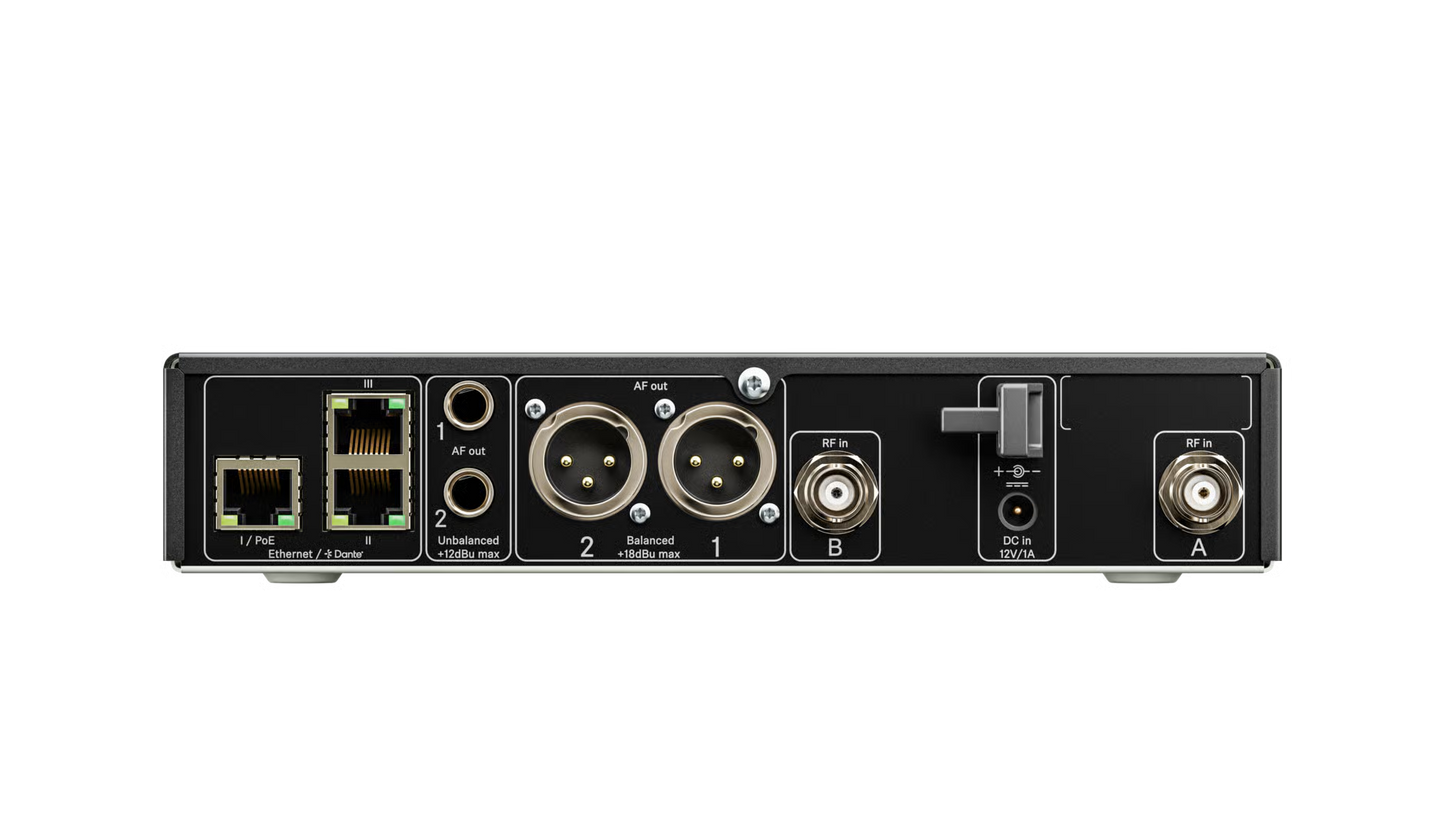

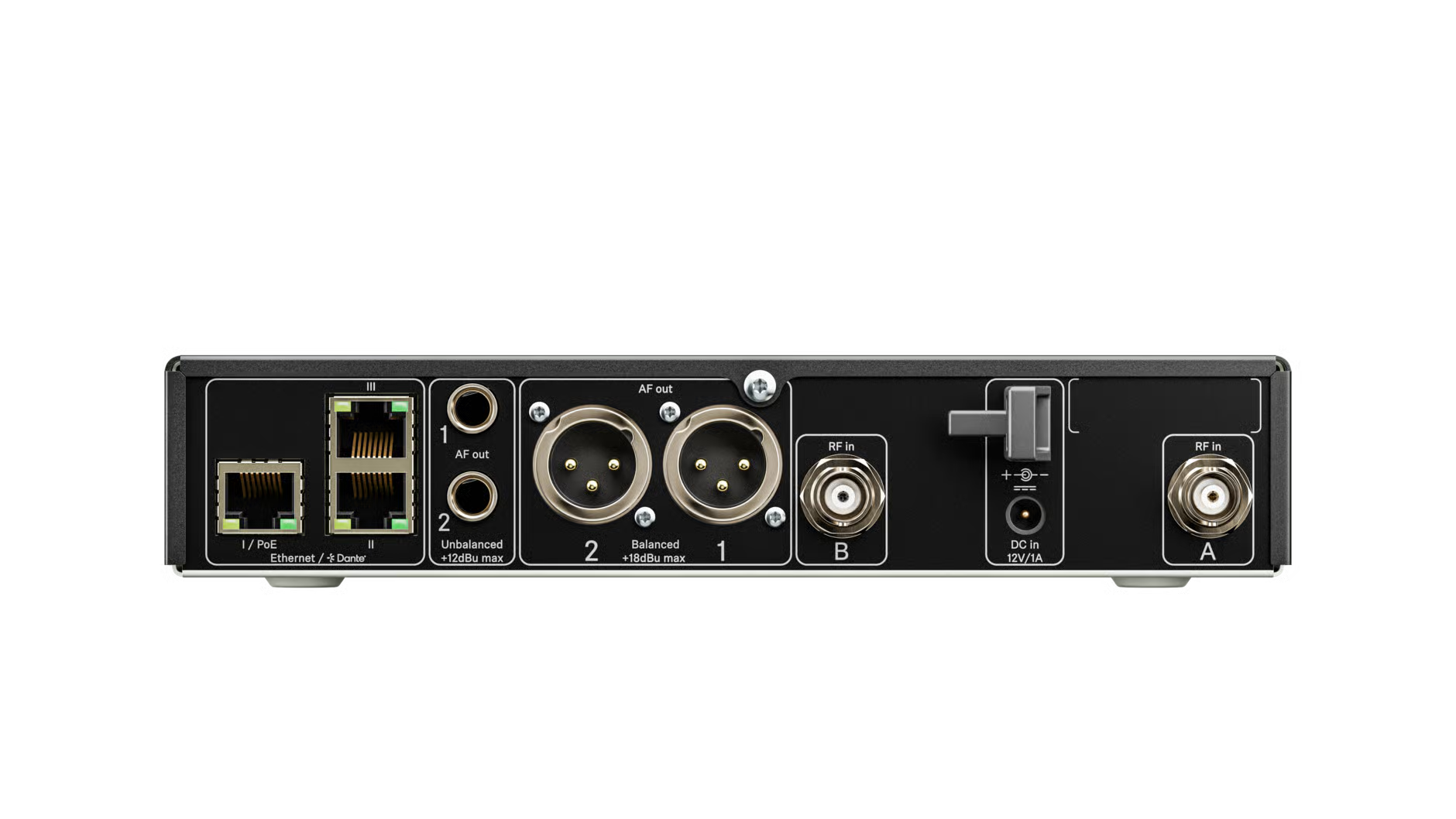

• Flexible network modes: single cable (Control, Dante®, PoE), split mode (Control + PoE and Dante® daisy chain), redundancy mode (Control + PoE, Dante® Prim, Dante® Sec)
• Low latency of 1.9 ms wireless transmission thanks to proprietary Sennheiser Performance Audio Codec (SePAC)
• 134 dB input dynamic range - no need to set gain on your wireless transmitters at all, thanks to proprietary Sennheiser Performance Audio Codec (SePAC)
• Equidistant channel spacing to easily allocate intermodulation-free channels: Standard Mode with 600 kHz spacing for up to 146 channels; Link Density (LD) Mode with 300 kHz spacing for up to 293 channels
• Network enabled for expanded remote control with Sennheiser Control Cockpit, Wireless System Manager and 3rd party media control systems via plug-in
• Power over Ethernet (PoE IEEE 802.3af Class 3)
• Ethernet connectivity (IPv4 and IPv6)
• Secure transmission of confidential content using AES 256 encryption
• AutoScan-feature quickly scans your environment and deploys frequencies with equidistant channel spacing - even without RF knowledge
• Link Quality Indicator (LQI) showing the quality of the links separate to the RF levels
• Remote control via Smart Assist App over Bluetooth® Low Energy (BLE) at distances up to 25 meters

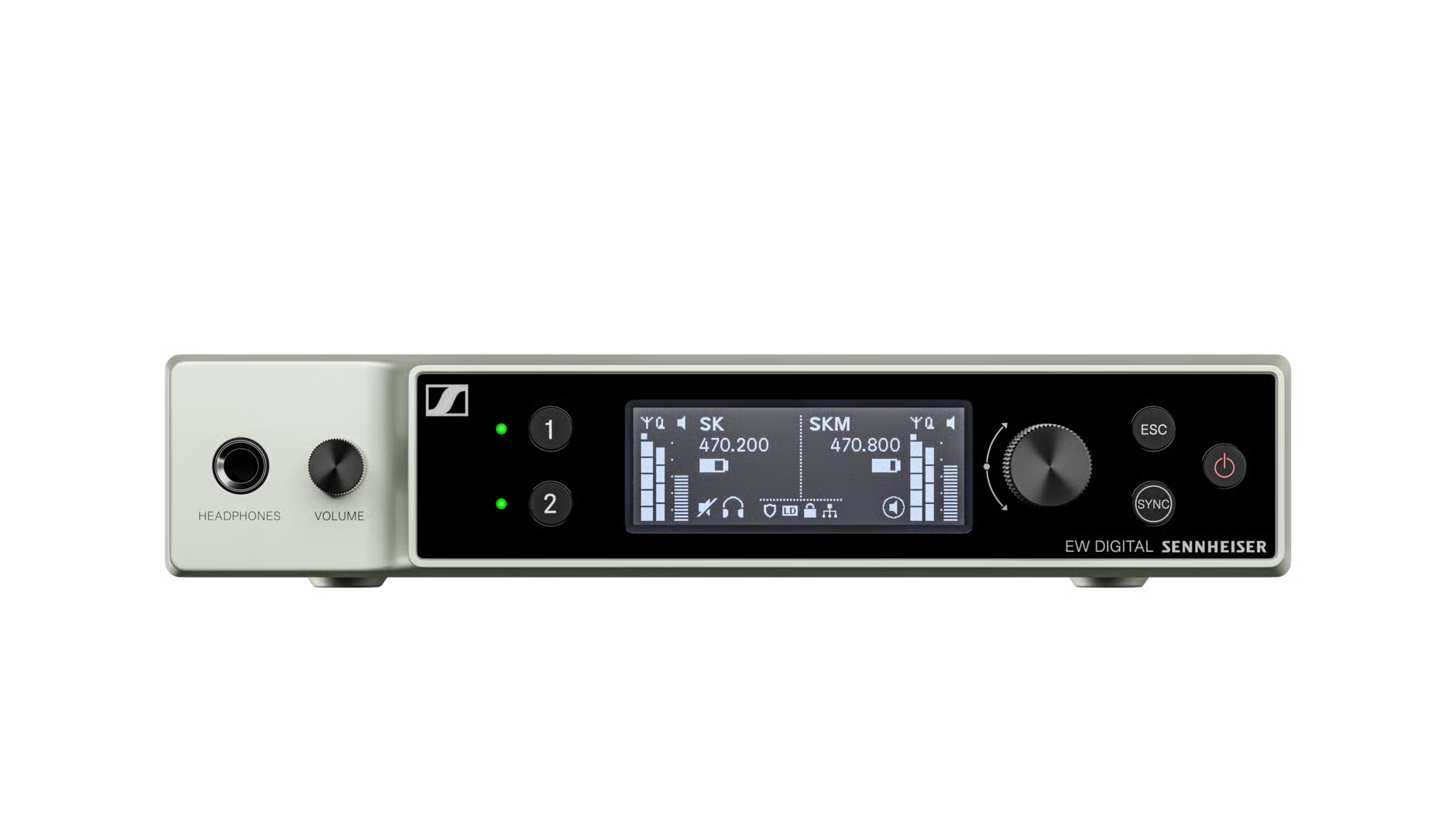

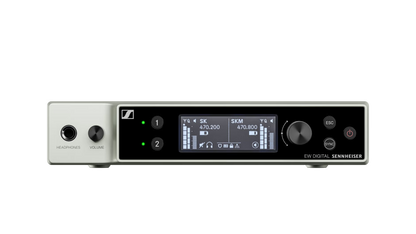

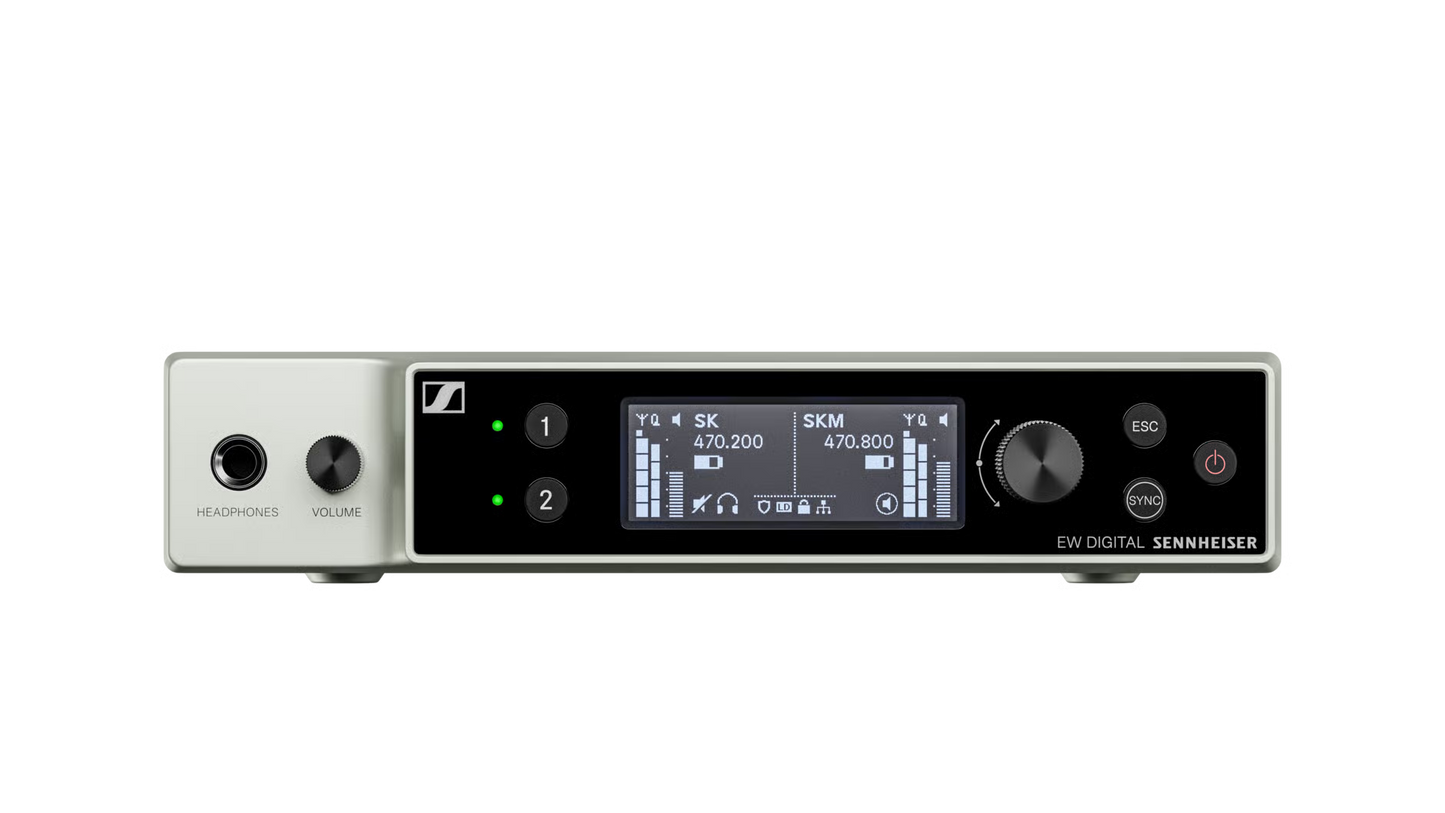

• Clear and easy focused user interface with OLED display, jog wheel navigation and control buttons
• Selective headphone output with volume control on front panel
• Extended menu settings such as custom frequency list, selectable sync parameter and walk test
• External PSU 12V/1A
• Worldwide usage (specific frequencies subject to local RF regulations)

Specifications:

• Audio output: 2x 70 mW @ 32 Ω
• Frequency range: 470.200 - 550.000 MHz
• Latency (ms): 1.9 ms
• Pickup pattern: Omnidirectional, Cardioid
• Power consumption (Amp): max. 12 W
• Transducer type: Condenser
• Connection: Wireless
