Description

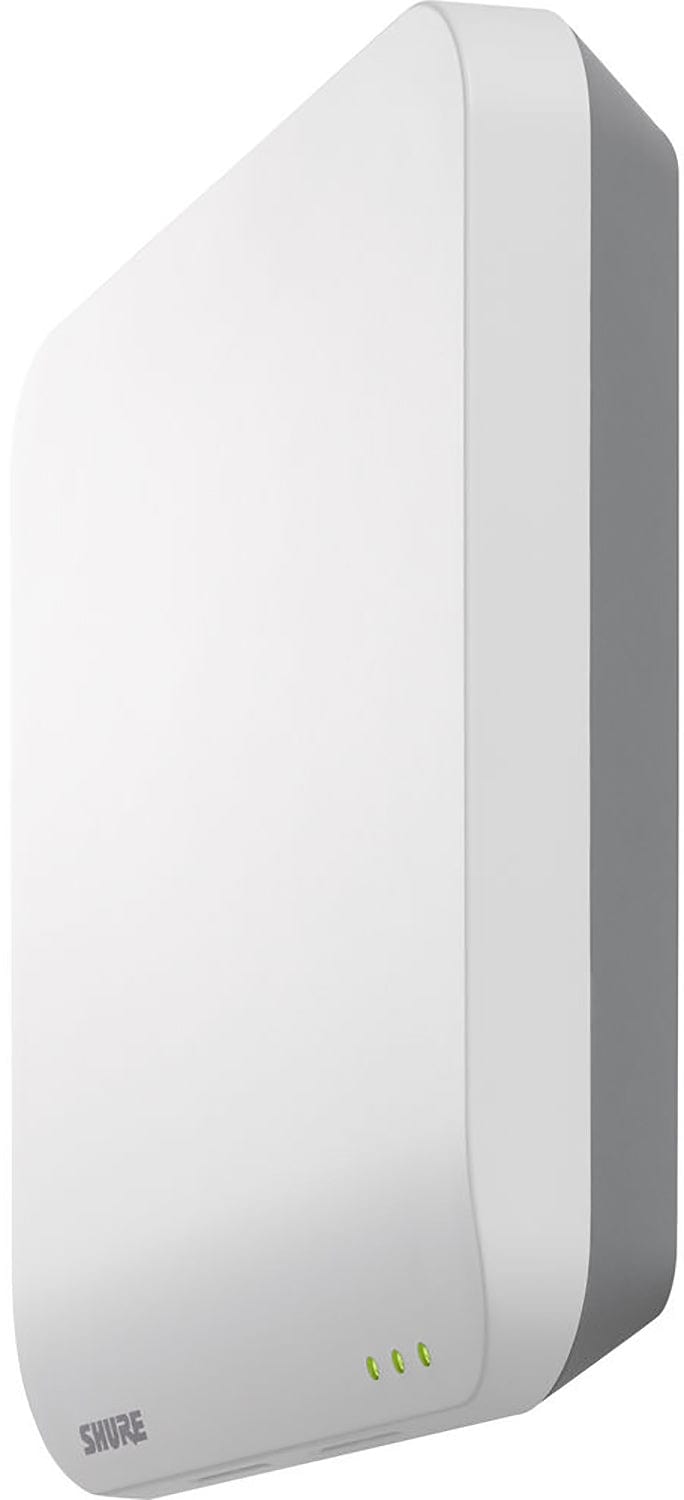

Shure MXWAPT8 Access Point Transceiver - Z10 Band

The MXWAPT is a 8-channel wireless access point compatible with Microflex Wireless microphone systems. It uses automated frequency coordination to assign clean frequencies to wireless microphones and manages two-way wireless transmission of encrypted audio and control signals. Power to the unit (via PoE) and Dante digital networked audio are both supplied over a single Ethernet cable to simplify installation, and the supplied mounting plate and paintable cover allow discreet placement in boardrooms and conference rooms where low visibility is preferred.

Features:

  • Slim profile: Lightweight, discreet unit with paintable cover to match interior room colors and blend into AV environments
  • Easy installation: Includes wall/ceiling mounting plate and connects to the system over single Ethernet cable (PoE compatible)
  • Plenum rated: Meets rigorous fire safety test standards for installation above drop ceiling tiles
  • Scalable configurations: Available in 2, 4 or 8 channel models to fit varying channel count requirements, and multiple units can be combined support configurations of up to 32 compatible channels (40 in Europe and select countries)
  • Bi-directional wireless: Provides return channel audio to wireless transmitters and enables real time remote control of all wireless microphone settings
  • Automated frequency coordination: Automatically scans available spectrum, coordinates clean frequency assignments, and moves channels away from unexpected interference
  • Dante™ digital networked audio: Transports low latency digital audio received from wireless microphones over Cat5e cable to any other Dante-equipped device
  • Encrypted wireless: AES 256-bit encryption for secure transmission
  • Selectable output power: Optimize spectrum usage by selecting the appropriate wireless output power for the desired operating range
  • Diagnostic LEDs: Provide easy visual reference to system activity and indicate power, wireless connection, and network audio status
  • Wireless transmission uses DECT technology for more than 80 audio channels per system.
  • High Density mode to maximize the channel count (country specific information in the table below)

Specifications:

  • Network Interface: RJ45: Gigabit Ethernet, Dante digital audio
  • Plenum Rating: UL 2043
  • Power Requirement: Power over Ethernet (PoE) Class 0, 6.5W
  • Antenna Type: Internal, Spatial Diversity, Circular Polarization
  • Housing: Molded Plastic, Cast Zinc
  • Dimensions:
    • 24 mm × 170 mm × 170 mm (1.35 in. × 6.7 in. × 6.7 in.), H × W × D
    • Without mounting plate or cover
  • Weight:
    • APT8 856 g (1.9 lbs)
    • APT4 845 g (1.9 lbs)
    • APT2 845 g (1.9 lbs)
    • Paintable Cover 85 g (0.2 lbs)
    • Mounting Bracket 68 g (0.15 lbs)
