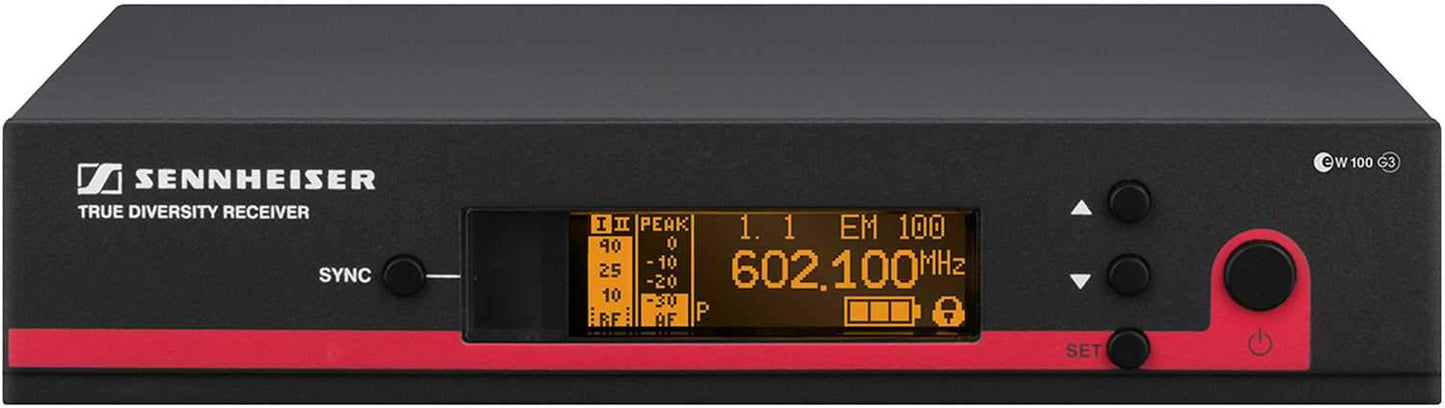

Sennheiser EM 100 G3 True Diversity Receiver A

Rugged rack receiver utilizing true diversity for optimum reception. 42 MHz bandwidth with 1680 tunable UHF frequencies. 20 frequency banks with 12 preset frequencies each, plus a user-programmable bank.

With its improved design and new features, this rugged G3 rack receiver is ready for the road with its proven transmission reliability and inspiring flexibility. The sound check mode allows you to check the audio and RF signal at any time during setup. 20 frequency banks with 12 preset frequencies each, plus a user-programmable bank mean you can easily run multiple channels of G3 wireless simultaneously.

• 1 EM 100 G3-A-US rack-mount receiver
• 1 NT 2 power supply unit
• 2 antennas
• 2 stacking elements
• 2 AA batteries
• Operating instructions

Features:

• Sturdy metal housing
• 42 MHz bandwidth: 1680 tunable UHF frequencies for interference-free reception
• Enhanced frequency bank system with up to 12 compatible frequencies
• High-quality true diversity reception
• Pilot tone squelch for eliminating RF interference when transmitter is turned off
• Automatic frequency scan feature searches for available frequencies
• Enhanced AF frequency range
• Wireless synchronization of transmitters via infrared interface
• User-friendly menu operation with more control options
• Illuminated graphic display
• Auto-Lock function avoids accidental changing of settings
• HDX compander for crystal-clear sound
• Receiver features transmitter battery indicatation in 4 steps
• Integrated Equalizer, Soundcheck mode and guitar tuner
• Wide range of accessories adapts the system to any requirement

Specifications:

• Dimensions: 212 x 202 x 43 mm
• Frequency response: (Microphone) 25 - 18000 Hz
• Compander: HDX
• Audio-XLR connector: XLR / 6,3 mm
• Presets: 12
• THD, total harmonic distortion: < 0,9 %
• Weight: 900 g
• Signal-to-noise: ratio > 110 dB(A)
• RF frequency: range 516 - 865 MHz
• Transmission/receiving frequencies: 1680
• Switching bandwidth: 42 MHz
• Peak deviation: +/- 48 kHz
• In compliance with ETS 300422, ETS 300445, CE, FCC
• Antenna connector 2 BNC, 50 ?
• Audio output level: (balanced) XLR: +18 dBu max
• Audio output level: (unbalanced) Jack: +12 dBu max
• Frequency range: 516...558 MHz / Power supply unit US
