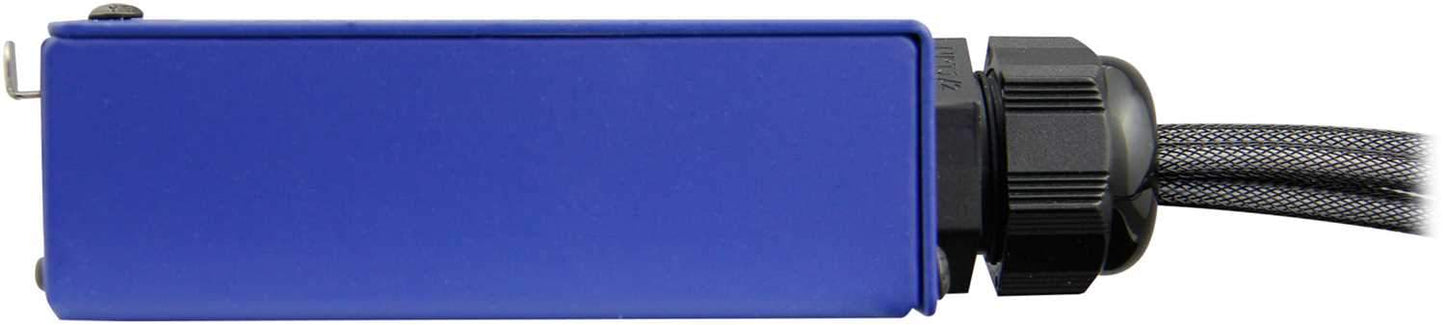

Name: Radial Catapult MINI RX 4ch Cat5 XLRM Breakout Box
Brand: Radial Engineering
SKU: CATAPULT-MINI-RX

Description

Radial Catapult MINI RX 4ch Cat5 XLRM Breakout Box

Analog audio over Cat 5 wiring
The Catapult Mini TX acts like a typical four-channel analog audio snake; they allow you to send mic or line-level signals from one location to another without signal loss, noise, or interference, and without any digital audio conversion needed. What makes the Catapult system unique is that it utilizes Cat 5 Ethernet cable, which is widely available, lightweight, and economical. Simply connect a shielded Cat 5 cable between any two Catapult modules and they will use the analog conductors in the cable to deliver four balanced audio lines to any destination.

Mix & Match
All of the Radial Catapult modules are compatible with each other, and each is sold individually, so you can select whichever combination best suits your needs. The Catapult Mini RX and TX can be used together as a pair, creating a compact 4-channel audio snake. However, if you prefer to have a stage box to plug microphones into, but want a compact breakout cable that fits in the case with the mixer, combine the Catapult TX4 with the Catapult Mini RX. A variety of modules allow you to customize your transmit and receive devices to complement any application.

Catapult Mini Applications

Using the Mini TX with the Mini RX
The Mini TX and RX can be directly connected using a single Cat 5 cable, providing you with a robust 4-channel analog audio snake that can deliver balanced signals over long distances while maintaining high audio quality.

Using the Mini TX with the Catapult RX4
The Mini TX can be paired with the Catapult RX4 to feed the outputs of a console to a distant rack of power amps. To block stray DC voltages and avoid noise through the system, the RX4L has line level isolation transformers to eliminate hum and buzz, as well as four direct XLR outputs to feed another device such as a recording interface. For isolation of mic-level signals, you can utilize the RX4M.

Features:

RJ45 Input (Catapult Mini RX)
Receives four channels of analog audio over Cat 5 or Cat 6 Ethernet cable.
Powder Coat
Durable coat keeps your Catapult Mini looking great for years.
Color-Coded Heatshrink Labels
Identify channels at a glance.
Expando Mesh Sheathing
Provides extra durability and protects cables from damage.
Male XLR Outputs (Catapult Mini RX)
Allow you to plug directly into the inputs of a mixer or recording interface.
