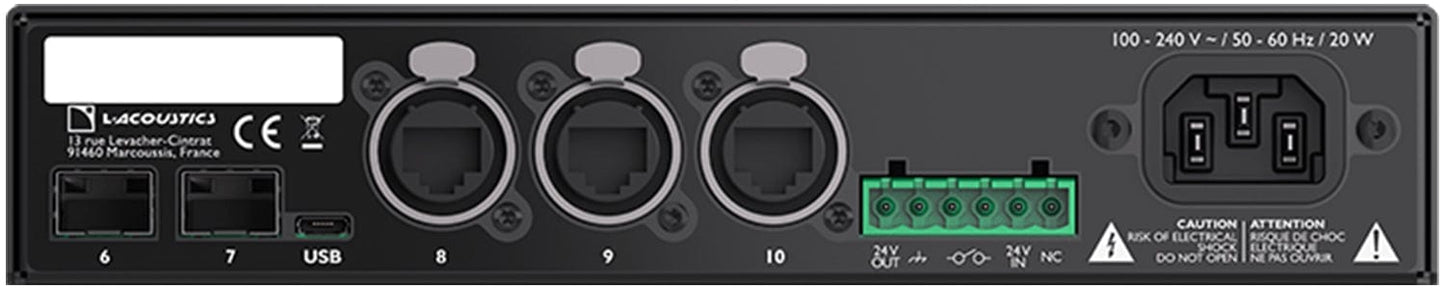

L-Acoustics 10-Port AVB Switch
LS10 is a plug-and-play AVNU-certified AVB switch that integrates seamlessly within the L-Acoustics ecosystem to further simplify connectivity, uniting audio and control distribution. LS10 runs out-of-the-box AVB, providing a reliable network solution that does not require IT expertise.
Specifications:
- General:
- Mains rating: 100 V - 240 V AC (± 10%), 50 Hz - 60 Hz
- Power consumption:
- 10 W (normal operation)
- 20 W (redundancy operation)
- Operating temperature: -5 °C / 23 °F to 50 °C / 122 °F
- Connectors:
- Network connectivity:
- 8 Neutrik EtherCON™ (5 on Front, 3 on Rear)
- 2 SFP cages (Rear) compliant with SFP transceivers
- Power connectivity:
- 1 IEC inlet with lock compatible to Schurter V-Lock™
- 1 redundant 24V DC power input
- 1 redundant 24V DC power output
- User configurable GPO: 1 potential free GPO on Phoenix connector
- AVB:
- AVB Ports: 10 AVB ports at 1 Gb/s
- AVB Bridge:
- IEEE 802.1BA-2011 standard
- Augmented by Avnu ProAV 1.1 requirements
- Number of supported streams: 150
- Time to forward AVB streams after power up: 5 seconds
- Features
- Management:
- gPTP grandmaster capable
- RSTP
- Port Sensing Auto negotiation
- Auto Crossover: MDI / MDIX (allows to use straight or cross cables)
- Auto Sensing: Full or Half Duplex
- Interface:
- Power status LED, fault status LED
- link up/activity status LEDs
- Reset to factory settings button
- micro: USB
- Physical data:
- Height x Width: 1.7“ x 9,5“ (1U x 1/2 U)
- Weight: 1.5 kg / 2.2 lb
- Mains rating: 100 V - 240 V AC (± 10%), 50 Hz - 60 Hz
- Power consumption:
- 10 W (normal operation)
- 20 W (redundancy operation)
- Operating temperature: -5 °C / 23 °F to 50 °C / 122 °F
- Network connectivity:
- 8 Neutrik EtherCON™ (5 on Front, 3 on Rear)
- 2 SFP cages (Rear) compliant with SFP transceivers
- Power connectivity:
- 1 IEC inlet with lock compatible to Schurter V-Lock™
- 1 redundant 24V DC power input
- 1 redundant 24V DC power output
- User configurable GPO: 1 potential free GPO on Phoenix connector
- AVB Ports: 10 AVB ports at 1 Gb/s
- AVB Bridge:
- IEEE 802.1BA-2011 standard
- Augmented by Avnu ProAV 1.1 requirements
- Number of supported streams: 150
- Time to forward AVB streams after power up: 5 seconds
- Management:
- gPTP grandmaster capable
- RSTP
- Port Sensing Auto negotiation
- Auto Crossover: MDI / MDIX (allows to use straight or cross cables)
- Auto Sensing: Full or Half Duplex
- Interface:
- Power status LED, fault status LED
- link up/activity status LEDs
- Reset to factory settings button
- micro: USB
- Height x Width: 1.7“ x 9,5“ (1U x 1/2 U)
- Weight: 1.5 kg / 2.2 lb
