Name: Radial StudioQ Studio Talkback with Built-in Mic
Brand: Radial Engineering
SKU: STUDIOQ
Rating: 4.0 (1 reviews)

Radial StudioQ Studio Talkback w/ Built-in Mic

Desktop Cue & Talkback ControllerThe Studio-Qô is a compact studio talkback controller that provides a simple yet full-function cue system that allows easy communication with artists in a separate room or vocal booth.

Better communication for better recordingsThe Studio-Q allows you to professionally and easily communicate with artists that are in a separate live room or vocal booth, streamlining your studio workflow and improving the recording experience for the artist. Simply press the talkback button and a built-in omnidirectional microphone will activate, while at the same time lowering audio playback so you can be heard easily through the cue system. An external dynamic microphone can also be connected as an alternate talkback source, and a footswitch can be added for hands-free remote operation.

Home studio setupUse the Studio-Q to add talkback functionality to your system. Now you can communicate seamlessly with an artist on headphones in a separate room.

Adding a beaconThe remote Beacon can be connected via º" cable, illuminating whenever the talkback button is pressed. This gives an additional visual indication that the engineer or producer is trying to communicate over the cue system.

Using an external microphoneThe XLR mic input on the Studio-Q allow a second microphone to be used so a producer or band member can also communicate with the artist in the booth. This can be controlled with a separate footswitch for easy hands-free operation.

Compact desktop cue system for studio recording.

Allows engineer & producer to talk to artists.

Built-in microphone and external mic input.

Improves studio efficiency and communication.

Features:

Dry Contact/Power: Sets the remote output to be a "dry" contact closure or carry voltage to a Beacon.
Dim: Lowers the program volume to the desired level when the talkback mic is active.
Program: Used to set the level of the incoming pre-recorded tracks to the headphone system.
Int-Mic: Trim control used to adjust the internal capacitive microphone.
Talkback: Engages both the internal and external microphone (if connected) and dims the program level.
Ext-Mic: Trim control used to adjust the external producer mic input.
Mic: Master output level for the two microphones.
Mic: Internal omni-directional capacitive microphone.
Remote On Both: Sets JR1 footswitch to turn on either the producer mic only or both mic's at once.

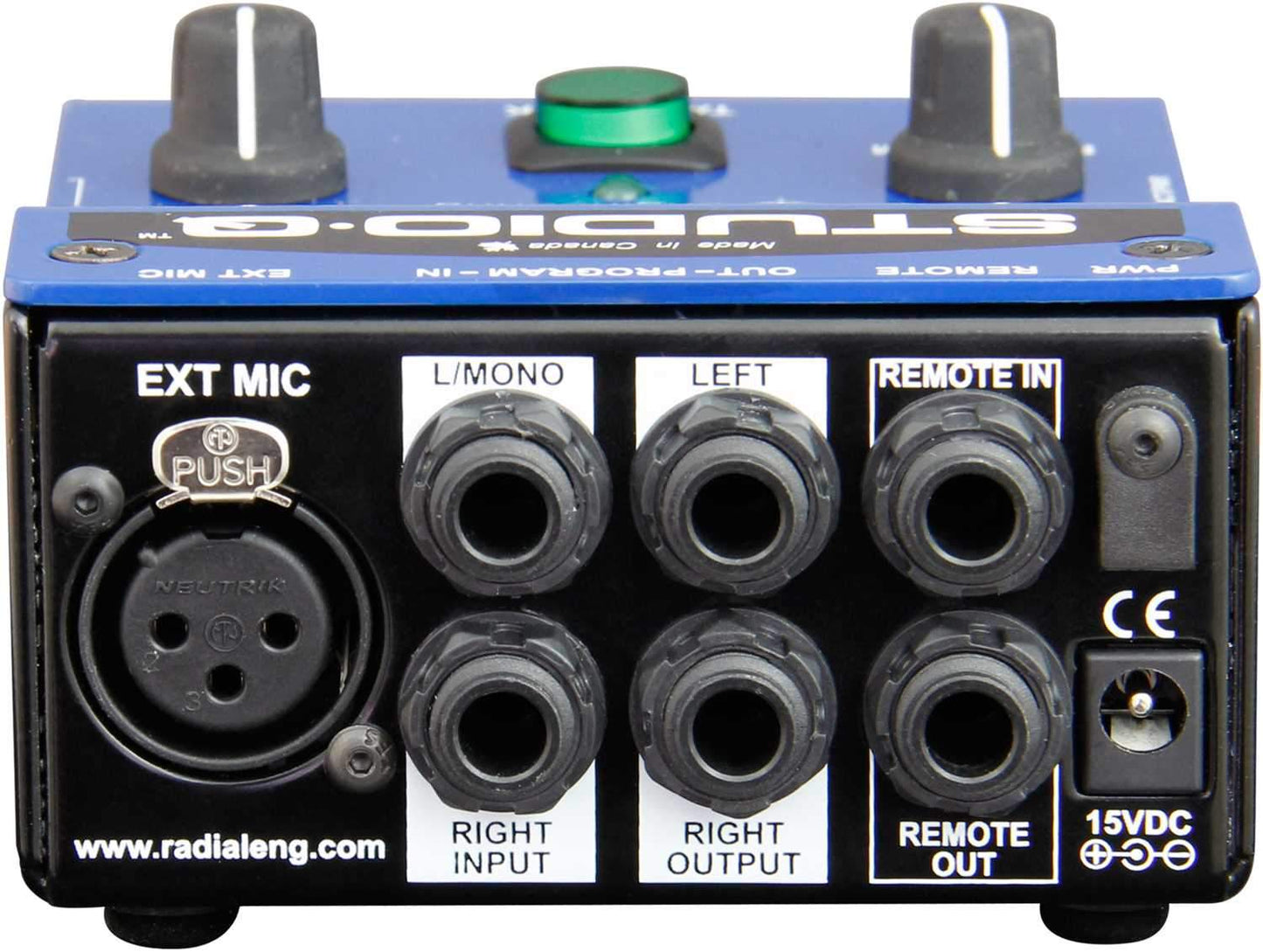

Ext-Mic: XLR Connection for the external produer microphone.
Program Inputs: 1/4" TRS inputs for program material, left input may also be used in mono.
Outputs: 1/4" TRS connections carry program material mixed with the talkback mic output.
Remote In: Connection for Radial JR1 momentary footswitch.
Remote Out: Dry contact output to control external relay.
Cable Lock: Prevents accidental disconnection from the power supply.
Power DC: Connection for 15V power supply.
