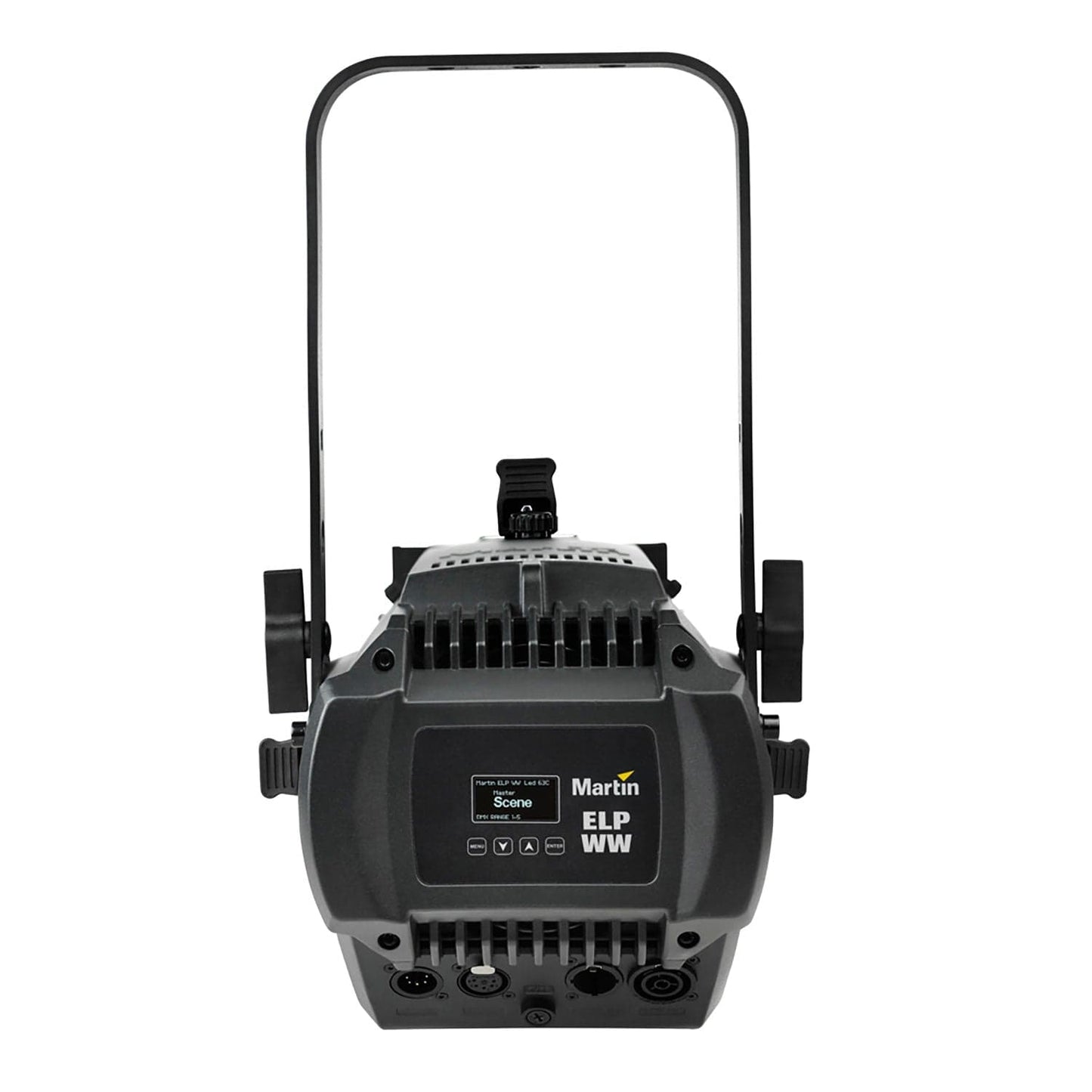

Martin ELP CL Full Color LED Ellipsoidal - Body - Black
Martin ELP CL (Color) LED ellipsoid fixtures deliver the class-leading luminance, output and vivid color rendering that you’ve come to expect from Martin. Ergonomic Danish engineering offers advances in lighting functionality that include the highly efficient gear-based Fine Focus—an industry first; and Fast Focus which allows focusing of the fixture without data flowing to it. ELP also offers 16-bit dimming with 4 selectable curves and 26 color presets that match industry-standard color filters. ELP fixtures can be configured with one of four Martin lens tubes in 19, 26, 36 and 50-degree beam angles and are compatible with third-party lens tubes along with a wide range of accessories including gel frames and gobos for flexibility in lighting design and inventory management.
Features:
- Impressive light output rating of 6,900 lumens (in High Output mode).
- Superior CRI rating of 90 (in High Quality mode).
- Revolutionary focus and functionality—industry’s first gear-driven Fine Focus, Fast Focus for data-free focusing, and more.
- Compatible with universal accessories—use existing lens tubes, gel frames, gobo holders and rotators
- 15-30 degree and 25-50 degree beam Zoom lenses available in black and white
- Advanced optics engineered in Denmark
- RGBAL Luxeon Rebel LED engine delivers vibrant, saturated colors
- 26 color presets match industry-standard filters
- 16-bit dimming with 4 selectable dimming curves
- Flicker-free operation
- 5-pin DMX/RDM and Neutrik True1 In/Thru connectivity
Specifications:
- Physical:
- Length: 648 mm (25.5 in.)
- Width: 259 mm (10.2 in.)
- Height: 254 mm (10 in.), 427 mm (16.8 in.) with bracket
- Weight: 7.7 kg (17 lbs) body only
- Dynamic Effects:
- Color mixing: RGBLA
- Color Temperature Range: 2000-10000K
- Color selection: 26 color presets
- Electronic dimming: 0–100%, Four dimming curve options
- Strobe and pulse effects: Variable speed and action, random strobe
- Electronic shutter effect: Instant open and blackout
- Control and Programming:
- Control options: DMX, stand-alone
- DMX channels: 1/10/17
- 16-bit control: Intensity, CTC, RGBLA
- Setting and addressing: Control panel with OLED display or via RDM
- PWM: 600-2400 Hz
- Standalone programming: Control panel with OLED display
- DMX compliance: USITT DMX512-A
- RDM compliance: ANSI/ESTA E1.20
- Transceiver: Opto-isolated RS-485
- Optics:
- Light source: 91 X RGBAL Luxeon Rebel LEDs (19 Red, 24 Green, 12 Blue, 24 Lime, 12 Amber)
- Minimum LED lifetime: 30,000 hours (to >70% luminous output)
- Color temperature: 2000-10000K
- Lens tube options: 19°, 26°, 36°, 50°
- Zoom Lens Tube Options: 15–30° and 25–50°
- Binning: Tight color and flux binning
- Calibration: White Point Color Calibration
- Photometric Data
- Light engine luminous output: 20,000 lumens
- High Output Mode:
- Fixture luminous output: 6,900 lumens
- CRI (Color Rendering Index): >85
- CQS (Color Quality Scale): >90
- TM-30 Rf (IES TM-30-15 Fidelity Index): >84
- TM-30 Rg (IES TM-30-15 Gamut Index): >111
- TLCI (Television Lighting Consistency Index): >85
- CCT: 5500 K (+/- 250 K)
- High Quality Mode:
- Fixture luminous output: 5,900 lumens
- CRI (Color Rendering Index): >90
- CQS (Color Quality Scale): >87
- TM-30 Rf (IES TM-30-15 Fidelity Index): >84
- TM-30 Rg (IES TM-30-15 Gamut Index): >106
- TLCI (Television Lighting Consistency Index): >87
- CCT: 6000 K (+/- 250 K)
- Construction:
- Housing: Die-cast aluminum
- Color: Black variant
- Protection rating: IP20
- Gobos and Color Frame:
- Gobo size : A size, 100 mm OD, 75 mm image*, B size, 86 mm OD, 64.5 mm image
- Color frame size: 159 X 159 mm (6.25 X 6.25 in.)
- Installation:
- Mounting: Adjustable bracket
- Location: Indoor use only
- Orientation: Any
- Minimum distance to combustible materials: 0.2 m (0.7 ft.)
- Minimum distance to illuminated surfaces: 0.5 m (1.6 ft.)
- Connections:
- AC power in, thru: Neutrik PowerCON TRUE1
- DMX and RDM data in/out: 5-pin locking XLR
- Electrical:
- AC power: 100-240 V nominal, 50/60 Hz
- Idle power (zero intensity): 5 W
- Power supply unit: Auto-ranging electronic switch-mode
- Half-cycle RMS inrush current at 230 V, 50 Hz: 15.0 A
- Fixture link via PowerCON at 100-120 V: Up to 4 fixtures
- Fixture link via PowerCON at 200-240 V: Up to 9 fixtures
- Power consumption figures are typical, not maximum. Allow for +/- 10% variation.
- Typical Power and Current:
- 110 V, 60 Hz: 2.4 A, 259 W, PF 0.99
- 208 V, 60 Hz: 1.3 A, 250 W, PF 0.96
- 230 V, 50 Hz: 1.3 A, 249 W, PF 0.95
- 240 V, 50 Hz: 1.1 A, 249 W, PF 0.95
- Measurements made at nominal voltage with all LEDs at full intensity. Allow for a deviation of +/- 10%.
- Thermal:
- Cooling: Forced air (temperature-regulated, low noise)
- Maximum ambient temperature (Ta max.): 40° C (104° F)
- Minimum ambient temperature (Ta min.): 0° C (32° F)
- Total heat dissipation (calculated, +/- 10%): 1000 BTU/hr. (at full intensity, full white)
- Environmental:
- RoHS: Compliant
- REACH: Compliant
- WEEE: Compliant
- Proposition 65: Compliant
- Efficacy (max output): 28 lm/W
- LWR*: 896 lm/kg (406 lm/lb)
- LWR = Lumen-to-Weight Ratio
- Approvals:
- Global CB Certification/IECEE: IEC 60598-2-17 (IEC 60598-1)
- EU safety: EN 60598-2-17 (EN 60598-1), EN 62471, EN 62493
- EU EMC: EN 55015; EN 55032; EN 55103-2; EN 61000-3-2,-3; EN 61547
- US safety: UL 1573
- US EMC: FCC Part 15 Class B
- Canadian safety: CSA C22.2 No. 166
- Canadian EMC: ICES-003 Class B, ICES-005 Class B
- Australia/NZ: RCM
- Physical:
- Length: 648 mm (25.5 in.)
- Width: 259 mm (10.2 in.)
- Height: 254 mm (10 in.), 427 mm (16.8 in.) with bracket
- Weight: 7.7 kg (17 lbs) body only
- Dynamic Effects:
- Color mixing: RGBLA
- Color Temperature Range: 2000-10000K
- Color selection: 26 color presets
- Electronic dimming: 0–100%, Four dimming curve options
- Strobe and pulse effects: Variable speed and action, random strobe
- Electronic shutter effect: Instant open and blackout
- Control and Programming:
- Control options: DMX, stand-alone
- DMX channels: 1/10/17
- 16-bit control: Intensity, CTC, RGBLA
- Setting and addressing: Control panel with OLED display or via RDM
- PWM: 600-2400 Hz
- Standalone programming: Control panel with OLED display
- DMX compliance: USITT DMX512-A
- RDM compliance: ANSI/ESTA E1.20
- Transceiver: Opto-isolated RS-485
- Optics:
- Light source: 91 X RGBAL Luxeon Rebel LEDs (19 Red, 24 Green, 12 Blue, 24 Lime, 12 Amber)
- Minimum LED lifetime: 30,000 hours (to >70% luminous output)
- Color temperature: 2000-10000K
- Lens tube options: 19°, 26°, 36°, 50°
- Zoom Lens Tube Options: 15–30° and 25–50°
- Binning: Tight color and flux binning
- Calibration: White Point Color Calibration
- Photometric Data
- Light engine luminous output: 20,000 lumens
- High Output Mode:
- Fixture luminous output: 6,900 lumens
- CRI (Color Rendering Index): >85
- CQS (Color Quality Scale): >90
- TM-30 Rf (IES TM-30-15 Fidelity Index): >84
- TM-30 Rg (IES TM-30-15 Gamut Index): >111
- TLCI (Television Lighting Consistency Index): >85
- CCT: 5500 K (+/- 250 K)
- High Quality Mode:
- Fixture luminous output: 5,900 lumens
- CRI (Color Rendering Index): >90
- CQS (Color Quality Scale): >87
- TM-30 Rf (IES TM-30-15 Fidelity Index): >84
- TM-30 Rg (IES TM-30-15 Gamut Index): >106
- TLCI (Television Lighting Consistency Index): >87
- CCT: 6000 K (+/- 250 K)
- Construction:
- Housing: Die-cast aluminum
- Color: Black variant
- Protection rating: IP20
- Gobos and Color Frame:
- Gobo size : A size, 100 mm OD, 75 mm image*, B size, 86 mm OD, 64.5 mm image
- Color frame size: 159 X 159 mm (6.25 X 6.25 in.)
- Installation:
- Mounting: Adjustable bracket
- Location: Indoor use only
- Orientation: Any
- Minimum distance to combustible materials: 0.2 m (0.7 ft.)
- Minimum distance to illuminated surfaces: 0.5 m (1.6 ft.)
- Connections:
- AC power in, thru: Neutrik PowerCON TRUE1
- DMX and RDM data in/out: 5-pin locking XLR
- Electrical:
- AC power: 100-240 V nominal, 50/60 Hz
- Idle power (zero intensity): 5 W
- Power supply unit: Auto-ranging electronic switch-mode
- Half-cycle RMS inrush current at 230 V, 50 Hz: 15.0 A
- Fixture link via PowerCON at 100-120 V: Up to 4 fixtures
- Fixture link via PowerCON at 200-240 V: Up to 9 fixtures
- Power consumption figures are typical, not maximum. Allow for +/- 10% variation.
- Typical Power and Current:
- 110 V, 60 Hz: 2.4 A, 259 W, PF 0.99
- 208 V, 60 Hz: 1.3 A, 250 W, PF 0.96
- 230 V, 50 Hz: 1.3 A, 249 W, PF 0.95
- 240 V, 50 Hz: 1.1 A, 249 W, PF 0.95
- Measurements made at nominal voltage with all LEDs at full intensity. Allow for a deviation of +/- 10%.
- Thermal:
- Cooling: Forced air (temperature-regulated, low noise)
- Maximum ambient temperature (Ta max.): 40° C (104° F)
- Minimum ambient temperature (Ta min.): 0° C (32° F)
- Total heat dissipation (calculated, +/- 10%): 1000 BTU/hr. (at full intensity, full white)
- Environmental:
- RoHS: Compliant
- REACH: Compliant
- WEEE: Compliant
- Proposition 65: Compliant
- Efficacy (max output): 28 lm/W
- LWR*: 896 lm/kg (406 lm/lb)
- LWR = Lumen-to-Weight Ratio
- Approvals:
- Global CB Certification/IECEE: IEC 60598-2-17 (IEC 60598-1)
- EU safety: EN 60598-2-17 (EN 60598-1), EN 62471, EN 62493
- EU EMC: EN 55015; EN 55032; EN 55103-2; EN 61000-3-2,-3; EN 61547
- US safety: UL 1573
- US EMC: FCC Part 15 Class B
- Canadian safety: CSA C22.2 No. 166
- Canadian EMC: ICES-003 Class B, ICES-005 Class B
- Australia/NZ: RCM
