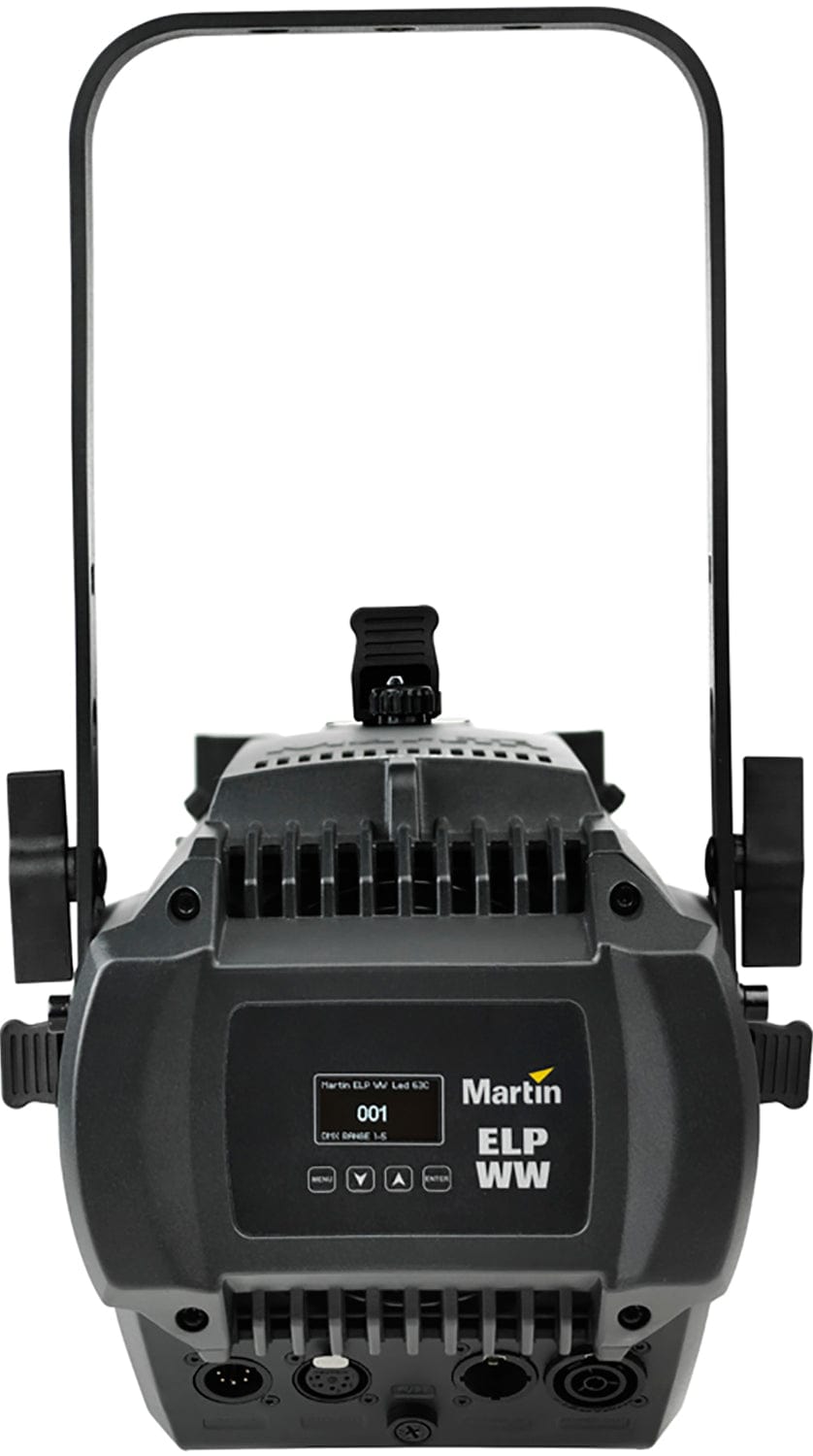

Martin ELP WW Warm White LED Ellipsoidal Profile Fixture
Martin ELP WW (Warm White) LED ellipsoid fixtures deliver the class-leading luminance, output and vivid color rendering that you’ve come to expect from Martin. Ergonomic Danish engineering offers advances in lighting functionality that include the highly efficient gear-based Fine Focus—an industry first; and Fast Focus which allows focusing of the fixture without data flowing to it. ELP also offers 16-bit dimming with 4 selectable curves. ELP fixtures can be configured with one of four Martin lens tubes in 19, 26, 36 and 50-degree beam angles and are compatible with third-party lens tubes along with a wide range of accessories including gel frames and gobos for flexibility in lighting design and inventory management.
Superior output, optics and color rendering, combined with unparalleled ease-of-use and convenience, make Martin ELP WW the leading Warm White LED ellipsoidal fixture in its class. ELP Zoom Lenses expand the versatility of the line with two industry-standard beam ranges and two housing color variants available in 15-30 degree and 25-50 degree beam ranges, in black or white housing.
Features:
- Impressive light output rating of 7,000 lumens at 3000K.
- Industry-leading CRI rating of 97.
- Revolutionary focus and functionality—industry’s first gear-driven Fine Focus, Fast Focus for data-free focusing, and more.
- Compatible with universal accessories—use existing lens tubes, gel frames, gobo holders and rotators
- 15-30 degree and 25-50 degree beam Zoom lenses available in black and white
- Advanced optics engineered in Denmark
- Warm White light engine employs leading-edge LED chipset technology for high output and smooth LED blending
- 16-bit dimming with 4 selectable dimming curves
- Flicker-free operation
- 5-pin DMX/RDM and Neutrik True1 In/Thru connectivity
Specifications:
- Physical:
- Length: 648 mm (25.5 in.)
- Width: 259 mm (10.2 in.)
- Height: 254 mm (10 in.), 427 mm (16.8 in.) with bracket
- Weight: 7.7 kg (17 lbs) body only
- Dynamic Effects:
- Electronic dimming: 0 - 100%, four dimming curve options
- Strobe and pulse effects: Variable speed and action, random strobe
- Electronic shutter effect: Instant open and blackout
- Control and Programming:
- Control options: DMX, stand-alone
- Setting and addressing: Control panel with OLED display or via RDM
- 16-bit control: Intensity
- DMX channels: 1/2/4
- PWM: 600-2400 Hz
- Standalone programming: Control panel with OLED display
- DMX compliance: USITT DMX512-A
- RDM compliance: ANSI/ESTA E1.20
- Transceiver: Opto-isolated RS-485
- Optics:
- Light source: 91 X 3W warm white LEDs
- Minimum LED lifetime: 30,000 hours (to >70% luminous output)
- Color temperature: 3000K
- Lens tube options: 19°, 26°, 36°, 50°
- Zoom Lens Tube Options: 15–30° and 25–50°
- Binning: Tight color and flux binning
- Photometric Data:
- Light engine luminous output: 16,000 lumen
- Fixture luminous output: 7000 lumen
- CRI (Color Rendering Index) : >97
- CQS (Color Quality Scale): >93
- TM-30 Rf (IES TM-30-15 Fidelity Index): >93
- TM-30 Rg (IES TM-30-15 Gamut Index): >101
- TLCI (Television Lighting Consistency Index): >96
- Gobos and Color Frame:
- Gobo size : A size, 100 mm OD, 75 mm image, B size, 86 mm OD, 64.5 mm image
- Color frame size: 159 X 159 mm (6.25 X 6.25 in.)
- Construction:
- Housing: Die-cast aluminum
- Color: Black
- Protection rating: IP20
- Installation:
- Mounting: Adjustable bracket
- Location: Indoor use only
- Orientation: Any
- Minimum distance to combustible materials: 0.2 m (0.7 ft.)
- Minimum distance to illuminated surfaces: 0.5 m (1.6 ft.)
- Connections:
- AC power in, thru: Neutrik PowerCON TRUE1
- DMX and RDM data in/out: 5-pin locking XLR
- Electrical:
- AC power: 100-240 V AC nominal, 50/60 Hz
- Power supply unit: Auto-ranging electronic switch mode
- Typical half-cycle RMS inrush current at 230 V, 50 Hz: 15.3 A
- Power Factor: 0.99 @ 110 V , 0.97 @ 208 V , 0.96 @ 230 V / 240 V
- Typical current draw: 2.6 A @ 110 V , 1.4 A @ 208 V , 1.2 A @ 230 V / 240 V
- Thermal:
- Cooling: Forced air (temperature-regulated, low noise)
- Maximum ambient temperature (Ta max.): 40° C (104° F)
- Minimum ambient temperature (Ta min.): 0° C (32° F)
- Total heat dissipation (calculated, +/- 10%): 1000 BTU/hr. (at full intensity, full white)
