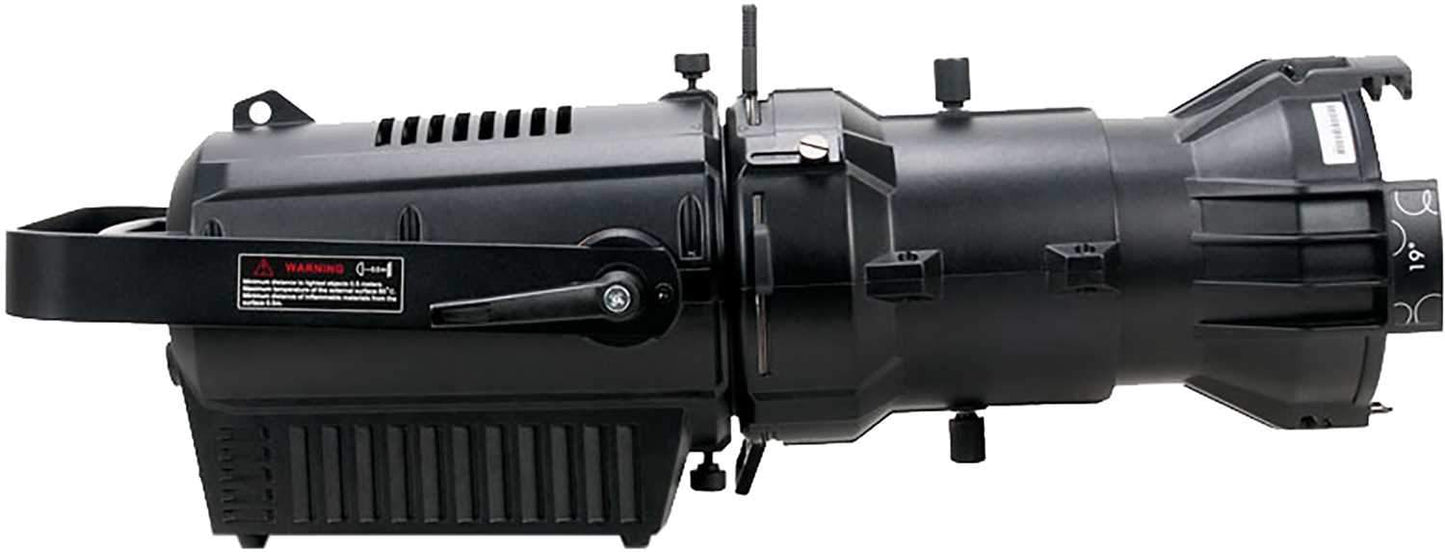

Elation CW Profile HP LED Ellipsoidal Fixture (Engine Only)

The CW Profile HP™ ellipsoidal features a High Powered 130W Cool White >90CRI 5,600K LED engine producing 11,000+ total lumens, 19°, 26°, 36°, and 50° interchangeable lens options (sold separately), (4) blade manual framing shutters, manual focus, supports B size metal HT transparency gobos, DMX controlled electronic strobe, and variable dimming curve modes, adjustable refresh frequency and gamma brightness for flicker free operation for TV and Film, 3/5pin DMX and powerCON True1 in/out connections, (4) button LCD control display panel, an integrated rigging yoke, quiet fan cooling, and a multi-voltage universal auto switching power supply (100-240v).

Features:

  • High Power 130W Cool White 5,600K LED Engine
  • >90CRI | 11,000+ Total Lumens
  • Interchangeable Lens Options (19°, 26°, 36°, 50°) (not included)
  • (4) Blade Manual Framing Shutters
  • Supports B Size Metal or HT Transparency Gobos (not included)
  • DMX Controlled Electronic Strobe and 16bit Dimming
  • Selectable Dimming Curve Modes
  • Flicker Free Operation for TV and Film
  • Adjustable LED Refresh Rate and Gamma Brightness
  • Quiet Fan Cooling

Specifications:

    Source

  • High Power 130W Cool White 5,600K LED Engine
  • 50,000 Hour Average LED Life*
  • *May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.

    Photometric Data

  • >90CRI | 11,000+ Total Lumens
  • Effects

  • Electronic Strobe
  • Variable Dimming Curve Modes
  • Gobos

  • Supports "B" Size Metal, HT Transparency Gobos**
  • **Gobo Holder Not Included

    Control / Connections

  • 2 DMX Channel Modes (4 total channels)
  • 4 Button Control Panel
  • LED Menu Display
  • 3/5pin DMX In/Out
  • powerCON True 1 In/Out
  • With Wired Digital Communication Network
  • Size / Weight

  • Length: 24.3" (618mm)
  • Width 12.2" (310mm)
  • Vertical Height: 15.7" (398mm)
  • Weight: 21.0 lbs. (9.5kg)
  • Electrical / Thermal

  • Quiet Fan Cooling
  • AC 100-240V - 50-60Hz
  • 160W Max Power Consumption
  • 14°F to 113°F (-10°C to 45°C)
  • Approvals / Ratings

  • CE | cETLus | IP20
  • Firmware Updates

  • Current Version: V1.1.4
