MA Lighting MA4010516-1 MA grandMA3 4-Port Node POE

More MA Lighting products

Write a review Q&A SKU: MA4010516-1 Solotech ID#: 115040
1 of 3
Get a quote

Need help? Contact our product specialists.

View full details

Need help? Contact our product specialists.

Description

MA Lighting MA4010516-1 MA grandMA3 4-Port Node POE

The grandMA3 4Port Node PoE is the most popular converter for Ethernet to DMX data in a half width, 1RU housing. The Node synchronously outputs 4 DMX universes from any grandMA3 session and is suitable for touring and fixed installations. A unique bracket accessory allows for alternative fixing methods if required. The PoE version (Power over Ethernet) offers a simple and fast solution for power supply. Every grandMA3 xPort Node is designed for the ever-increasing demands in touring and fixed installation applications to build a reliable and stable backbone of synchronized data transportation. All Nodes are remotely configurable from any console or onPC station within the session to provide easy access to DMX output or DMX input.

Specifications:

  • Parameters: none
  • Parameters Mode2: none
  • Operating voltage/ Supply voltage: AC 100 - 240 V; 50/60 Hz
  • Power: max. 15 VA
  • Operating Temperature: 0 °C up to 40 °C / 32 °F up to 104 °F
  • Dimensions: 207 x 184 x 43 mm / 9 x 8 x 2 in (width x depth x height)
  • Net weight: 2 kg / 5 lbs

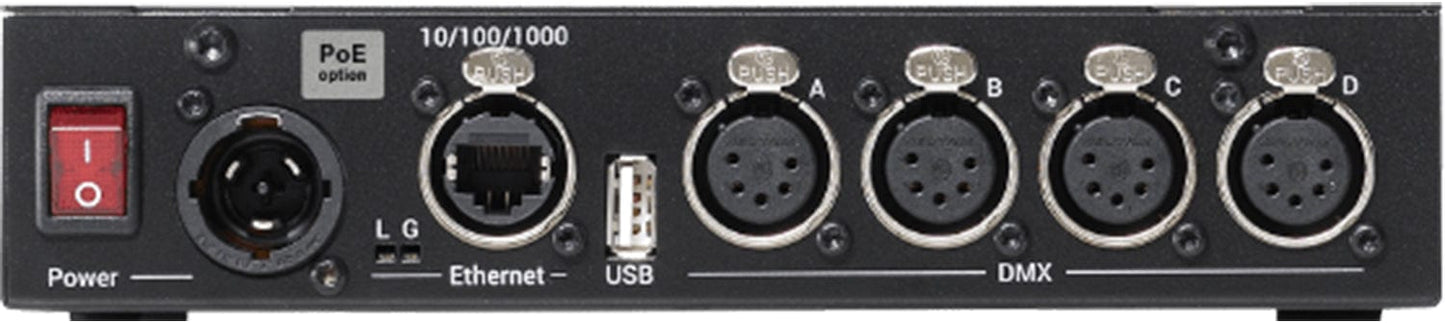

  • Connectors:
    • 1 x powerCON TRUE1
    • 1 x etherCON/RJ45
    • 4 x DMX512-A Out (5pin XLR female)
    • 1 x USB 2.0 (type A)
