MA Lighting MA4011702 MA grandMA3 4-Port Node DIN-Rail

The grandMA3 4Port Node DIN-Rail is a tailor-made and cost-effective solution for converting mid-sized data volumes from Ethernet to DMX. The Node synchronously outputs 4 DMX universes from any grandMA3 session and can be entirely powered by PoE (Power over Ethernet). It is perfectly suited for any kind of fixed installation due to its modern and easy-to-mount DIN rail housing design. Every grandMA3 xPort Node is designed for the ever-increasing demands in touring and fixed installation applications to build a reliable and stable backbone of synchronized data transportation. All Nodes are remotely configurable from any console or onPC station within the session to provide easy access to DMX output or DMX input.

Specifications:

• Parameters: none
• Parameters Mode2: none
• Operating voltage/ Supply voltage:
  • AC 100 - 240 V; 50/60 Hz
  • PoE (IEEE 802.3af; 48 V DC/max. 12 W)
• Power: max. 15 VA
• Operating Temperature: -10 °C up to 50 °C / 14 °F up to 122 °F
• Dimensions: 150 x 50 x 90 mm / 6 x 2 x 4 in (width x depth x height)
• Net weight: 1 kg / 3 lbs

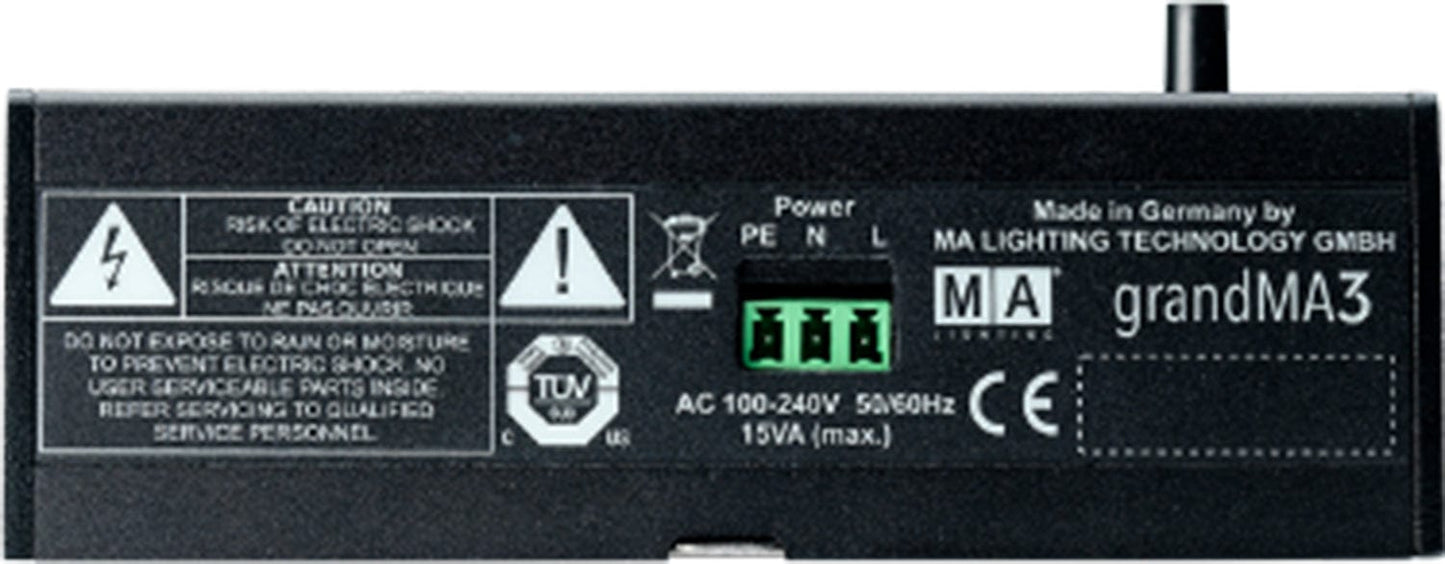

• Connectors:
  • 1 x Power (3pin PCB connector)
  • 1 x Ethernet/RJ45
  • 4 x DMX512-A Out (3pin PCB connector)
  • 1 x USB 2.0 (type A)
