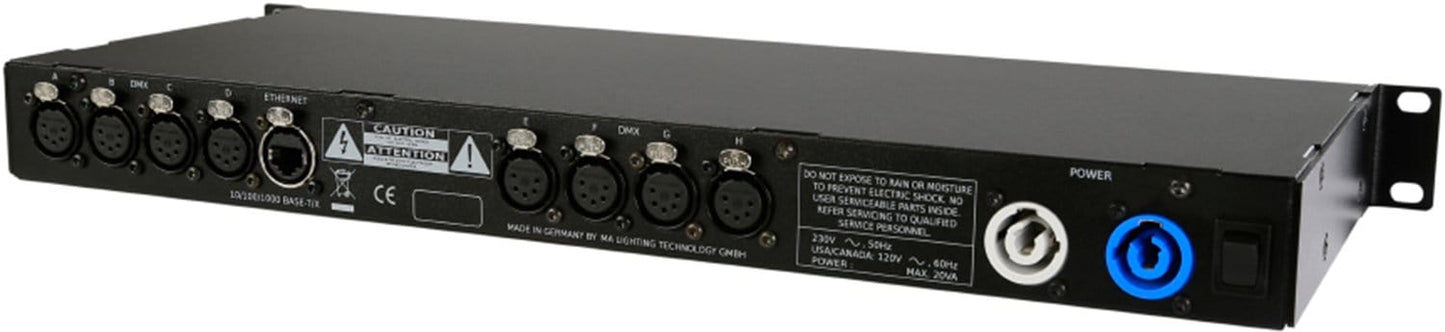

MA Lighting MA 8Port Node onPC DMX Data Converter

The MA 8Port Node, MA 4Port Node,MA 4Port Node WM (Wall Mount), MA 2Port Node, MA 2Port Node WM (Wall Mount) set an additional benchmark in MA Lighting’s networking product range as they feature the 1Gbit/s bandwidth capability. They allow the conversion of Ethernet data into DMX or vice versa and fit perfectly into the grandMA2 system and its MA-Net2 protocol, which is based on this high speed to ensure maximum performance. Optimised for touring and installation purposes, all products have a rugged steel housing for a long life even under harsh conditions. The Nodes offer a menu button, a USB connector and a 2" colour TFT as well as LEDs displaying the current status. All of these ensure a comfortable operation. The MA xPort Nodes are fully configurable from the grandMA2 consoles or from grandMA2 onPC. To achieve the highest flexibility, each DMX port can be individually configured as DMX in or DMX out.

Features:

• Speaks MA-Net2, Art-Net and sACN via 1Gbit/s connection
• Fully configurable from a grandMA2 console/grandMA2 onPC
• 2" colour TFT display
• Rugged steel housing for flexible use or mobile applications

Specifications:

• Operating voltage/ Supply voltage: 100V-240V, 50/60Hz
• Power: 30VA
• Dimensions: 485 x 47 x 190mm / 19 x 1.8 x 7.5inch
• Net weight: 2.2kg / 4.8lbs
• Output connectors:
  • 8 x XLR 5pin (DMX)
  • 1 x CTRL (future use)
  • 1 x etherCON
• Input connectors:
  • 1 x powerCON
  • 1 x USB
