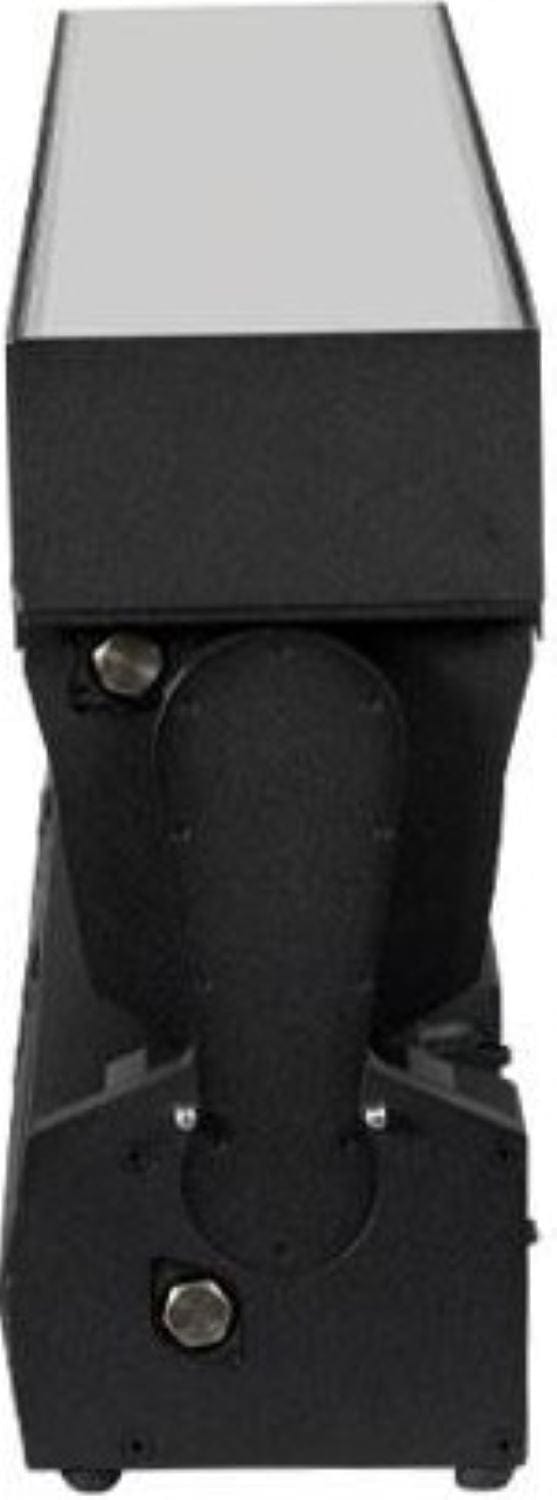

GLP Impression X5 18 x 40 Watt RGBL WIP LED Bar
The GLP impression X5 IP Bar is an IP65 rated, linear LED batten with 18 powerful 40 W RGBL LED's, a wide zoom range, and the new GLP iQ.Gamut color calibration algorithm that creates perfect white spectrums with excellent color rendering. The new squared lens design ensures maximum lumen efficiency and gives an unprecedented curtain of light at its narrowest angle of just 4.5°, and delivering smooth and homogenous washes all the way out to its widest 60° wash. As a part of the new GLP X5 family it offers a wide feature package, including selectable calibrated white points, a tungsten simulation channel, magenta / green correction, virtual color wheel and variable CTC, along with twin layer effects with plenty of dynamic pattern macros. The impression X5 IP Bar offers the patented fast tilt movement in combination with seamless pixel pitch across fixtures, and features wired and wireless control as standard. The impression X5 IP Bar’s enclosure is just as suitable for indoor use on the stage to protect against confetti, fog, pyro and dust.
Features:
-
LED Light Source - 18x 40 W RGBL with individual pixel control same pixel pitch between fixtures
-
Movement 195° Tilt - 16 bit with automatic position correction
-
Innovative Features and Technologies - iQ.Gamut color algorithm, Tungsten Simulation, Magenta/Green-Shift NFC via iQ.Service App, Subfixture Mode
-
IP65 - fully weatherproof housing for customized external front accessory
Specifications:
- Light Source:
- Type: RGBL LED
- Light Source Count: 18
- Light Source Power: 18x 40 W
- Light Source Lifetime: 50,000 h
- LED Refresh Rate: Low, Optimal (Default), High 1, High 2, Max
- CCT: 6,500 K
- Duv: perfect white point matches with low Duv values
- CRI (Ra): 6,500 K: 90 | 3,200 K: 85
- TLCI: 6,500 K: 90 | 3,200 K: 75
- TM-30-15: 6,500 K: Rf/Rg: 87/105 | 3,200 K: Rf/Rg: 85/110
- Optical System:
- Output: up to 7,500 lm
- Min. Zoom: 4.5°
- Max. Zoom: 60°
- Zoom Ratio: 1:13
- Output Lens: 18x 48x48mm (square)
- Effects:
- Dimmer: 0 – 100%; 16 bit
- Shutter: Strobe, Pulse, Sparkel, etc.
- Color mixing:
- RGB
- RGBL
- x;y
- Color Mix Priority: different Layer Priority settings
- CTC (Color Temperature Control): 2,500 – 10,000 K
- CQC (Color Quality Control):
- High Output (HO)
- High Quality (HQ)
- Desaturation
- Magenta/Green-Shift: yes
- Tungsten Simulation: 8x linked to fix CCT, 8x relative to Colormix
- Color Wheel: virtual Color wheel, 64 LEE referenced colors
- Pattern Effects: 50 dynamic pattern macros with special effects
- Tilt Movement Angle: 195°, 16 bit
- Zoom speed: super fast zoom mechanics
- Control:
- DMX channels: M1: 20 / M2: 33 / M3: 48 / M4: 84 / M5: 63 / M6: 81
- Control Modes: 6
- Protocol:
- DMX (USITT DMX512-A)
- RDM (ANSI/ESTA E1.20)
- Art-Net
- sACN
- iQ.Mesh
- optional: Lumenradio CRMX @ FPO
- Setting and addressing:
- control panel with backlit graphic display
- 4 Button Menu Navigation
- DMX
- RDM
- iQ.Mesh
- NFC via iQ.Service App
- Software Update:
- DMX link
- via DProg
- internal Webinterface
- iQ.Mesh
- Fixture2Fixture Push
- High-Res Channels:
- Intensity Global
- Tilt
- Colormix
- Performance Modes:
- fast
- normal (balanced)
- smooth
- Dimming Curves:
- linear
- soft
- S-Curve
- Fan Modes:
- regulated
- high
- medium
- low
- minimum
- Subfixture Mode
- Normal
- independent
- White points:
- optional: 8,000 K; 5,600 K; 4,200 K; 3,200 K
- Others:
- Stand Alone 1 captured Scene
- Art-Net/sACN Node
- Data Conversion
- iQ.Mesh
- SW Fixture2Fixture Push
- iQ.Gamut:
- Rec.709
- Rec.2020
- DCI P3.65
- Connectors:
- Signal connection:
- XLR 5-Pin
- In/Out
- Neutrik etherCON port A & B (failsafe)
- Power input:
- Neutrik powerCON TRUE1
- In/Out
- Electrical Specifications:
- Power input: 100 – 240 VAC / 50 – 60Hz
- Power supply: auto-ranging electronic switch-mode
- Power supply cable:
- US: 16 A, 14 AWG, UL listed, E304117, SJT, 4.9 ft
- EU: 16 A, 1.5 mm², H05VV-F, 1.5 m
- max. power (@230V): 750 W
- Thermal Specifications:
- Cooling: combined convection and forced air
- max. ambient temperature (Ta max.): 45 °C / 113 °F
- min. ambient temperature (Ta min.): 5 °C / 40 °F
- Total heat dissipation (calculated, +/-10%): 2,600 BTU/h
- Mounting Options:
- Mounting:
- 2 eyelets for safety cable
- 4 pairs of 1/4-turn locks for two rigging/installation brackets
- Orientation: any
- Location:
- Indoor permanent
- Outdoor temporary
- Construction:
- Housing Color: Black
- Housing Material:
- high-impact flame-retardand thermoplastic
- Aluminum
- steel metal plates
- Protection Rating: IP 65
- Construction Features:
- handgaps for carrying
- Tilt-Lock-System
- Alignment System
- threads for external accessory
- Smart Slide-In Filter System
- Dimensions & Weight:
- Height: 316 mm / 12.44 in
- Height (head straight down): 268.5 mm / 10.57 in
- Width (across yoke): 1,000 mm / 39.4 in
- Length: 143.5 mm / 5.65 in
- Weight: 27 kg / 59.52 lbs
