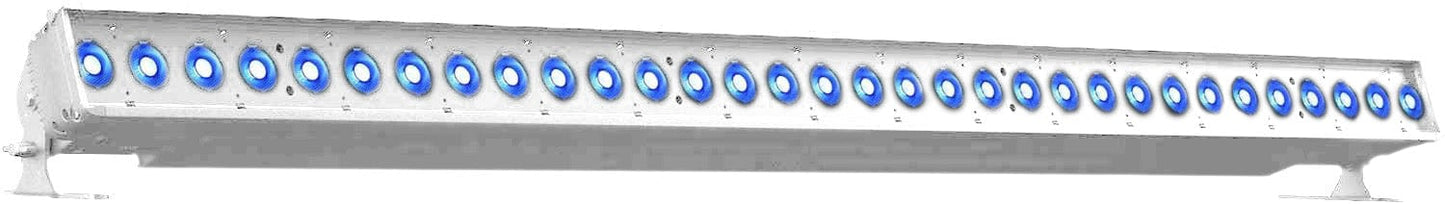

ETC ColourSource Linear

The ColourSource Linear delivers lighting in a compact, intuitive package. Its four-color mixing system produces vibrant outputs and refined pastels with exceptional brightness.

The luminaire allows for flexible beam shaping offering dual diffuser options. Also, it offers a lifespan of 55,000-hours.

The ETC ColourSource Linear is available with 5-pin DMX/XLR, in both Original, Deep Blue and Pearl arrays, and black, white or silver.

Features:

• Available in three lengths:
  • Linear 1 (0.5 Meters) - one cell of control
  • Linear 2 (1 Meter) - two cells of control
  • Linear 4 (2 Meters) - four cells of control
• ETC’s RGB-L chipset (Red, Green, Blue and Lime): Available in Original or Deep Blue
• Homogenized optics
• Simple user interface with seven-segment display
• PowerCon in and thru power connections
• DMX in and thru (5-pin XLR or RJ45)
• RDM or local configuration
• LED droop compensation for consistent output
• Optically calibrated
• Tour-ready, aluminium housing

Specifications:

• General:
  • RGB-L chipset colour-mixing wash luminaire with eight emitters
  • IP20-rated for indoor use
  • Power- and DMX-in/thru connections for simple setup
  • Seven-segment, three-button interface
  • 12 onboard, customizable pre-sets and five sequences
• Physical:
  • Rugged, die-cast, aluminium housing
  • Two secondary lens slots
  • Available in black, white or silver - Custom colours available upon request
  • Trunnions included
• Electrical:
  • 100VAC to 240VAC 50/60Hz universal power input
  • PowerCon in and thru power connections
  • Up to 9 cells (0.5 meter segments, 15A max) may be linked via power thru connector
  • Up to 10 cells (0.5 meter segments) total per circuit when used with ETC R20 relay module or Unison® Echo Relay Panel. - Consult breaker trip curves when used with other equipment
  • Requires power from a non-dimmable source
  • Inrush (Linear 1/Linear 2/Linear 4): - 120V: 35A/35.6A/67.5A (First half-cycle) - 240V: 49A/85.6A/153A (First half-cycle)
  • ETL Listed to UL1573
• LED:
  • 55,000-hour LED life (70% intensity after 55,000 hours)
  • 40 Luxeon® Z LED emitters (five per optic)
• Colour:
  • Exclusive RGB-L Colour array - Also available in Deep Blue array
  • Unparalleled brightness and colour range
  • Droop compensation maintains colour accuracy during use
  • Optically calibrated to ensure consistency across fixture
• Optical:
  • Homogenized optics for a consistent, smooth beam
  • Primary field angle of 24.9° and beam angle of 14.5°
  • Secondary lenses available for multiple beam-spread options. Refer to accessories charts for lenses available
• Control:
  • DMX512 in and thru via five-pin XLR or RJ45 connectors (End-of-line termination required)
  • RGB, IRGBS, Direct and single channel control (See DMX control table for additional information)
  • 15-bit virtual dimming engine provides smooth, high-quality theatrical fades
  • RDM support for address and setting changes
  • Local control of pre-sets (12) and sequences (5)
• Thermal:
  • Luminaire is designed for continuous operation up to 104°F (40°C) ambient temperature and requires free flow of air around fixture housing Ambient operating temperature of 32° to 104°F (0° to 40°C)
  • Active electronic thermal management using variable-speed fan
