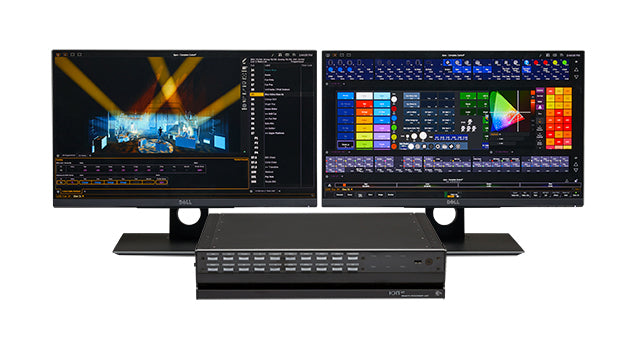

ETC Ion Xe RPU Lighting Processor
The Ion Xe RPU lighting processor delivers lighting control without the complexity.
This lighting processor features a single cue list workflow, making it ideal for smaller venues and touring productions. Also, it harness award-winning colour tools, Augment3d's 3D programming and visualisation environment to pre-visualise your show before execution.
Features:
- 2K or 12K output
- Convenient rack-mount form factor
- Supports up to two multi-touch external monitors
Specifications:
- 2U 19-inch rack-mount form factor
- Supports two external display port monitors (1920x1080 minimum, 3840x2160 maximum), with optional single-touch or multi-touch
screen control and DDC/CI support
- 20 user-programmable front panel buttons
- Six front panel LED status indicators
- Included USB keyboard
- Solid-state hard drive
- IEC power input (100–240 VAC at 50/60 Hz), fused mains power switch, locking regionalized power cable included
- Two individually configurable Gigabit Ethernet ports, RJ45 connectors
- One 802.11ac WiFi Ethernet adapter (to be enabled with future software)
- Bluetooth 5.1 for connecting input accessories (to be enabled with future software)
- sACN and Art-Net network output protocols
- Four DMX-512 / RDM 5-pin XLR ports
- Contact closure triggers via D-Sub connector
- USB 3.1 ports, for flash drives, pointing devices, keyboards (5 USB-A ports, 2 USB-C ports)
- Multiple MIDI and/or SMPTE timecode inputs, MIDI In and Out, Analog/Serial Inputs, OSC transmit/receive, UDP transmit/receive through
network interface or Response Gateways
- Power consumption approximately 2 A at 120 V or 230/240 V
- Ambient room temperature 0°C to 35°C (32°F to 95°F)
- Ambient humidity up to 90% non-condensing
- 2U 19-inch rack-mount form factor
- Supports two external display port monitors (1920x1080 minimum, 3840x2160 maximum), with optional single-touch or multi-touch
screen control and DDC/CI support - 20 user-programmable front panel buttons
- Six front panel LED status indicators
- Included USB keyboard
- Solid-state hard drive
- IEC power input (100–240 VAC at 50/60 Hz), fused mains power switch, locking regionalized power cable included
- Two individually configurable Gigabit Ethernet ports, RJ45 connectors
- One 802.11ac WiFi Ethernet adapter (to be enabled with future software)
- Bluetooth 5.1 for connecting input accessories (to be enabled with future software)
- sACN and Art-Net network output protocols
- Four DMX-512 / RDM 5-pin XLR ports
- Contact closure triggers via D-Sub connector
- USB 3.1 ports, for flash drives, pointing devices, keyboards (5 USB-A ports, 2 USB-C ports)
- Multiple MIDI and/or SMPTE timecode inputs, MIDI In and Out, Analog/Serial Inputs, OSC transmit/receive, UDP transmit/receive through
network interface or Response Gateways - Power consumption approximately 2 A at 120 V or 230/240 V
- Ambient room temperature 0°C to 35°C (32°F to 95°F)
- Ambient humidity up to 90% non-condensing
