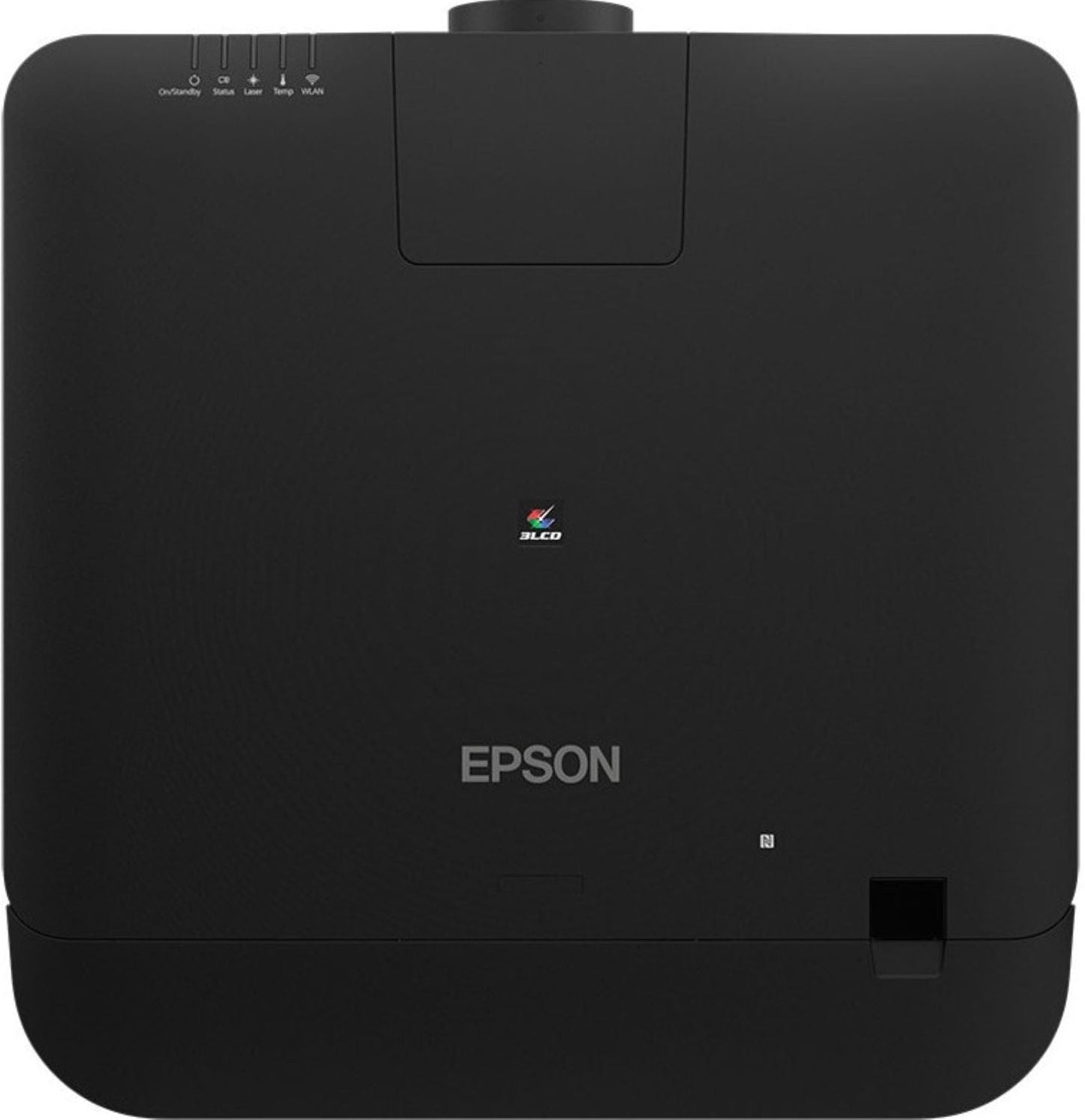

EPSON V11HA68820 High Brightness EB-PU2213B Projector, 13,000 Lumens, WUXGA - Black

Premium large venue laser projector with 4K enhancement[1].

Experience the power and flexibility of the EB-PU2213B 13,000-lumen[2] large venue laser projector. Featuring a sleek, black cabinet, this premium laser projector is optimized for live events with 3G-SDI input and output to accommodate daisy-chaining and long cable runs, plus a mechanical shutter to protect the projector during laser light shows.

The EB-PU2213B uses a 20,000-hour virtually maintenance-free laser light source[3]. It also features a hermetically sealed optical engine for high dust resistance and a filterless cabinet for low-maintenance operation.

The projector pairs with 9 optional powered lenses (sold separately) to simplify installation and includes a host of premium features for fast setup, such as built-in NFC functionality[4], and the optional attachable PixAlignTM camera to streamline multi-projector setups.

NOTE: Camera, lens, frame, and mount accessories sold separately.

• 13,000 lumens of equal white and color brightness[2]
• WUXGA with 4K Enhancement[1]
• 20,000-hour virtually maintenance-free laser light source[3]
• 9 optional powered lenses (sold separately)

• Incredible color — Epson® 3-chip 3LCD technology produces 13,000 lumens of equal white and color brightness[2]
• WUXGA with 4K Enhancement1 — accepts 4K content and delivers up to 4.6 million pixels on-screen for an incredibly crisp and vibrant image
• Long-lasting laser light source — 20,000-hour virtually maintenance-free laser light source[3]
• Simplified installation — 9 optional powered lenses (sold separately), including an ultra short-throw .35 throw lens with unique zero offset design, provide enhanced flexibility and convenience during installation
• Engineered for reliability — hermetically sealed optical engine offers high dust resistance while filterless cabinet and liquid cooling system support easy, low maintenance operation
• Ideal for live event applications — 3G-SDI input and output easily accommodate daisy-chaining and long cable runs; mechanical shutter helps protect projector during laser light shows
• Outstanding image quality — high native contrast ratio produces deep blacks; frame interpolation delivers realistic moving images; HDR support[4] and scene adaptive gamma correction for true-to-life images
• Fast installation — built-in NFC functionality[5] to streamline multi-projector
• installations using the easy-to-use Epson Projector Configuration Tool (EPCT)[6] mobile app for Android™ and iOS®—
• Optional attachable PixAlign™ camera — provides access to powerful features, including projector stacking assist function[7], tiling assist[7] for edge blends, color calibration[8] and screen matching[8]

Specifications

• General
• Projection System— High-aperture Epson 3LCD, 3-chip technology
• Projection Method— Front/rear/ceiling mount
• Driving Method— Poly-silicon TFT Active Matrix
• Pixel Number— 2,304,000 dots (1920 x 1200) x 3
• Signal Input— Maximum Display Resolution: 4096 x 2160 (resizing display); Display Resolution: 1920 x 1200 pixels
• Native Resolution— WUXGA with 4K Enhancement[1] (1920 x 1200 x 2)
• Resolution on Screen— WUXGA with 4K Enhancement[1]/4.6 million pixels
• Aspect Ratio— Supports 4:3, 16:9, 16:10
• Pixel Arrangement— Cross stripe
• Color Brightness[2]— Color Light Output: 13,000 lumens
• White Brightness[2]— White Light Output: 13,000 lumens
• Contrast Ratio— 2,500,000:1 (Dynamic Contrast: On)
• Brightness Uniformity (Typical)— 0.85
• Color Reproduction— Up to 1.07 billion colors
• Lens Shift— Vertical: ±60%; horizontal: ±18%
• Keystone Correction— Vertical: ±45 degrees; horizontal: ±30 degrees
• Illumination Technology— Laser Diode
• Projection Lens (Standard)
• See website for information on optional lenses.
• Standard Lens— ELPLM15 (sold separately)
• Type— Powered shift/focus/zoom
• F-Number— 2.0 – 2.1
• Focal Length— 14.8 mm – 17.7 mm
• Zoom Ratio— Optical zoom: 1.0 – 1.6
• Throw Ratio Range— 1.57 – 2.56
• Lens Shift— Vertical: ±60%; horizontal: ±18%
• Other Features
• Operating Temperature— 32 ˚ to 122 ˚F (0 ˚ to 50 ˚C)
• Power Supply Voltage— 100 – 120 V ± 10%, 50/60 Hz AC
Power Consumption
• 886 W (Normal / Custom)
• 646 W (Quiet / Extended)
• 2.0 W Standby (Network Standby)
• 0.4 W Standby (Energy Saving)
• Fan Noise— 34 dB (Normal Mode); 29 dB (ECO)
• IP Rating— IP5X9
• Security— Security cable hole, lens lock, Kensington® lock provision, wireless LAN unit lock
• Video I/O
• Input Signal — Input Video Signal (HDMI®, DVI-D and HDBaseT™ ports) 480i/480p/576i/576p/720p/1080i/1080p/3840 x 2160/ 4096 x 2160
• Interfaces
• 3G-SDI in/out
• HDMI x 1 (HDCP 2.3)
• HDBaseT x 1
• DVI-D x 1
• VGA x 1
• Variable audio out: Mini Stereo x 1
• USB Type B x 1
• USB Type A x 2 (5 V, 2.0 A)
• USB Type A for Wireless LAN (optional)
• Serial: RS-232C x 1 (9-pin)
• Remote Mini Stereo
• Network: RJ-45
• Dimensions / Weight
• Including Feet (W x D x H)— 23.1" x 19.4" x 8.6"
• Weight— 52.2 lb (23.7 kg)
• Remote Control
• Features— Power; Source Search Selection; Lens Shift/Zoom/Focus; Test Pattern Selection; A/V Mute, Freeze, User ID, Auto Aspect, Color Mode, Number, Page Up and Down, E-Zoom, Volume, Help, Menu, Enter, ESC and Pointer Functions
• Operating Angle
• Front: Right/Left: 60 to +60; Upper/Lower: +30 to 30 degrees
• Rear: Right/Left: 30 to +30; Upper/Lower: +40 to +10 degrees
• Operating Distance— 98 ft
• Eco Features
• RoHS compliant
• Recyclable product[10]
• Epson America, Inc. is a SmartWay® Transport Partner[11]

[1] 4K Enhancement Technology shifts each pixel to surpass Full HD resolution on screen.

[2] Color brightness (color light output) and white brightness (white light output) will vary depending on usage conditions. Color light output measured in accordance with IDMS 15.4; white light output measured in accordance with ISO 21118.

[3] No required maintenance for the light source for up to 20,000 hours. Approximate time until brightness decreases 50% from first usage. Measured by acceleration test assuming use of 0.04 - 0.20 mg/m3 of particulate matter. Time varies depending on usage conditions and environment. Replacement of parts other than the light source may be required in a shorter period.

[4] HDR performance available with select third-party devices. For more information, see www.epson.com/hdrcompatibility

[5] NFC requires use of a device that includes NFC, and may require additional software.

[6] Internet connection required for download. Data usage fee may apply.

[7] Requires Epson external camera or built-in camera for each projector and the Epson Projector Professional Tool app.

[8] Using separate camera for each projector.

[9] IP5X-certified optical engine and laser light source module in accordance with IEC standard 60529.

[10] For convenient and reasonable recycling options, visit www.epson.com/recycle

[11] SmartWay is an innovative partnership of the U.S. Environmental Protection Agency that reduces greenhouse gases and other air pollutants and improves fuel efficiency.
