Description

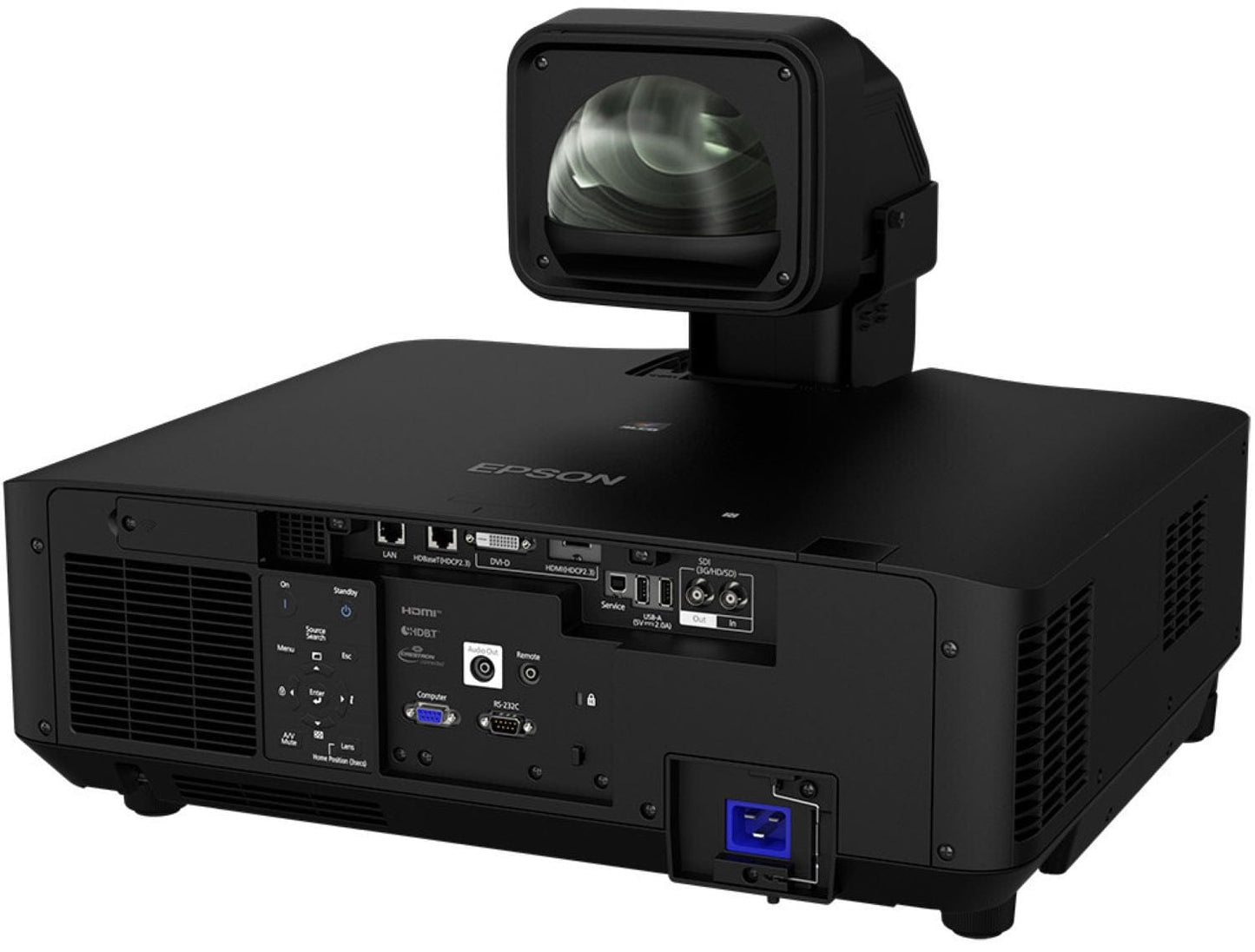

EPSON High Brightness EB-PU2220B Projector - 20000 Lumens - WUXGA - Black

Experience the power and flexibility of the EB-PU2220B 20,000-lumen large venue laser projector, the world's smallest and lightest 20,000-lumen projector. Featuring a sleek, black cabinet, this premium laser projector is optimized for live events with 3G-SDI input and output to accommodate daisy-chaining and long cable runs, plus a mechanical shutter to protect the projector during laser light shows.

The EB-PU2220B produces ultra bright, 20,000-lumen images and uses a 20,000-hour virtually maintenance-free laser light source. It also features a hermetically sealed optical engine for high dust resistance and a filterless cabinet for low-maintenance operation.

The projector pairs with 9 optional powered lenses (sold separately) to simplify installation and includes a host of premium features for fast setup, such as built-in NFC functionality, and the optional attachable PixAlignTM camera to streamline multi-projector setups.

Features:

  • The world's smallest and lightest 20,000-lumen projector — produces incredibly bright images from a light and compact body
  • Incredible color — Epson® 3-chip 3LCD technology produces 20,000 lumens of equal white and color brightness
  • WUXGA with 4K Enhancement — accepts 4K content and delivers up to 4.6 million pixels on-screen for an incredibly crisp and vibrant image
  • Long-lasting laser light source — 20,000-hour virtually maintenance-free laser light source
  • Simplified installation — 9 optional powered lenses (sold separately), including an ultra short-throw .35 throw lens with unique zero offset design, provide enhanced flexibility and convenience during installation
  • Engineered for reliability — hermetically sealed optical engine offers high dust resistance while filterless cabinet and liquid cooling system support easy, low maintenance operation
  • Ideal for live event applications — 3G-SDI input and output easily accommodate daisy-chaining and long cable runs; mechanical shutter helps protect projector during laser light shows
  • Outstanding image quality — high native contrast ratio produces deep blacks; frame interpolation delivers realistic moving images; HDR support and scene adaptive gamma correction for true-to-life images
  • Fast installation — built-in NFC functionality to streamline multi-projector installations using the easy-to-use Epson Projector Configuration Tool (EPCT) mobile app for Android™ and iOS®

Specifications:

  • Projection System: High-aperture Epson 3LCD, 3-chip technology
  • Projection Method: Front/rear/ceiling mount
  • Driving Method: Poly-silicon TFT Active Matrix
  • Pixel Number: 2,304,000 dots (1920 x 1200) x 3
  • Signal Input: Maximum Display Resolution: 4096 x 2160 (resizing display); Display Resolution: 1920 x 1200 pixels
  • Native Resolution: WUXGA with 4K Enhancement (1920 x 1200 x 2)
  • Resolution on Screen: WUXGA with 4K Enhancement/4.6 million pixels
  • Aspect Ratio: Supports 4:3, 16:9, 16:10
  • Pixel Arrangement: Cross stripe
  • Color Brightness: Color Light Output: 20,000 lumens
  • White Brightness: 2 White Light Output: 20,000 lumens
  • Contrast Ratio: 2,500,000:1 (Dynamic Contrast: On)
  • Brightness Uniformity (Typical): 85%
  • Color Reproduction: Up to 1.07 billion colors
  • Lens Shift: Vertical: ±60%; horizontal: ±18%
  • Keystone Correction: Vertical: ±45 degrees; horizontal: ±30 degrees
  • Illumination Technology: Laser Diode
  • Projection Lens (Standard):
    • Standard Lens: ELPLM15 (sold separately)
    • Type: Powered shift/focus/zoom
    • F-Number: 2.0 – 2.1
    • Focal Length: 14.8 mm – 17.7 mm
    • Zoom Ratio: Optical zoom: 1.0 – 1.6
    • Throw Ratio Range: 1.57 – 2.56
    • Lens Shift: Vertical: ±60%; horizontal: ±18%
  • Operating Temperature: 32 ˚ to 122 ˚F (0 ˚ to 50 ˚C)
  • Power Supply Voltage: 220 – 240 V ± 10%, 50/60 Hz AC
  • Power Consumption:
    • 1,301 W (Normal / Custom)
    • 899 W (Quiet / Extended)
    • 2.0 W Standby (Network Standby)
    • 0.4 W Standby (Energy Saving)
  • Fan Noise: e 45 dB (Normal Mode); 37 dB (ECO)
  • IP Rating: IP5X
  • Security: Security cable hole, lens lock, Kensington® lock provision, wireless LAN unit lock
  • Dimensions / Weight:
    • Including Feet (W x D x H): 23.1" x 19.4" x 8.6"
    • Weight: 53.3 lb (24.2 kg)
