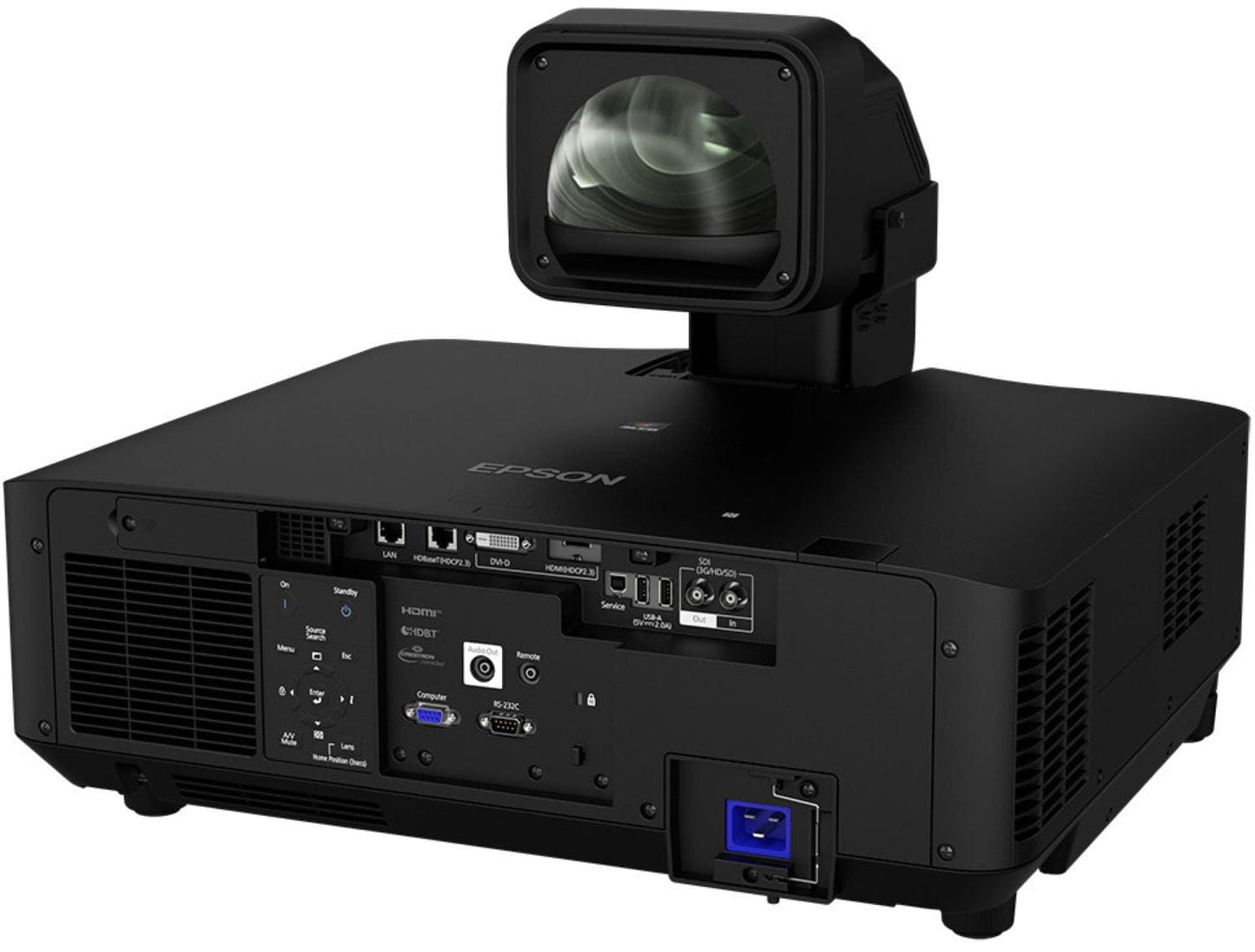

EPSON High Brightness EB-PU2216B Projector, 16,000 Lumens, WUXGA - Black
Experience the power and flexibility of the EB-PU2216B 16,000-lumen large venue laser projector. Featuring a sleek, black cabinet, this premium laser projector is optimized for live events with 3G-SDI input and output to accommodate daisy-chaining and long cable runs, plus a mechanical shutter to protect the projector during laser light shows.
The EB-PU2216B produces ultra bright, 16,000-lumen images from a standard 120 V power source and uses a 20,000-hour virtually maintenance-free laser light source. It also features a hermetically sealed optical engine for high dust resistance and a filterless cabinet for low-maintenance operation.
The projector pairs with 9 optional powered lenses (sold separately) to simplify installation and includes a host of premium features for fast setup, such as built-in NFC functionality, and the optional attachable PixAlignTM camera to streamline multi-projector setups.
Features:
-
Incredible color — Epson® 3-chip 3LCD technology produces 16,000 lumens of equal white and color brightness from a standard 120 V power source
-
WUXGA with 4K Enhancement — accepts 4K content and delivers up to 4.6 million pixels on-screen for an incredibly crisp and vibrant image
-
Long-lasting laser light source — 20,000-hour virtually maintenance-free laser light source
-
Simplified installation — 9 optional powered lenses (sold separately), including an ultra short-throw .35 throw lens with unique zero offset design, provide enhanced flexibility and convenience during installation
-
Engineered for reliability — hermetically sealed optical engine offers high dust resistance while filterless cabinet and liquid cooling system support easy, low maintenance operation
-
Ideal for live event applications — 3G-SDI input and output easily accommodate daisy-chaining and long cable runs; mechanical shutter helps protect projector during laser light shows
-
Outstanding image quality — high native contrast ratio produces deep blacks; frame interpolation delivers realistic, moving images; HDR support and scene adaptive gamma correction for true-to-life images
-
Fast installation — built-in NFC functionality to streamline multi-projector installations using the easy-to-use Epson Projector Configuration Tool (EPCT)6 mobile app for Android™ and iOS®
-
Optional attachable PixAlign™ camera — provides access to powerful features, including projector stacking assist function, tiling assist for edge blends, color calibration8 and screen matching
Specifications:
- Projection System: High-aperture Epson 3LCD, 3-chip technology
- Projection Method: Front/rear/ceiling mount
- Driving Method: Poly-silicon TFT Active Matrix
- Pixel Number: 2,304,000 dots (1920 x 1200) x 3
- Signal Input: Maximum Display Resolution: 4096 x 2160 (resizing display); Display Resolution: 1920 x 1200 pixels
- Native Resolution: WUXGA with 4K Enhancement (1920 x 1200 x 2)
- Resolution on Screen: WUXGA with 4K Enhancement/4.6 million pixels
- Aspect Ratio: Supports 4:3, 16:9, 16:10
- Pixel Arrangement: Cross stripe
- Color Brightness: Color Light Output: 16,000 lumens
- White Brightness: White Light Output: 16,000 lumens
- Contrast Ratio: 2,500,000:1 (Dynamic Contrast: On)
- Brightness Uniformity (Typical): 85%
- Color Reproduction: Up to 1.07 billion colors
- Lens Shift: Vertical: ±60%; horizontal: ±18%
- Keystone Correction: Vertical: ±45 degrees; horizontal: ±30 degrees
- Illumination Technology: Laser Diode
- Projection Lens (Standard):
- Standard Lens: ELPLM15 (sold separately)
- Type: Powered shift/focus/zoom
- F-Number: 2.0 – 2.1
- Focal Length: 14.8 mm – 17.7 mm
- Zoom Ratio: Optical zoom: 1.0 – 1.6
- Throw Ratio Range: 1.57 – 2.56
- Lens Shift: Vertical: ±60%; horizontal: ±18%
- Operating Temperature: 32 ˚ to 122 ˚F (0 ˚ to 50 ˚C)
- Power Supply Voltage: 100 – 120 V ± 10%, 50/60 Hz AC
- Power Consumption:
- 1,118 W (Normal / Custom)
- 791 W (Quiet / Extended)
- 2.0 W Standby (Network Standby)
- 0.4 W Standby (Energy Saving)
- Fan Noise: 38 dB (Normal Mode); max. 34 dB (ECO)
- IP Rating: IP5X9
- Security: Security cable hole, lens lock, Kensington® lock provision, wireless LAN unit lock
- Dimensions / Weight:
- Including Feet (W x D x H): 23.1" x 19.4" x 8.6"
- Weight: 53.3 lb (24.2 kg)
- Projection System: High-aperture Epson 3LCD, 3-chip technology
- Projection Method: Front/rear/ceiling mount
- Driving Method: Poly-silicon TFT Active Matrix
- Pixel Number: 2,304,000 dots (1920 x 1200) x 3
- Signal Input: Maximum Display Resolution: 4096 x 2160 (resizing display); Display Resolution: 1920 x 1200 pixels
- Native Resolution: WUXGA with 4K Enhancement (1920 x 1200 x 2)
- Resolution on Screen: WUXGA with 4K Enhancement/4.6 million pixels
- Aspect Ratio: Supports 4:3, 16:9, 16:10
- Pixel Arrangement: Cross stripe
- Color Brightness: Color Light Output: 16,000 lumens
- White Brightness: White Light Output: 16,000 lumens
- Contrast Ratio: 2,500,000:1 (Dynamic Contrast: On)
- Brightness Uniformity (Typical): 85%
- Color Reproduction: Up to 1.07 billion colors
- Lens Shift: Vertical: ±60%; horizontal: ±18%
- Keystone Correction: Vertical: ±45 degrees; horizontal: ±30 degrees
- Illumination Technology: Laser Diode
- Projection Lens (Standard):
- Standard Lens: ELPLM15 (sold separately)
- Type: Powered shift/focus/zoom
- F-Number: 2.0 – 2.1
- Focal Length: 14.8 mm – 17.7 mm
- Zoom Ratio: Optical zoom: 1.0 – 1.6
- Throw Ratio Range: 1.57 – 2.56
- Lens Shift: Vertical: ±60%; horizontal: ±18%
- Operating Temperature: 32 ˚ to 122 ˚F (0 ˚ to 50 ˚C)
- Power Supply Voltage: 100 – 120 V ± 10%, 50/60 Hz AC
- Power Consumption:
- 1,118 W (Normal / Custom)
- 791 W (Quiet / Extended)
- 2.0 W Standby (Network Standby)
- 0.4 W Standby (Energy Saving)
- Fan Noise: 38 dB (Normal Mode); max. 34 dB (ECO)
- IP Rating: IP5X9
- Security: Security cable hole, lens lock, Kensington® lock provision, wireless LAN unit lock
- Dimensions / Weight:
- Including Feet (W x D x H): 23.1" x 19.4" x 8.6"
- Weight: 53.3 lb (24.2 kg)
