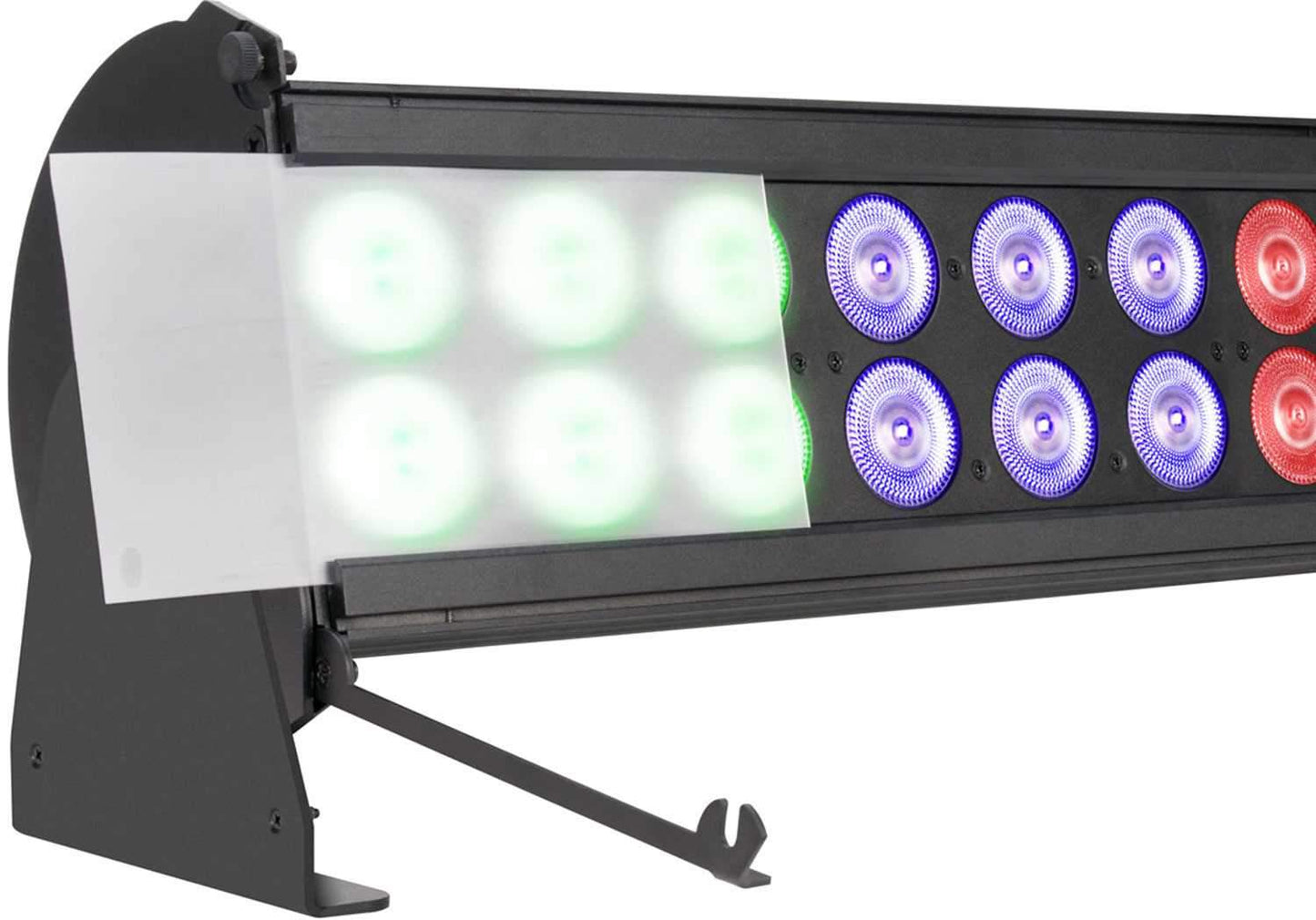

Elation Seven Batten 72 RGBAW UV Lime Wash Bar

The Seven Batten 72™ is a seven color 6 foot (1.8m) long batten wash luminaire with (60) 25W 7-in-1 RGBAW + Lime + UV (395nm) LEDs. Features include individual hue, saturation, and intensity control, RGB + dynamic amber 3 channel mode, 10 pixel mapping zones, smooth color mixing, 12 internal programs with speed and fade control, 64 unique 7-color macros, selectable dimming curve modes, adjustable LED refresh rate and gamma brightness for flicker free operation for TV and Film, DMX Art-Net, Kling-Net, and RDM (Remote Device Management) protocol support, 3/5pin DMX, RJ45 etherCON, and power in/out connections, dual 220° manual tilt adjustable mounting brackets, OLED menu display with a 4-button control panel, a multi-voltage universal auto switching power supply (100-240v), and a rugged powder coated die-cast aluminum exterior.

Features:

  • 6 Foot (1.8m) Seven Color Batten Wash Luminaire
  • (60) 25W 7-in-1 RGBAW + Lime + UV (395nm) LEDs
  • Individual Hue, Saturation, and Intensity Control
  • RGB + Dynamic Amber 3 Channel Mode
  • 10 Pixel Mapping Zones
  • Smooth Color Mixing
  • 12 Internal Programs with Speed and Fade Control
  • Selectable Dimming Curve Modes
  • Adjustable LED Refresh Rate + Gamma Brightness
  • Flicker Free Operation for TV and Film
  • Art-Net, Kling-Net, and RDM Protocol Support
  • 220° Manual Tilt Adjustable Mounting Brackets
  • Rugged Powder Coated Die-Cast Aluminum Exterior

Specifications:

  • Source:
    • (60) 25W 7-in-1 RGBAW + Lime + UV LEDs
    • 50,000 Hour Average LED Life*
      • *May vary depending on several factors including but not limited to:
      • Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
  • Effects:
    • Individual Hue, Saturation, and Intensity Control
    • RGB + Seven Color 3 Channel DMX Mode
    • 2 Pixel Mapping Zones
    • 10 Pixel Mapping Zones
    • 12 Internal Program Macros with Speed and Fade Control
    • 64 Unique 7-Color Macros
    • Selectable Dimming Curve Mode
  • Color
    • RGBAW + Lime + UV (395nm)
  • Control/Connections:
    • (10) DMX Channel Modes (78 total channels)
    • DMX and Manual Control
    • 4 Button Control Panel
    • 180° Reversible OLED Menu Display
    • Adjustable Refresh Rate (900-28,800 (Hz)
    • Adjustable Gamma Brightness (2.0, 2.2, 2.4, 2.8)
    • Art-Net, Kling-Net, and RDM Remote Device Management) Protocol Support
    • 3/5pin DMX, RJ45 etherCON, and Power In/Out
  • Size/Weight:
    • Length: 69.14" (1756.2mm)
    • Width: 7.72" (196mm)
    • Vertical Height: 7.81" (198mm)
    • Weight: 57 lbs. (25.9kg)
  • Electrical/Thermal
    • AC 100-240V - 50/60Hz
    • M1020W Max Power Consumption
    • 5°F to 113°F (-15°C to 45°C)
  • Approvals/Ratings
    • CE|IP20
