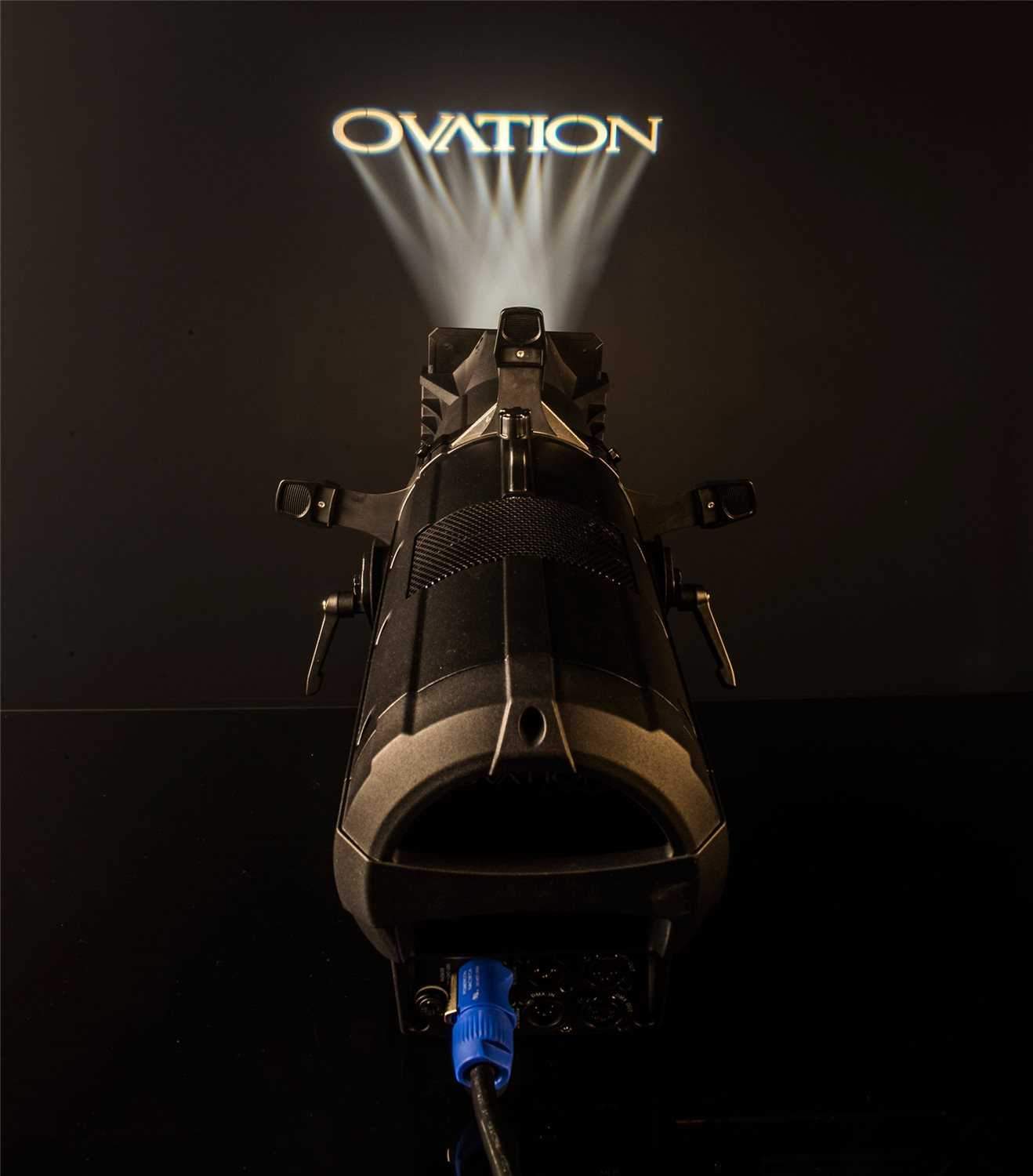

Chauvet Ovation E-260WW Warm White LED Ellipsoidal

Ovation E-260WW is powered by a single source LED that exceeds the output of a 750W tungsten light source. This warm or cool white ERS-style fixture boasts extremely smooth dimming down to the very bottom of the curve as well as a flat and even field of light for superior gobo projection. Control options like selectable PWM, RDM, and selectable dimming curves round out this virtually silent ellipsoidal.

Features:
  • Warm or cool white ERS style fixture with output exceeding a tungsten 750W source
  • Ultra smooth 16-bit dimming, and 8-bit dimming curves to complement any lighting scheme
  • Flat, even field of light for superior gobo projection
  • RDM (remote device management) for added flexibility
  • Adjustable PWM (pulse width modulation) to avoid flickering on camera
  • Virtually silent operation for use in studio and theatre applications
  • Works perfectly with industry standard lens tubes and accessories

Specifications:

Optical
  • Light source: 1 LED (WW) 202 W, (3.6 A), 3149K, 50,000 hours life expectancy; (CW) 198W, (3.5 A), 5452K, 50,000 hours life expectancy
  • Color temperature (at full): (WW) 3149 K; (CW) 5452 K
  • CRI: (WW) 91; (CW) 90
  • Beam angle (14° lens): 11°
  • Beam angle (19° lens): 13°
  • Beam angle (26° lens): 16°
  • Beam angle (36° lens): 20°
  • Beam angle (50° lens): 28°
  • Beam angle (15°–30° lens) Narrow: 12°
  • Beam angle (15°–30° lens) Wide: 14°
  • Beam angle (25°–50° lens) Narrow: 21°
  • Beam angle (25°–50° lens) Wide: 22°
  • Field angle (14° lens): 14°
  • Field angle (19° lens): 18°
  • Field angle (26° lens): 25°
  • Field angle (36° lens): 34°
  • Field angle (50° lens): 50°
  • Field angle (15°–30° lens) Narrow: 15°
  • Field angle (15°–30° lens) Wide: 29°
  • Field angle (25°–50° lens) Narrow: 26°
  • Field angle (25°–50° lens) Wide: 46°
  • Dimming modes: 4 Lumens (19° lens): 7,587
  • Lumens (26° lens): 10,284
  • Lumens (36° lens): 10,121
  • Lumens (50° lens): 9,655I
  • lluminance (14° lens): (WW) 13,439 lux @ 5 m; (CW) 16,787lux @ 5 m
  • Illuminance (19° lens): (WW) 9,256 lux @ 5 m; (CW)10,674 lux @ 5 m
  • Illuminance (/26° lens): (WW) 6,910 lux @ 5 m; (CW) 8652 lux @ 5 m
  • Illuminance (36° lens): (WW)4,053 lux @ 5 m; (CW) 5185 lux @ 5 m
  • Illuminance (50° lens): (WW)1,703 lux @ 5 m; (CW) 2181 lux @ 5 m
  • Illuminance (15°–30° lens)(Narrow): (WW) 12,430 lux @ 5 m ; (CW) 17,494 lux @ 5 m
  • Illuminance (15°–30° lens)(Wide): (WW) 5,339 lux @ 5 m; (CW) 6019 lux @ 5 m
  • Illuminance (25°–50° lens)(Narrow): (WW) 4,997 lux @ 5 m; (CW) 6144 lux @ 5 m
  • Illuminance (25°–50° lens)(Wide): (WW) 3,295 lux @ 5 m; (CW) 3169 lux @ 5 m
  • Selectable PWM: 600 Hz, 1200 Hz, 2000 Hz, 4000 Hz, 25,000 Hz
Dynamic effects
  • Dimmer: Electronic
  • Shutter/strobe: Electronic
  • Zoom: manual strobe rate: (WW) 0 to 27 Hz; (CW) 0 to 30 Hz
  • Dim modes: 4 built-in automated programs: Yes
  • Color temperature Presets: (CW) No
Construction/physical
  • Dimensions (fixture only): 19.49 x 11.22 x 19.17" (495 x 285 x 487 mm)
  • Dimensions (14° lens extended): 28.74 x 11.22 x 19.17" (730 x 285 x 487 mm)
  • Dimensions (26° lens extended): 25.91 x 11.22 x 19.17" (658 x 285 x 487 mm)
  • Dimensions (15°–30° lens): 32.87 x 14.61 x 14.61" (835 x 371 x 371 mm)
  • Dimensions (25°–50° lens): 27.17 x 14.61 x 14.61" (690 x 371 x 371 mm)
  • Weight (fixture only): 15.4 lbs. (7 kg) Weight (14° lens): 20.8 lbs. (9.43 kg)
  • Weight (26° lens): 19.4 lbs. (8.80 kg) Weight (15°–30° lens): 29.4 lbs. (13.34 kg)
  • Weight (25°–50° lens): 27 lbs. (12.25 kg)
  • Exterior color: Black
  • Gobo size (optional): "A": 94 mm (outside), 79 mm (image), 2.5 mm (max. thickness)
  • Gobo size (optional): "B": 94 mm (outside), 69 mm (image), 2.5 mm (max. thickness)
  • Accessory holder/gel frame size (14° lens): 7.5" (191 mm)
  • Accessory holder/gel frame size (19°, 26°, 36°, and 50° lens): 6.25" (159 mm)
  • Accessory holder/gel frame size (15°–30° lens): 7.5" (191 mm)
  • Accessory holder/gel frame size (25°–50° lens): 7.5" (191 mm)
Connections
  • Power connection: Edison (local) plug to Neutrik powerCon
  • Power input: Neutrik powerCon
  • Power output: Neutrik powerCon
  • Data connectors: 3- and 5-pin XLR
  • Cable length (power): 5' (1.5 m)
Control
  • Control protocol: (WW) DMX; (CW) DMX, RDM
  • DMX channels: 1, 2, 3 or 6
  • Modes/personalities: 4 personalities (1, 2, 3, 6)
Electrical
  • Input voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power linking: (WW) 8 units @ 120V; 13 units @ 208V; 14 units @ 230V; (CW) 7 units @ 120V; 12 units @ 208V; 13 units @ 230V
  • Power and current: (WW) 209W, 1.655A @ 120V, 60 Hz; (CW) 225W, 1.86 A @ 120V, 60 Hz
  • Power and current: (WW) 206W, 1.026A @ 208V, 60 Hz; (CW) 234W, 1.12 A @ 208V, 60 Hz
  • Power and current: (WW) 204W, 0.925A @ 230V, 50 Hz; (CW) 233W, 1.02 A @ 230V, 50 Hz
Certifications/Qualifications
  • CE, MET
  • IP rating: IP20, dry location
What's included
  • Ovation E-260WW/Ovation E-260CW
  • Neutrik powerCon power cord
Optional accessories
  • Professional clamps: CTC-50HC, CTC-50HCN
  • Neutrik powerCon cables3-pin or 5-pin DMX Cables
  • Color blending filters: DF60X1D, DF20D
  • RDM2go
  • Ovation zoom lenses: OEZOOM1530, OEZOOM2550
  • Gobo holder: Standard "S4" size Sandwich Style or Iris Slot Style gobo holder for "A" or "B" size gobos
Required accessories
  • Lens tube: 19°, 26°, 36°, 50°
