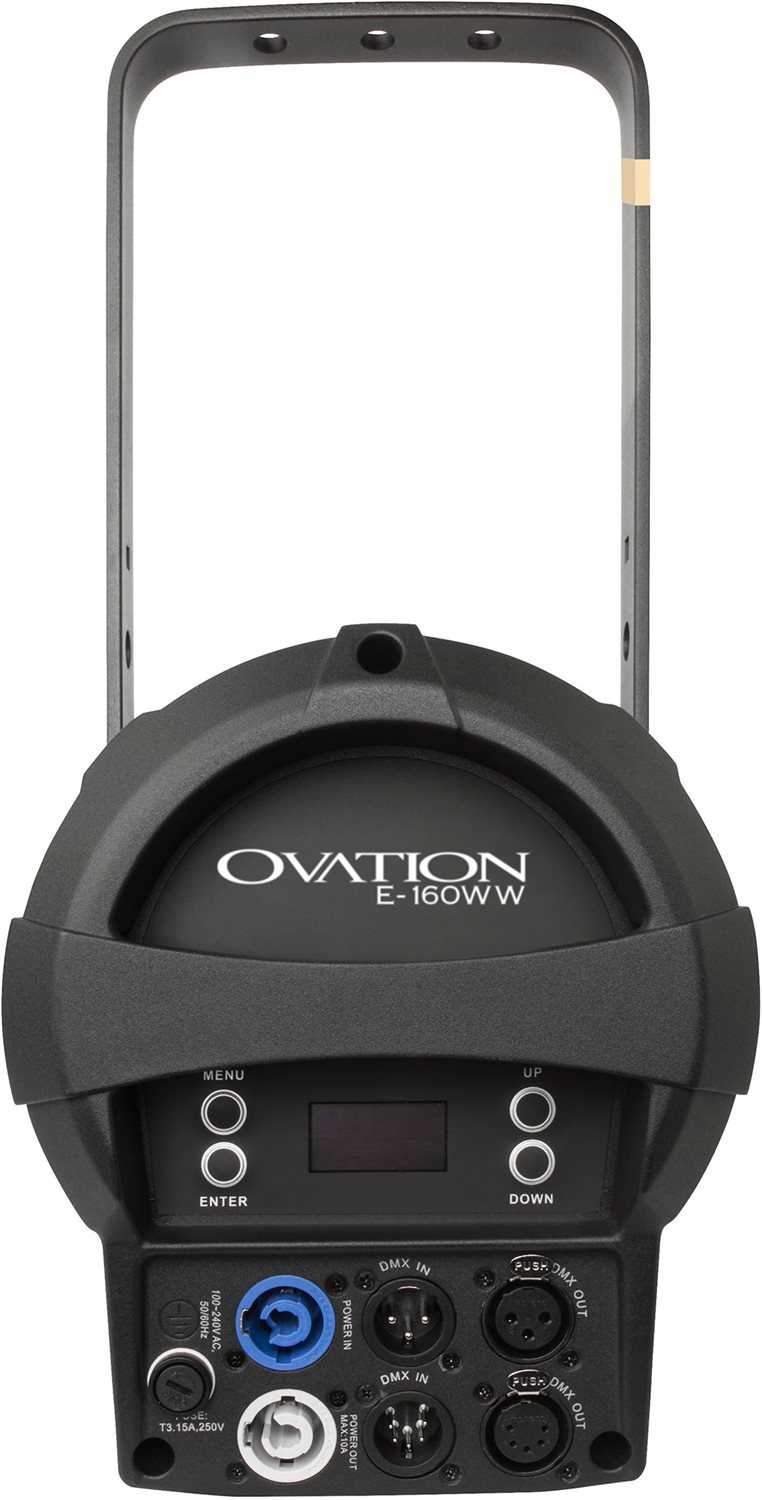

Chauvet Ovation E-160WW LED ERS Style Ellipsoidal Light

More Chauvet Professional products

Write a review Q&A SKU: OVATION-E-160WW Solotech ID#: 55255
1 of 5
Get a quote

Need help? Contact our product specialists.

View full details

Need help? Contact our product specialists.

Description

Chauvet Ovation E-160WW LED ERS Style Ellipsoidal

Ovation E-160WW is an energy saving wonder with an output that rivals a tungsten 575W light source, yet draws less than 100W of power. Dimming is extremely smooth, down to the very bottom of the curve. This virtually silent ellipsoidal projects a flat and even field of light for superior gobo projection. Control options include selectable PWM, RDM, and onboard dimming curve selections.

Features:
  • Warm white ERS style fixture with output similar to a tungsten 575 W source
  • Draws less than 100 W of power, a true electrical bill reducing fixture
  • Ultra smooth 16-bit dimming, and 8-bit dimming curves to complement any lighting scheme
  • Flat, even field of light for superior gobo projection
  • RDM (Remote Device Management) for added flexibility
  • Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera
  • Virtually silent operation for use in studio and theater applications
Dynamic effects:
  • Dimmer: Electronic
  • Shutter/strobe: Electronic
  • Zoom: manual
  • Strobe rate: 0 to 29 Hz
  • Color temperature presets: Yes
  • Dim modes: 4
Connections
  • Power connection: Edison (Local) plug to Neutrik powerCON
  • Power input: Neutrik powerCON
  • Power output: Neutrik powerCON
  • Data connectors: 3- and 5-pin XLR
  • Cable length (power): 5 ft (1.5 m)
Control
  • Control protocol: DMX
  • DMX channels: 1, 2, 3 or 6
  • Modes/personalities: 4 personalities (1, 2, 3, 6)
Optical Specifications:
  • Light Source: 1 LED (WW) 88 W, (2.3 A), 3031 K, 50,000 hours life expectancy
  • Color Temperature (at full): 3031 K
  • CRI: 90
  • Dimming modes: 4
  • Beam angle:
    • 14° lens: 8°
    • 19° lens: 12°
    • 26° lens: 16°
    • 36° lens: 20°
    • 50° lens: 31°
    • 15°–30° lens: Narrow - 10°, Wide - 15°
    • 25°–50° lens: Narrow - 18°, Wide - 24°
  • Field angle:
    • 14° lens: 14°
    • 19° lens: 18°
    • 26° lens: 25°
    • 36° lens: 33°
    • 50° lens: 50°
    • 15°–30° lens: Narrow - 16°, Wide - 29°
    • 25°–50° lens: Narrow - 28°, Wide - 48°
  • Illuminance:
    • 14° lens: 10,814 lux @ 5 m
    • 19° lens: 6,253 lux @ 5 m
    • 26° lens: 3,189 lux @ 5 m
    • 36° lens: 1,918 lux @ 5 m
    • 50° lens: 743 lux @ 5 m
    • 15°–30° lens (Narrow): 9,361 lux @ 5 m
    • 15°–30° lens (Wide): 2,947 lux @ 5 m
    • 25°–50° lens (Narrow): 2,719 lux @ 5 m
    • 25°–50° lens (Wide): 1,072 lux @ 5 m
  • Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 25,000 Hz
Construction & physical specifications:
  • Dimensions:
    • Fixture only: 19.49" x 11.22" x 19.17"
    • 14° lens extended: 28.74" x 11.22" x 19.17"
    • 26° lens extended: 25.91" x 11.22" x 19.17"
    • 15°–30° lens: 32.87" x 14.61" x 14.61"
    • 25°–50° lens: 27.17" x 14.61" x 14.61"
  • Weight:
    • Fixture only: 14.2 lb / 6.4 kg
    • 14° lens: 19.6 lb / 8.89 kg
    • 26° lens: 18.4 lb / 8.3 kg
    • 15°–30° lens: 28.2 lb / 12.7 kg
    • 25°–50° lens: 25.8 lb / 11.7 kg
  • Exterior color: Black
  • Gobo size:
    • "A": 94 mm (outside), 79 mm (image), 2.5 mm (max. thickness)
    • "B": 94 mm (outside), 69 mm (image), 2.5 mm (max. thickness)
  • Accessory holder/gel frame size:
    • 14° lens: 7.5 in (191 mm)
    • 19°, 26°, 36°, and 50° lens: 6.25 in (159 mm)
    • 15°–30° lens: 7.5 in (191 mm)
    • 25°–50° lens: 7.5 in (191 mm)
Electrical
  • Input voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power linking: 15 units @ 120 V; 26 units @ 208 V; 28 units @ 230 V
  • Power and current:
    • 103 W, 0.9 A @ 120 V, 60 Hz
    • 99 W, 0.5 A @ 208 V, 60 Hz
    • 102 W, 0.5 A @ 230 V, 50 Hz
Certifications/Qualifications
  • CE, MET
  • IP rating: IP20, dry location
What's included
  • Ovation E-160WW
  • Neutrik powerCON power cord
Required accessories (Sold separately):
  • Lens tube: 19°, 26°, 36°, 50°
*Product shown with 19° lens tube, sold separately.
