Description

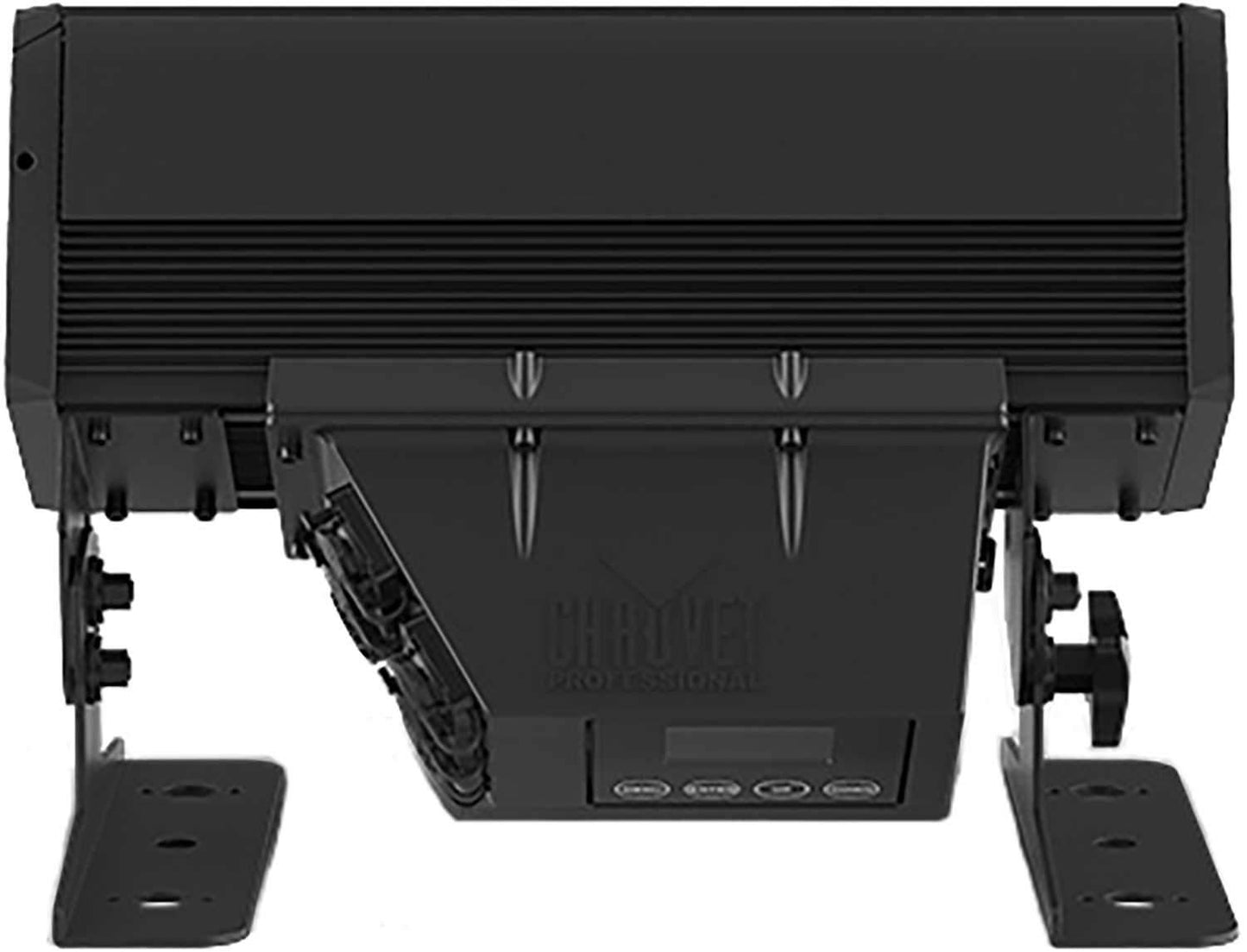

Chauvet Colorado Solo Batten 4 RGBAW LED IP65 Wash

Colorado Solo Batten 4 is a unique RGBAW 4-cell LED batten with seamless end-to-end color mixing. This compact, multi-purpose fixture has four completely homogenized, individually-controlled square sections that project smooth color-mixing without separation or dimmed lens corners. This versatile batten is IP65-rated and can be used as a wash or for pixel-mappable eye-candy effects. It also compliments their Colorado Solo Batten perfectly. This small but robust fixture was built for touring, festivals, installations, and theatrical productions. This unit includes IP-rated power, DMX, and Ethernet connections, as well as a large, password-protected display.

Features:

  • RGBAW 4-cell LED Batten with seamless end-to-end color for wash or pixel mapping
  • Completely homogenized color with no separation or dimmed lens corners
  • All-environment operation with IP rated power, DMX, and Ethernet connections
  • Color temperature presets, from 3200 K to 10000 K
  • Selectable, smooth dimming curves for programming versatility
  • Built for touring, live event, television, and theatrical productions
  • Large, easy-to-navigate display with password protection

Specifications:

    Optical

  • Light Source: 48 LEDs (8 red, 8 green, 8 blue, 8 amber, 16 white) 3 W, (612 mA) 50,000 hours life expectancy
  • Color Temperature (range): 1800 to 8000 K
  • CRI (3200 K): 77.2
  • Installed Optics: 18°
  • Beam Angle (Horizontal): 18°
  • Beam Angle (Horizontal w/ Filter): 35°
  • Beam Angle (Vertical): 17°
  • Beam Angle (Vertical w/ Filter): 16°
  • Field Angle (Horizontal): 34°
  • Field Angle (Horizontal w / Filter): 66°
  • Field Angle (Vertical): 30°
  • Field Angle (Vertical w / Filter): 32°
  • Lumens: 6,968
  • Illuminance (total): 1,270 lux @ 5 m
  • Illuminance w/ Filter (total): 432 lux @ 5 m
  • Selectable PWM: 600, 1,200, 2,000, 4,000, 6,000, 25,000
  • Dynamic Effects

  • Dimmer: Electronic
  • Shutter/Strobe: Electronic
  • Strobe Rate: 0 to 25Hz
  • Standalone Color Mixing: Yes
  • Color Temperature Presets: Yes
  • Dim Modes: 5
  • Built-in Automated Programs: Yes
  • Customizable Programs: Yes
  • Recall Custom Programs: Yes
  • Construction / Physical

  • Dimensions: 14.65 x 9.06 x 9.96 in (372 x 230 x 253 mm)
  • Dimensions (shipping size): 17.32 x 8.85 x 13.58 in (440 x 225 x 345 mm)
  • Weight:17.2 lb (z)
  • Weight (shipping weight): 20.50 lb (9.3 kg)
  • Exterior Color: Black
  • Housing Material: Aluminum die-cast
  • Accessory Holder/Gel Frame Size: 13.5 x 3.81 in (342.9 x 97 mm)
  • Connections

  • Power Connection: Edison (Local) plug to Seetronic Powerkon IP65
  • Power Input: Seetronic Powerkon IP65
  • Power Output: Seetronic Powerkon IP65
  • Data Connectors: 5-pin IP65 XLR, Seetronic etherCON IP65
  • Cable Length (power): 5 ft (1.5 m)
  • Control

  • Control Protocol: Art-Net, DMX, Art-Net to DMX, sACN, RDM
  • DMX Channels: 1 Cell: 3, 4, 5, 8, 8, 9, 10, 10, 16
  • DMX Channels: 4 Cell: 12, 16, 20, 27, 29, 31, 35, 40, 56
  • Art-Net Channels: 1 Cell: 3, 4, 5, 8, 8, 9, 10, 10, 16
  • Art-Net Channels: 4 Cell: 12, 16, 20, 27, 29, 31, 35, 40, 56
  • Modes/Personalities: 18 personalities
  • Electrical

  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power Linking: 14 units @ 120 V; 24 units @ 208 V; 26 units @ 230 V
  • Power and Current: 113 W, 0.960 A @ 120 V, 60 Hz [4.2 A inrush]
  • Power and Current: 110 W, 0.566 A @ 208 V, 60 Hz [3.60 A inrush]
  • Power and Current: 111 W, 0.516 A @ 230 V, 50 Hz [2.6 A inrush]
  • Power and Current (resting): 11 W, 0.085 A @ 120 V, 60 Hz
  • Power and Current (resting): 25 W, 0.117 A @ 208 V, 60 Hz
  • Power and Current (resting): 27 W, 0.115 A @ 230 V, 50 Hz
  • Certifications / Qualifications

  • CE, MET
  • IP Rating: IP65, temporary outdoor/wet use
  • Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)
  • What's Included

  • ColorADO Solo Batten 4, with glare shield
  • Seetronic Powerkon IP65 power cord
  • Wall Wash Filter
  • Omega Brackets
  • Quick Reference Guide
  • Optional Accessories

  • Professional Clamps: CTC-50HC, CTC-50HCN
  • Neutrik True1 power linking cables
  • 5-pin DMX Cables
  • Ethercon Cables
  • Colorado Solo Batten 4 Barndoor
