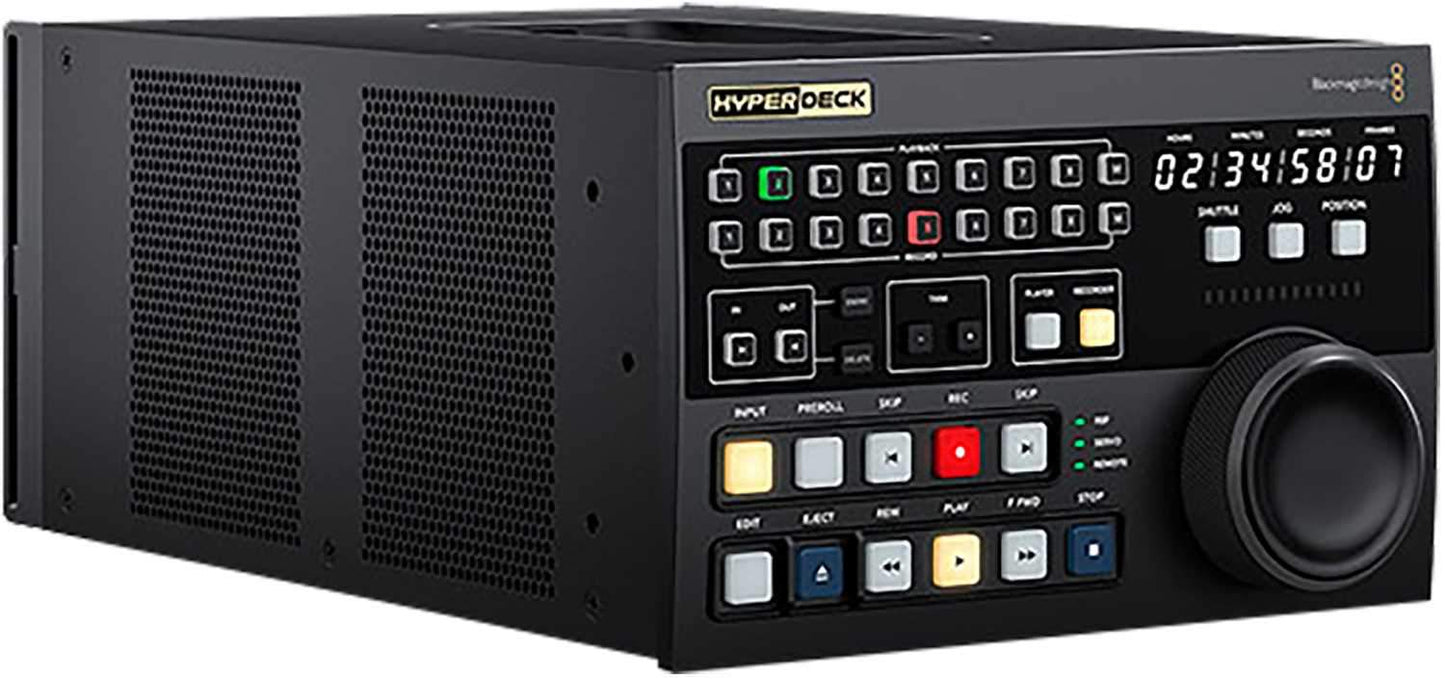

Blackmagic Design HyperDeck Extreme Control Unit

HyperDeck Extreme Control adds traditional broadcast deck controls to HyperDeck Extreme 8K. It works like a traditional broadcast deck with a familiar layout. Control up to 8 decks via industry standard RS-422 control.

Specifications:

    Connections

  • Deck Control Outputs: 8 x RS-422
  • Reference Input: Tri-Sync or Black Burst.
  • Reference Output: Follows reference input.
  • Ethernet: 1Gb/s
  • Computer Interface: 1 x USB-C for software updates.
  • Supported Protocols

  • Control Protocols: Sony
  • Software

  • Internal Software Upgrade:
    • Loaded at system start,
    • or via Blackmagic HyperDeck Setup using USB port.
  • Operating Systems

  • Mac 10.13 High Sierra, Mac 10.14 Mojave or later.
  • Windows 8.1 or Windows 10.
  • Displays

  • 8 digit, 7 segment LED timecode display.
  • Power Requirements

  • Power Supply:
    • 1 x Internal 100 - 240V AC.
    • 1 x 4 pin XLR 12V DC IN for external power or battery use.
  • Physical Installation

  • 3 rack units height, half rack width.
  • Environmental Specifications

  • Operating Temperature:: 0° to 40° C (32°to 104° F)
  • Storage Temperature:: -20° to 60° C (-4° to 113° F)
  • Relative Humidity:: 0% to 90% non-condensing
  • What's Included

  • HyperDeck Extreme Control
  • SD card with user manual.
  • Warranty

  • 12 Month Limited Manufacturer's Warranty.
