Elation PIX289 Pixel Driver 4000 V2

Pixel Driver 4000 V2™ is designed specifically for the Elation Pixel Tape 16IP, 40IP, Pixel Bar 30IP, 60IP, and 120IP series, and provides easy and versatile control options including simple on-board manual dimming and strobe control, and full pixel mapping control of 4,080 max pixels via Kling-Net, and 680 max pixels via Art-Net and sACN (streaming ACN) protocols.

The Pixel Driver 4000 V2 features a universal auto switching power supply (100-240v), a 4-button LCD control menu display, RJ45 Ethernet in/out ports, and (4) outputs which use proprietary IP rated 4pin combo cables (sold separately) that supply power and data to each pixel bar, (available in lengths from 2 to 50 feet). The Pixel Driver 4000 V2 can be mounted in a standard 19-inch rack (rack ears included) or attached to truss with a clamp (not included).

Features

  • Power/Data Supply for Elation Pixel Tape 16IP, 40IP, Pixel Bar 30IP, 60IP, and 120IP
  • Simple On-Board Manual Dimming and Strobe Control
  • Kling-Net, Art-Net, and sACN Protocol Support
  • 4,080 Max Pixel Mapping via Kling-Net
  • 680 Max Pixel Mapping via Art-Net and sACN
  • 19-inch (483mm) Rack Mount Kit Included
  • Truss Mounting Options (clamp not included)
  • Multi Unit Linking via RJ45 Ethernet
  • (4) Outputs

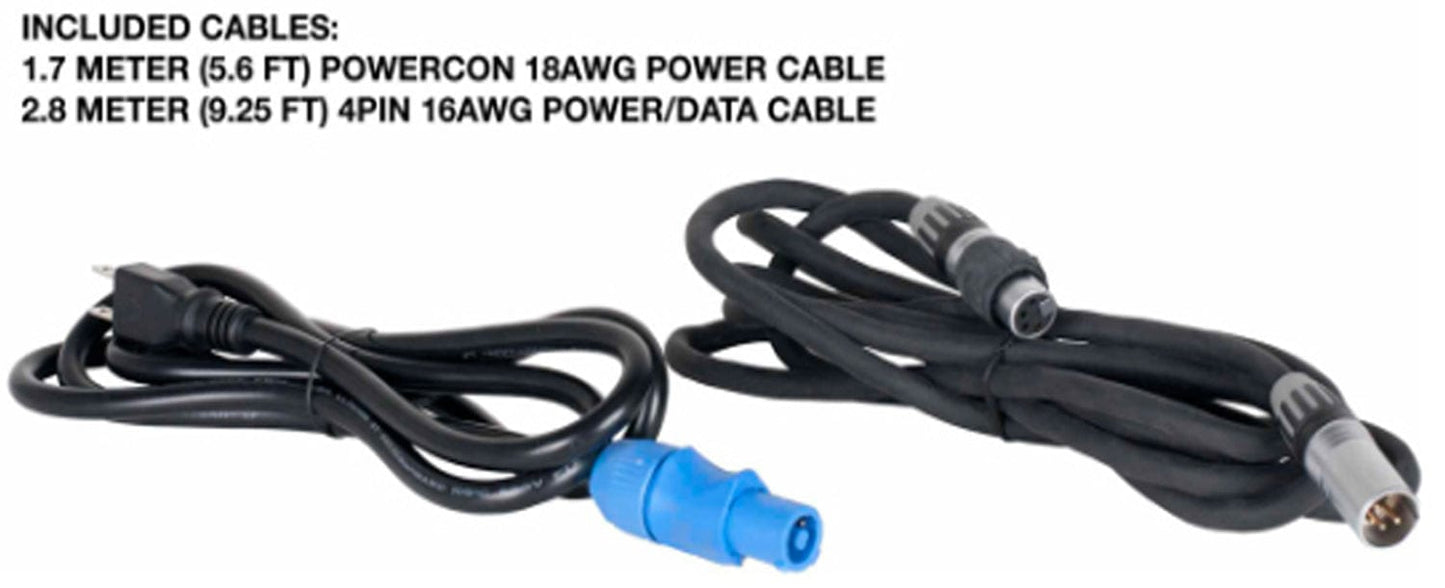

  • 5.65ft (1.7m) Power Cable Included
  • 9.25ft (2.8m) 16AWG Power/Data Cable Included
  • Proprietary IP Rated Power/Data Combo Cables*

*Available in, 16AWG; 2/3/5/10/12/15/20/25/30/50 Foot Lengths and 12AWG; 20/25/30/50 Foot Lengths. See Related Products and Accessories at the bottom of this page.

Specifications

  • CONTROL / CONNECTIONS
    • Manual RGB Mode
    • Internal Programs
    • Art-NET | sACN | Kling-NET
    • 2 RJ45 Ethernet Ports
    • 4 4pin Power/Data Outputs
    • USB Port for Firmware Updates
  • SIZE / WEIGHT
    • Length: 16.7” (425mm)
    • Width: 11.8” (301mm)
    • Height: 2.9” (74mm)
    • Weight: 9.5 lbs. (4.3kg)
  • ELECTRICAL
    • AC 100-240V - 50/60HZ
    • 800W Max Power Consumption
    • -4°F to 113°F (-20°C to 45°C)
  • APPROVALS
    • CE | cETLus (Pending)

Specifications and documentation subject to change without notice.
