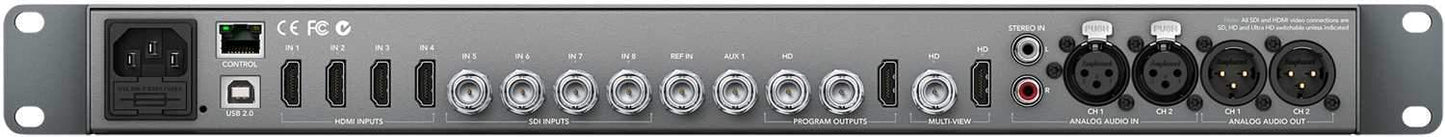

Name: Blackmagic Design ATEM Production Studio 4K Switcher
Brand: Blackmagic Design
SKU: SWATEMPSW04K

Blackmagic Design ATEM Production Studio 4K Switch

ATEM Production Studio 4K lets you connect up to 8 SD, HD or Ultra HD 4K video cameras, disk recorders and computers to do true broadcast quality work. You get all the features you expect from a professional switcher including chroma key, transitions, media pool, downstream keyers, audio mixer, multi view and the world's first 6G-SDI and HDMI 4K video connections.

Specifications:

Connections

Total Video Inputs: 8
Total Video Outputs: 6
SDI Rates: 270Mb, 1.5G, 3G, 6G.
Total Audio Inputs: 2 x XLR. 2 x RCA.
Total Audio Outputs: 2 x XLR Program.
Timecode Connection: None
SDI Video Inputs: 4 x 10-bit SD/HD/Ultra HD 4K switchable. 2 channel embedded audio.
HDMI Video Inputs: 4 x HDMI type A, 10-bit SD/HD/Ultra HD 4K switchable. 2 channel embedded audio.
SDI Audio Outputs: 2 channel embedded into SDI output.
Reference Input: Tri-Sync or Black Burst.
Video Input Re-Sync: On all 8 inputs.
SDI Program Outputs: 1 x 10-bit SD/HD/Ultra HD 4K switchable.
HDMI Program Outputs: 1 x HDMI type A, 10-bit SD/HD/Ultra HD 4K switchable.
Down Converted SDI Program Outputs: 1 x 10-bit HD (Ultra HD 4K to HD).
SDI Aux. Output: 1
Total Multi Views: 1
SDI Multi View Outputs: 1
HDMI Multi View Outputs: 1
Control Panel Connection: Ethernet supports 10/100/1000 BaseT. Allows direct connection between panel and chassis, or via network.

Standards

SD Video Standards: 525i59.94 NTSC, 625i50 PAL
HD Video Standards:
- 720p50, 720p59.94
- 1080p23.98, 1080p24, 1080p25,
- 1080p29.97, 1080p50, 1080p59.94
- 1080i50, 1080i59.94
Ultra HD Video Standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97
SDI Compliance: SMPTE 259M, SMPTE 292M, SMPTE 424M.
Video Sampling: 4:2:2
Color Precision: 10-bit
Color Space: REC 601, REC 709
HDMI Input Resolutions for Computers: 720 x 480i 59.97Hz, 720 x 576i 50Hz, 1280 x 720 59.94Hz, 1280 x 720 50Hz and 1920 x 1080 59.94Hz, 1920 x 1080 50Hz, 3840 x 2160 23.98Hz, 3840 x 2160 24Hz, 3840 x 2160 25Hz, 3840 x 2160 29.97Hz.
Colorspace Conversion: Hardware based real time.
Processing Delay: 1 Line.
Audio Mixer: 10 input x 2 channel mixer. Selectable On/Off/Audio-Follow-Video. Level and Peak metering. Master gain control. Analog outputs may be used for separate monitoring.
4K to HD Down Conversion: Yes, program x 1.

Product Specifics

Upstream Keyers: 1 with Chroma/Linear/Luma key.
Downstream Keyers: 2
Chroma Keyers: 1
Talkback Support: None
Mix Minus Support: None
Linear/Luma Keyers: 3
Transition Keyer (Stinger/DVE): None
Total Number of Layers: 4
Pattern Generators: 3
Color Generators: 2
DVE with 3D Borders & Drop Shadow: None
Display interface: Minimum monitor resolution of
1366 x 768.
Number of Windows: 1 x 10
Routable Windows: 8
Tally: Red for program and green for preview indication.
Windows Source Labels: Yes
Control Panel: Software or optional hardware panel.

Media Player

Media Players: 2
Media Pool Still Image Capacity: 20 with fill and key.
Media Pool Clip Capacity: None
Media Player Clip Length in 720 HD: None
Media Player Clip Length in 1080 HD: None
Media Player Clip Length in Ultra HD: None
Media Pool Still Image Format: PNG, TGA, BMP, GIF, JPEG and TIFF.
Media Pool Video File Format: None.
Media Pool Audio File Format: None.
Channels: Fill and key for each Media Player.

Multi View Monitoring

Multi View Monitoring: 1 x 10 Views.
Multi View Video Standard: HD.

Display

Interface: Minimum monitor resolution of 1366 x 768.
Front Panel: Built in LCD monitor for video and 42 LED buttons for Aux switching.

Software

Control Panel Included: ATEM Software Control Panel included free for Mac 10.10 Yosemite, Mac 10.11 El Capitan or later and Windows 8.1 64-bit or Windows 10 64-bit.
Tally Output: Added via Ethernet connection to Blackmagic Design GPI and Tally Interface product. (Not included.)
Software Updates: Using USB connection directly connected to Mac or Windows computers. Includes ATEM Setup Utility
Configuration: Set via ATEM Software Control Panel, excluding ATEM chassis IP address which is set via the ATEM Setup Utility connected via USB to chassis.
