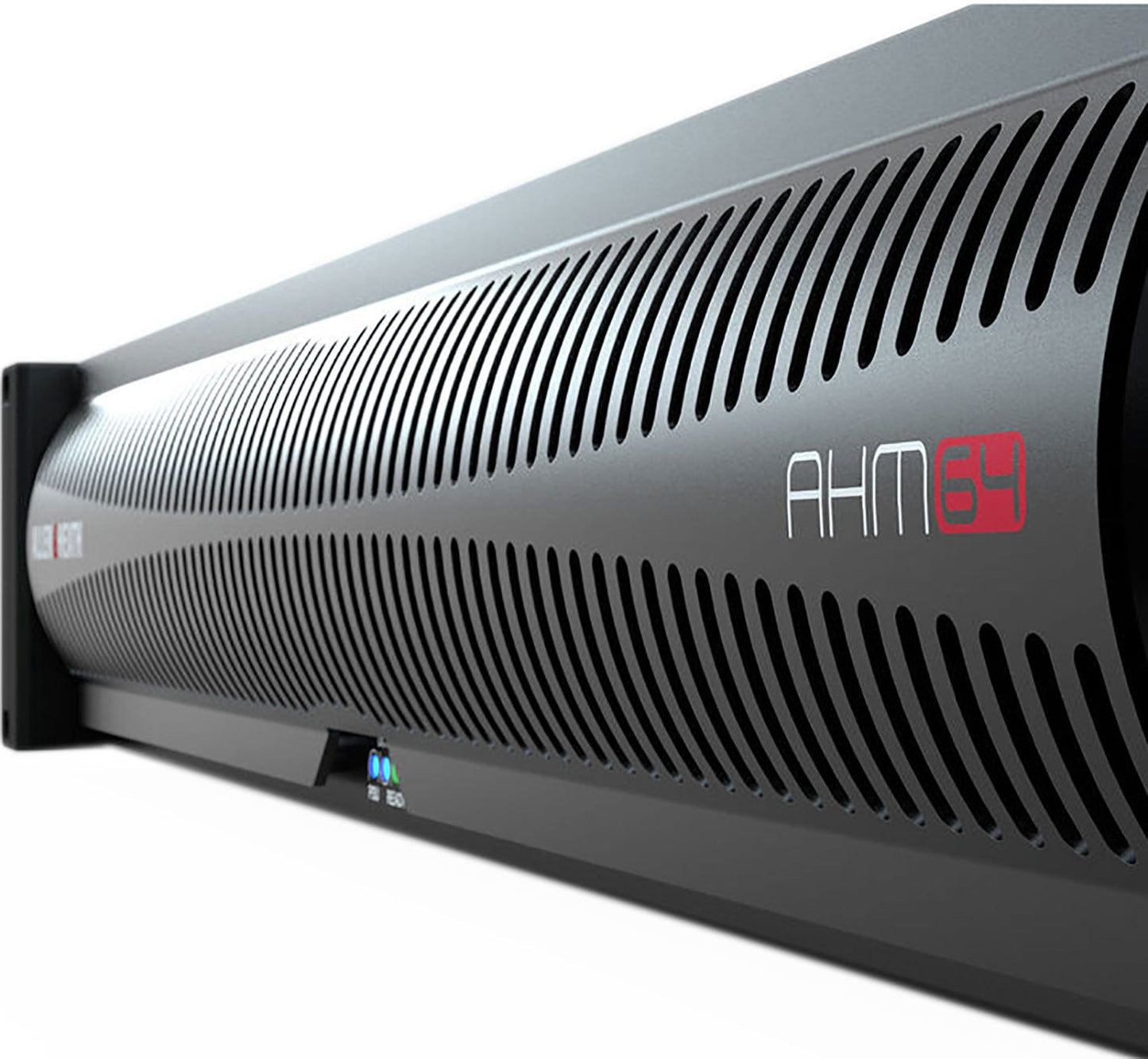

Allen & Heath AH-AHM-64 64x64 Audio Matrix Processor Compatible with IP1/IP6/IP8 Remote Control
AHM-64 is an audio matrix processor for sound management and installation. It is designed for audio distribution, paging, conferencing and speaker processing in a multitude of environments including corporate, hospitality, education, event and multi-purpose venues, retail, theatres, cruise ships and sports venues.
The AHM-64 processor is complemented by an extended ecosystem of remote audio expanders, remote controllers, interfaces, apps and software. A family of portable, rack-mountable or wall-mount audio expanders is available with a choice of proprietary point-to-point Layer-2 or Dante transport protocols.
Features:
- 64×64 Processing Matrix
- 12×12 Local Analogue I/O
- I/O Port for Audio Networking (Up to 128×128)
- Dante 96kHz Option Card (AES67 and DDM ready)
- 128×128 Built-in SLink Port for Audio Expansion
- 64 Configurable Processing Outputs – Mono / Stereo Zones or Speaker Processing
- 96kHz FPGA Core With Ultra-low Latency
- Compatible With IP1, IP6, IP8 Remote Controllers
- 2×2 Local GPIO Plus Networkable GPIO Interface
- TCP/IP Protocol for Third Party Integration
- Crestron, AMX and Extron Drivers
- Mac / Windows System Manager Software
- Custom Control app and Editor for BYOD
- 32 User Profiles
- Integrated Stereo Playback
- Event Scheduler
- DC backup power supply
Specifications:
- Inputs:
- Mic/Line Inputs: Balanced, +48V phantom power
- Mic/Line Preamp: Fully recallable
- Input Sensitivity: -60 to +15dBu
- Analogue Gain: +5 to +60dB, 1dB steps
- Pad: -20dB Active PAD
- Maximum Input Level: +30dBu (PAD in)
- Input Impedance: >3kΩ (Pad out), >8kΩ (Pad in)
- Mic EIN: -127dB with 150Ω source
- System:
- Measured balanced XLR in to XLR out, 20-20kHz, +5dB Gain, Pad out, signal @ 0dB (meter)
- Dynamic Range: 108dB
- System Signal to Noise: -94dB
- Frequency Response: 20Hz - 20kHz +0/-0.5dB
- THD+N (analogue in to out): 0.005% @ +16dBu output, 1kHz +5dB gain
- Headroom: +18dB
- Sampling Rate: 96kHz +/- 20 PPM
- Acoustic Noise: Typical loading, 22 deg C ambient
- Playback:
- Internal Storage: ~3GB
- File types: Mono/stereo .WAV (16/24bit, 44.1/48/96kHz), MP3, FLAC
- Outputs:
- Analogue Outputs: Balanced, Relay protected
- Output Impedance: <75Ω
- Nominal Output: +4dBu = 0dB meter reading
- Maximum Output Level: +22dBu
- Residual Output Noise: -92dBu (muted, 22-22kHz), -92dBu (muted, 20-40kHz)
- Dimensions and Weights:
- Unboxed: 482.6mm x 364mm x 91.2mm (19” x 14.3” x 3.6”) x 7kg (15.5lbs)
- Boxed: 600 x 500 x 180 mm (23.6” x 19.7”x 7.1”) x 9.5kg (21lbs)
- Operating Temperature Range: 0 deg C to 40 deg C (32 deg F to 104 deg F)
- Mains Power: 100-240V AC, 50-60Hz, 70W max
- DC Power: 12VDC - 5A minimum capable supply
