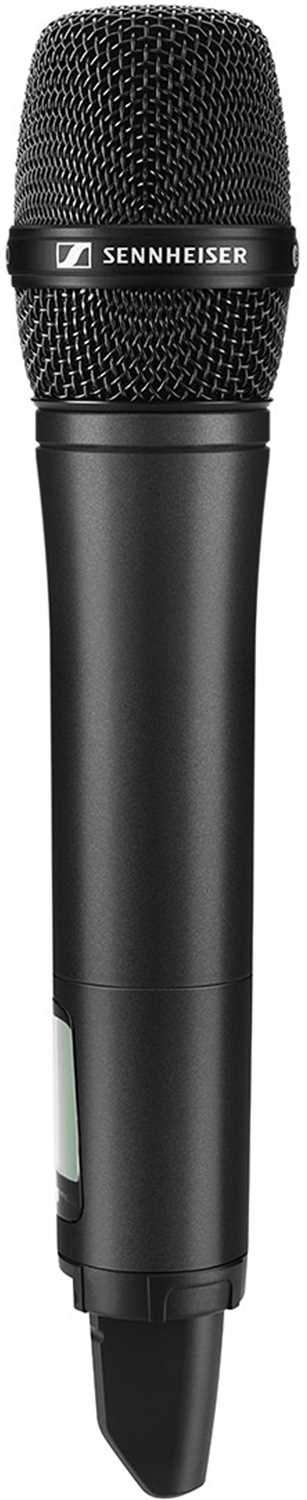

Sennheiser SKM 500 G4 Handheld Transmitter AW+
Your choice of Sennheiser‘s renowned state-of-the-art e 935, e 945, e 965 capsules
Powerful handheld transmitter with a lightweight black aluminum housing, increased bandwidth and transmission power, ready to take the world’s biggest live stages. For evolution wireless G4 500 Series systems.
What's in the box
- SKM 500 G4 handheld transmitter
- MZQ 1 microphone clamp
- 2 AA batteries
- pouch
- quick guide
- safety guide
- manufacturer declaration sheet
Features:
- Your choice of Sennheiser‘s renowned state-of-the-art e 935, e 945, e 965 capsules
- Easy and flexible wireless synchronization between transmitter and receiver via infrared
- Up to 32 compatible channels
- Up to 88 MHz bandwidth with 3520 selectable frequencies, fully tunable in a stable UHF range
- Ethernet connection for Wireless Systems Manager (WSM) control software for advanced frequency coordination in multi-channel setups
- High RF output power (up to 50 mW, adjustable in three steps 10/30/50) depending on country regulations
Specifications:
- Frequency range: Aw+: 470 - 558 MHz
- Dimensions: Approx. Ø 50 x 265 mm
- Compander: Sennheiser HDX
- THD, total harmonic distortion: ? 0.9 %
- Weight: (incl. batteries) approx. 450 g
- Signal-to-noise ratio: ? 115 dBA
- RF output power: switchable: Low: typ. 10 mW, Standard: typ. 30 mW, High: typ. 50 mW
- Switching bandwidth: up to 88 MHz
- Peak deviation: ±48 kHz
- Nominal deviation: ±24 kHz
- Operating time: Typically 8 h
- Modulation: Wideband FM
- Power supply: 2 AA batteries, 1.5 V or BA 2015 accupack
- Current consumption: at nominal voltage: typ. 180 mA with transmitter switched off: ? 25 ?A
- Powering: 3 V battery / 2.4 V rechargeable battery
- Transmission frequency: Max. 3520 frequencies, adjustable in 25 kHz steps, 20 frequency banks, each with up to 32 factory-preset channels, no intermodulation, 6 frequency banks with up to 32 programmable channels
- AF frequency response: 80 – 18,000 Hz
- Temperature Range: -10 °C to +55 °C
- Frequency stability: ? ±15 ppm
