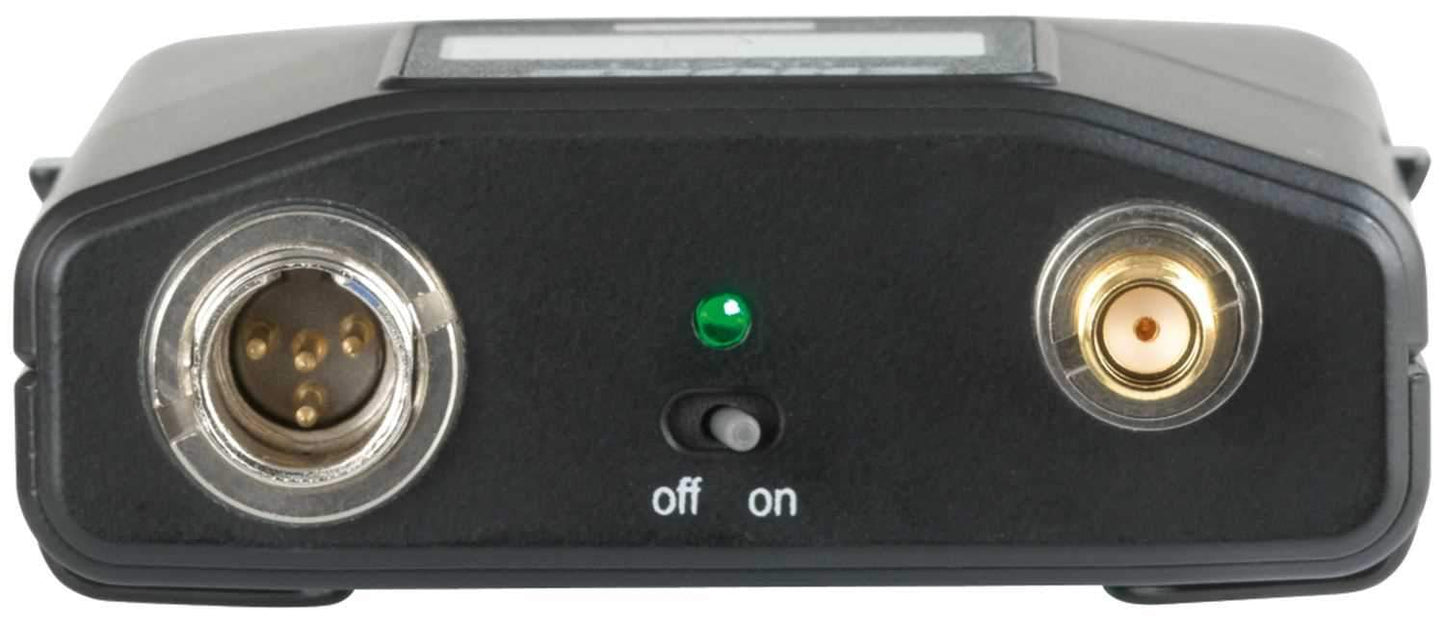

Shure ULXD1 Digital Wireless Bodypack Transmitter
The ULXD1 is a wireless bodypack transmitter compatible with ULX-D Digital Wireless Systems.
With a rugged yet lightweight aluminum case, the ULXD1 delivers uncompromising audio quality and RF performance, AES 256-bit encryption for secure transmission, and advanced rechargeability options for professional sound reinforcement applications.
Features:- AES 256-bit encryption for applications for which secure transmission is needed
- Proprietary Shure Gain Ranging optimizes the system's dynamic range for any input source, eliminating the need for transmitter gain adjustments
- Shure SB900 Lithium-Ion rechargeable battery provides up to 12 hours of battery life, precision metering with 5 segment battery fuel gauge, and zero memory effect
- External charging contacts for docked charging (with the SBC200 Dual Docking Charger)
- Backlit LCD with easy to navigate menu and controls
- Rugged metal construction
- Detachable 1/4 wave antenna
- Frequency and power lockout
- Connector: 4-Pin male mini connector (TA4M)
- Configuration: Unbalanced
- Impedance: 1 Megaohm
- Maximum Input Level, 1 kHz at 1% THD: Pad Off: 8.5 dBV (7.5 Vpp); Pad On: 20.5 dBV (30 Vpp)
- Preamplifier Equivalent Input Noise (EIN), System Gain Setting = +20: 120 dBV, A-weighted, typical
- Connector: SMA
- Antenna Type: 1/4 wave
- Impedance: 50 Ohms
- Occupied Bandwidth: <200 kHz
- Modulation Type: Shure Proprietary Digital
- Power: 1 mW, 10 mW, 20 mW
- Audio Frequency Response: 20 Hz to 20 kHz (±1 dB), flat (Note: Dependent on microphone type)
- Operating Range: 300 ft (100 m)
- Connector: 3-pin TQG
- Gain Offset Range: 0 to 21 dB (in 3 dB steps)
- Battery Type: Shure SB900 Rechargeable Li-Ion or AA batteries
- Battery Runtime @ 10 mW: Shure SB900: >12 hours; Alkaline: 11 hours
- Dimensions: 3.4" x 2.6" x 0.9" (86 mm x 66 mm x 23 mm), H x W x D
- Weight: 142 g (5.0 oz.), without batteries
- Housing: Cast aluminum
