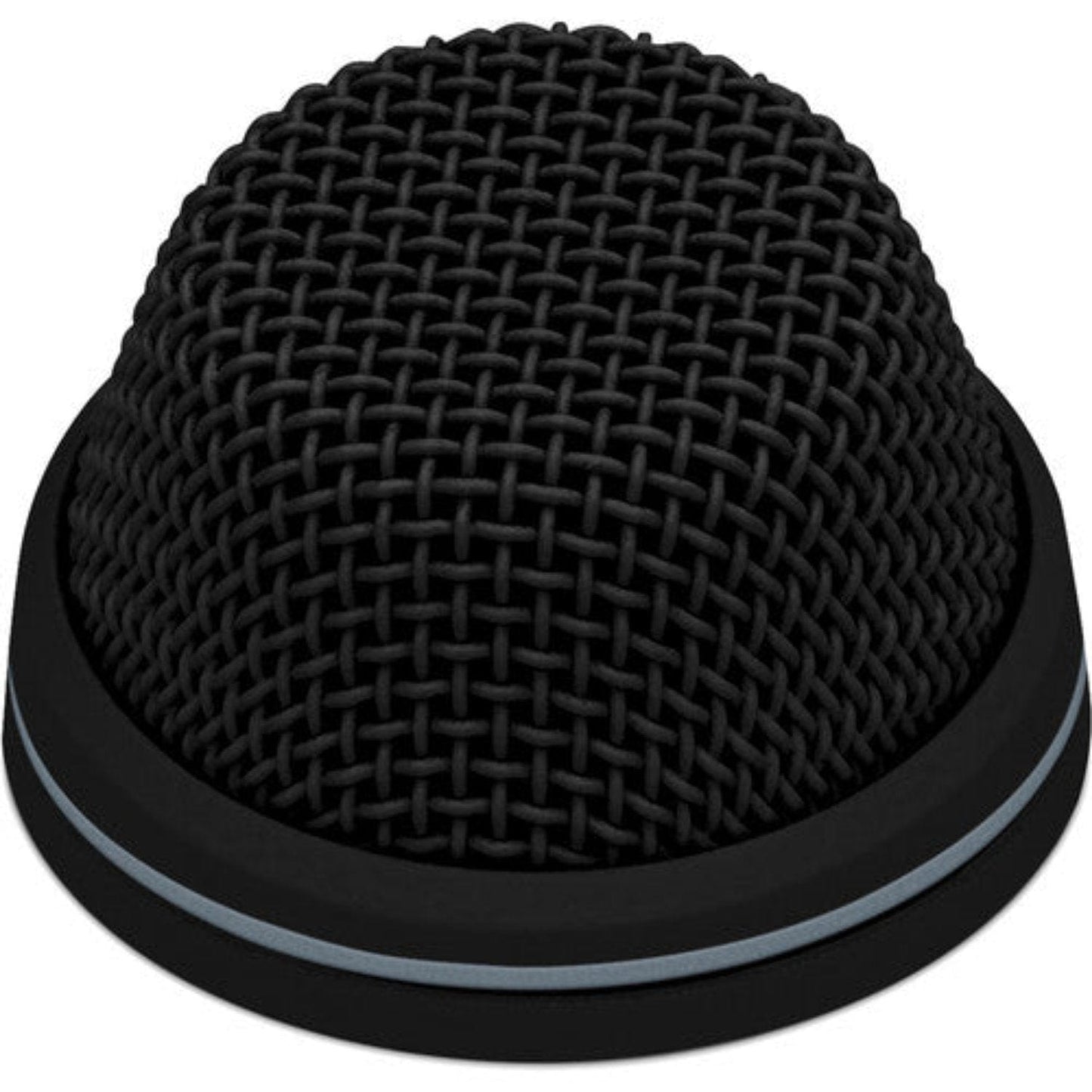

Sennheiser MEB 104 B Boundary Layer Microphone - Cardioid
Boundary installation wired microphones are ideal for simple integration into tables or ceiling elements. With a compact and discreet design, these microphones fit seamlessly into any environment. The cardioid pickup pattern ensures optimal speech intelligibility, and the robust housing provides excellent protection. Available in black.
Specifically, the cardioid boundary layer microphone MEB 104 (cardioid) is designed to be unobtrusive while delivering high-quality sound. It can be easily installed into surfaces such as tables or ceiling tiles. Featuring a proven Sennheiser microphone capsule for superior speech clarity, it is also protected by a durable housing. The -L variant includes a bi-color LED ring for clear status indication.
Features:
- Unobtrusive, timeless design
- Optimized for speech
- Made in Germany
Specifications:
- Connector: XLR-3, Pin assignment: 1 = gnd, 2 = +, 3 = -
- Current consumption: 3 mA
- Dimensions: Height: 3.54 in (0.75 in above surface), Diameter: 1.12 in
- Frequency response 40 Hz – 20 kHz
- Max. sound pressure level: 125 dB
- Transducer principle: pre-polarized condenser microphone
- Weight: 2.12 oz
- Pick-up pattern: Cardioid
- Nominal impedance: 200 Ohm
- Phantom powering: P 24 - P 48
- Operating temperature: 32 °to 104 ° F
- Equivalent noise level: 28 dB (A)
- Equivalent noise level weighted as per CCIR 468-3: 38 dB (CCIR)
- Acoustics: Boundary Layer Microphone
- Dynamic range: 97 dB (A)
- Sensitivity: 14 mV/Pa
- Thread: M 20
