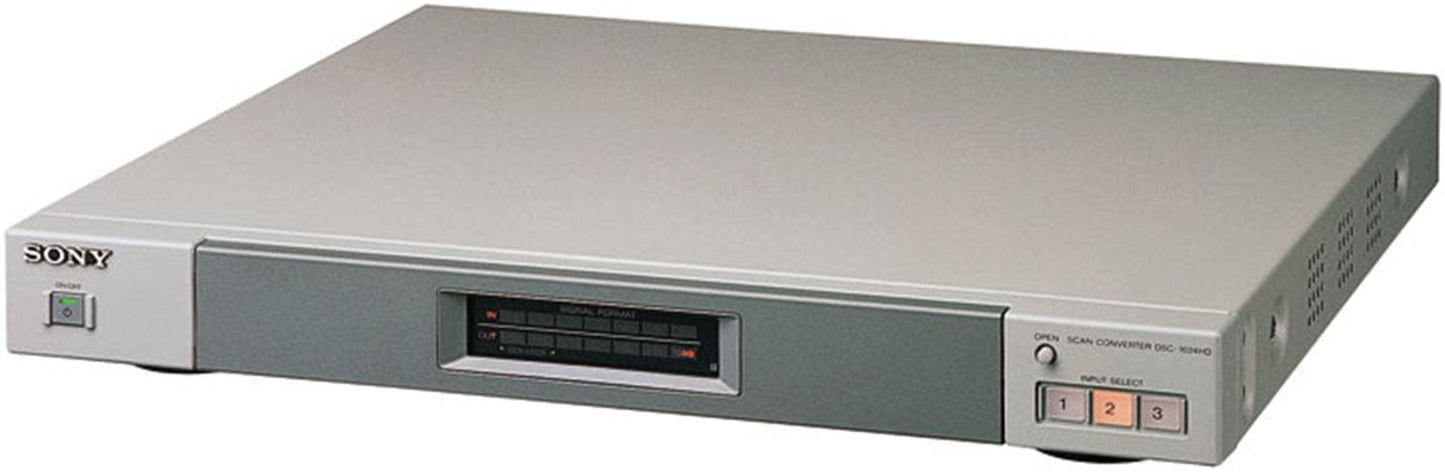

The DSC-1024HD Digital Scan Converter is the replacement for the DSC-1024G. The DSC-1024HD supports 1080i output formats as well as scan converts, transcodes, standard converts, aspect ratio converts, line doubles, and signal processes. The DSC-1024HD has an added GENLOCK function which uses a black-burst signal applied as a genlock reference, so that the signal output can be synchronized to the reference.

• Up/Down Scan conversions: locks to and displays
• INPUT RANGE: H:15.6-70kHz, V:50-120 Hz
• OUTPUTS: 15.6/31.5/37/48/64 kHz.
• Transcodes: To and from composite, Y/C, RGB and Y/R-Y/B-Y.
• Standards conversions: NTSC-PAL.
• Aspect ratio conversions: a wide range of aspect ratio conversions including 4:3, 16:9, 2:1, 1:85, 1:66 and more with On- Screen Display of aspect ratio.,
• Line doubles: the horizontal scanning frequencies of 15.75/15.6 to 31.5 kHz for NTSC and PAL sources.
• Signal Processor: for up to a 4 x 4 video wall (requires one DSC-1024G per Display device).
• Additional function include:
• 4 internal test patterns, on- screen display in 5 languages, 3 line digital comb filter, freeze frame/still store, H & V shift and size, zoom and pan, aperture control, remote control capability with monitor and projector IDs via SIRCS, Display memories for storage of up to five sets of input/output selections, zooming size, H/V size and H/V position for later recall via on screen menus. Compatibility with KV, CPD, GDM, PVM, PGM, VPH, VPL, AND RVP.

Features:

• Line doubler for standard video signal for home theaters or other large screen viewing.
• Signal processor for up to a 4 x 4 video wall system.
• Automatic input signal recognition
• A more versatile scan converter for applications using monitors and front or rear projection in 16:9 or 4:3.
• Allows for simultaneous connection of two computer signal sources.
• Combines the use of four-line interpolation to convert vertical scan lines with variable offset sampling for horizontal scan line, and is designed to lock onto and display images in various video formats.
• Converts NTSC to PAL and PAL to NTSC.
• Processing: 8-bit, 24-bit (RBG)
• Interpolation Scheme: 4-field, 4-line
• Remote Function: SIRCS
• Composite Video Input: Composite video loop-through x 2, 75Ó(auto terminated), NTSC 3.58/PAL 4.43Vp-p
• S-Video Input: 4-pin mini DIN loop-through x 2, 75Ó (auto terminated),Y: 1Vp-p negative sync C: 0.286Vp-p (NTSC)/0.3Vp-p (PAL) typical
• RGB/Component Input: D-sub 15-pin, 3 row x 2 (loop-through), 75Ó /high impedance R/G/B: +0.714Vp-p (sync on G/ext., switchable)Y/R-Y/B-Y: 0.7Vp-p typical (NTSC/PAL)
• Audio Input: L/R, RCA jack, input impedance: more than 10kÓ 0dB (1 Vrms) max.
• Composite Video Output: BNC, 75Ó typical, NTSC 3.58/PAL 4.43, 1Vp-p typical
• S-Video Output: S Video: 4-pin mini DIN, 75Ó typical Y: 1Vp-p typical, negative sync C: 0.286Vp-p (NTSC)/0.3Vp-p (PAL) typical
• RGB/Component Output: D-sub 15-pin, 3 row x 2 (loop-through), 75 Ó/high impedance R/G/B: 0.714Vp-p with external sync Y/B-Y/R-Y: 0.7Vp-p typical with sync on Y
• Audio Output: Audio gain + 1.0dB typical, THD less than 1% @ 1 Vrms
• Video Processing: Capture Range: H: 15.6-70kHz, V: 50-120Hz
• Video Processing: Video Memory: 1152 x 1152 x 24 bits (RGB total)
• Video Processing: Sampling Rate: 14.3-80MHz max
• Video Processing: Pixel Clock: 14.3-50MHz max
• Video Processing: Preset Signal: Input: 10 formats Output: 7 formats
• Video Processing: Genlock: NTSC or PAL
• Power Requirements: 100-120V, 50/60Hz, 0.5A max200-240V, 50/60Hz, 0.25A max
• Power Consumption: 25 W (typical)
• Operating Temperature: 50° -96°F (0° to 35°C)
• Weight: Approximately 7.5 lbs (4kg)
