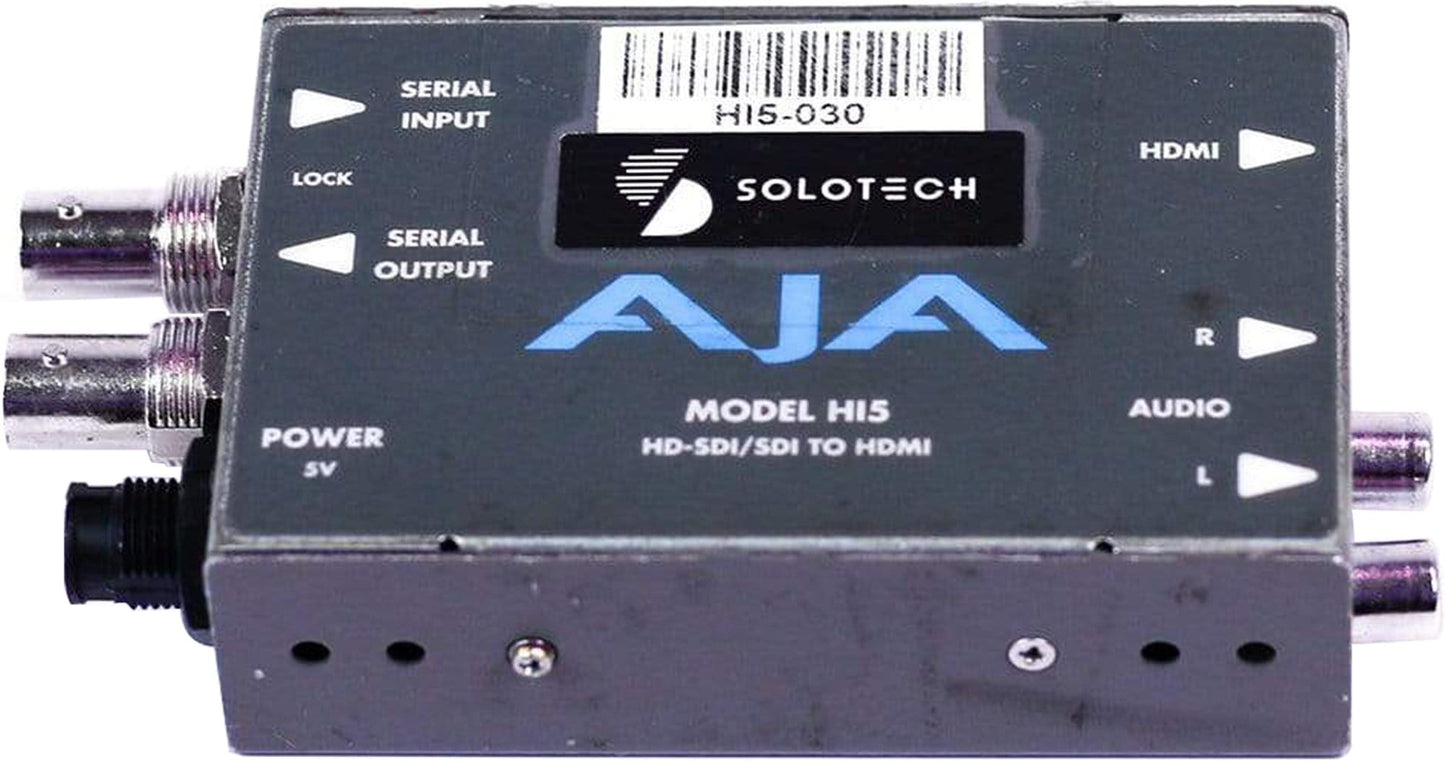

AJA Video Systems Hi5 HD-SDI to HDMI Converter
The Hi5 converts SDI or HD-SDI to HDMI for driving HDMI monitors. Embedded SD/HD-SDI audio is supported in the HDMI output allowing a convenient single cable audio/video connection. The Hi5 provides 2-Channel RCA style audio outputs for separate audio monitoring if needed. The Hi5 also provides a looping SD/HD-SDI output useful for connecting additional equipment, or for "daisy chaining" multiple monitors to the same SD-HD-SDI source.
Features:
- SD/HD-SDI to HDMI
- Full HDMI support including 10-bit video and 8 channels of embedded audio
- Additional 2-Channel RCA jack audio output
- Equalized looping SD/HD-SDI output
- HDMI cable included
Specifications:
-
Formats
(HD) 1080i 50, 59.94, 60 (HD) 1080p 23.98, 24, 25, 29.97, 30 (HD) 720p 50, 59.94, 60 (SD) 625i, 525i
-
Inputs
- SMPTE-259/274/292/296 SD/HD-SDI, 1 x BNC
-
Outputs
- HDMI with embedded audio, 24-bit (selectable by internal jumper: 2 or 8-Channels)
- Audio, 2-Channel RCA style outputs at -10dBu (nominal), Channel 1 and 2
- 1 Looping SD/HD-SDI output of the SDI input (75 ohm, unterminated)
-
HDMI
- Standard Type A connector
- Video:
- 8-bit RGB 4:4:4 or 10-bit YCbCr 4:2:2 (selectable by internal jumper)
- Audio:
- 24-bit, with 2 or 8 embedded channels (selectable by internal jumper)
-
HDCP
- The Hi5 does not encode the HDMI output with HDCP encryption. By definition, SD/HD-SDI inputs to the Hi5 are unencrypted. The HDMI specification requires HDMI monitors to support unencrypted inputs.
-
Size (w x d x h)
- 4.6" x 2.4" x 1" (117mm x 61mm x 25mm)
-
Power
- +5VDC Regulated, 3 Watts, power supply required, included with purchase
-
Environment
- Safe Operating Temperature: 0 to 40 degrees C (32 to 104 degrees F)
- Safe Storage Temperature (Power OFF): -40 to 60 degrees C (-40 to 140 degrees F)
- Operating Relative Humidity: 10-90% noncondensing
- Operating Altitude: <3,000 meters (<10,000 feet)
-
