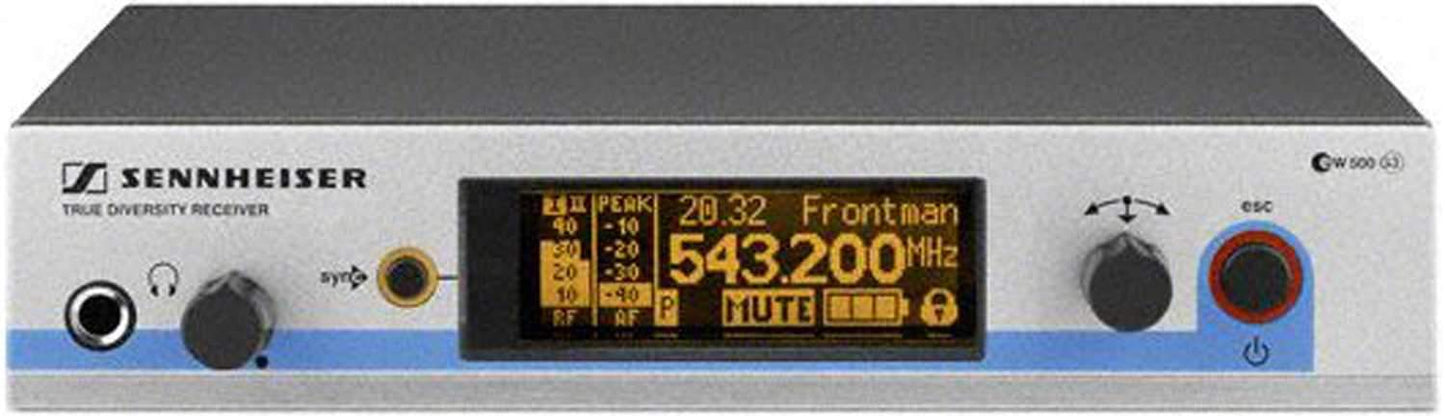

Sennheiser EM 500 G3 True Diversity Receiver A

Sennheiser EM 500 G3 True Diversity Receiver A

True diversity receiver. 42 MHz bandwidth with 1680 tunable UHF frequencies. 20 frequency banks with 32 preset frequencies each, plus 6 user-programmable banks. Remote controllable via "Wireless Systems Manager".

In every respect, this professional receiver from the new Sennheiser G3 line provides the most features and performance the evolution series has to offer. It begins with an especially high number of presets possible per frequency bank (32), making setup of many wireless systems a breeze. The built-in Ethernet port allows computer control and monitoring with a PC running Sennheiser's Wireless System Manager software. The large graphic display provides a great deal of additional information at a glance. One-touch sync function automatically links up a G3 transmitter with this receiver. Lastly, the switching power supply is ideal for touring acts and rental companies who need a wireless that can be powered from worldwide sources.

• 1 EM 500 G3-A rack-mount receiver
• 1 GA 3 rack mount
• 1 NT 2 power supply unit
• 2 antennas
• Operating instructions

Features:

• Sturdy metal housing
• 42 MHz bandwidth: 1680 tunable UHF frequencies for interference-free reception
• Enhanced frequency bank system with up to 32 compatible frequencies
• Ethernet port for connecting to the Wireless Systems Manager (WSM) software for control via computer - this delivers a good overview of monitoring and professional data management for multi-channel systems
• High-quality true diversity reception
• Pilot tone squelch for eliminating RF interference when transmitter is turned off
• Automatic frequency scan feature searches for available frequencies
• Enhanced AF frequency range
• Wireless synchronization of transmitter parameter from receiver
• User-friendly menu operation with more control options
• Illuminated graphic display, receiver also shows transmitter settings
• Auto-Lock function avoids accidental changing of settings
• HDX compander for crystal-clear sound
• Receiver shows transmitter battery indicatation in 4 steps
• Integrated Equalizer and Soundcheck mode
• Wide range of accessories adapts the system to any requirement

Specifications:

• Frequency range: 516 - 558 MHz / Power supply unit US
• Dimensions: 212 x 202 x 43 mm
• Frequency response (Microphone): 25 - 18000 Hz
• Compander: HDX
• Audio-XLR connector: 6,3 mm
• Presets: max. 32
• THD, total harmonic distortion: < 0,9 %
• Weight: 980 g
• Signal-to-noise ratio: > 115 dB(A)
• RF frequency range: 516...865 MHz
• Transmission/receiving frequencies: 1680
• Switching bandwidth: 42 MHz
• Peak deviation: +/- 48 kHz
• In compliance with: ETS 300422 , ETS 300445 , CE , FCC
• Antenna connector: 2 BNC, 50 ?
• Audio output level (balanced): XLR : +18 dBu max
• Audio output level (unbalanced): Jack : +12 dBu max
