Sennheiser EK 100 G4 Portable Camera Receiver A
EK 100 G4-A (Assembled in USA)
Powerful camera receiver, easily mounted on any kind of camera
Powerful camera receiver with a lightweight aluminum housing and for evolution wireless G4 100P Series systems. For documentary, Mobile Journalism and audio for video applications.
What's in the box?- EK 100 G4 camera receiver
- 2 AA batteries

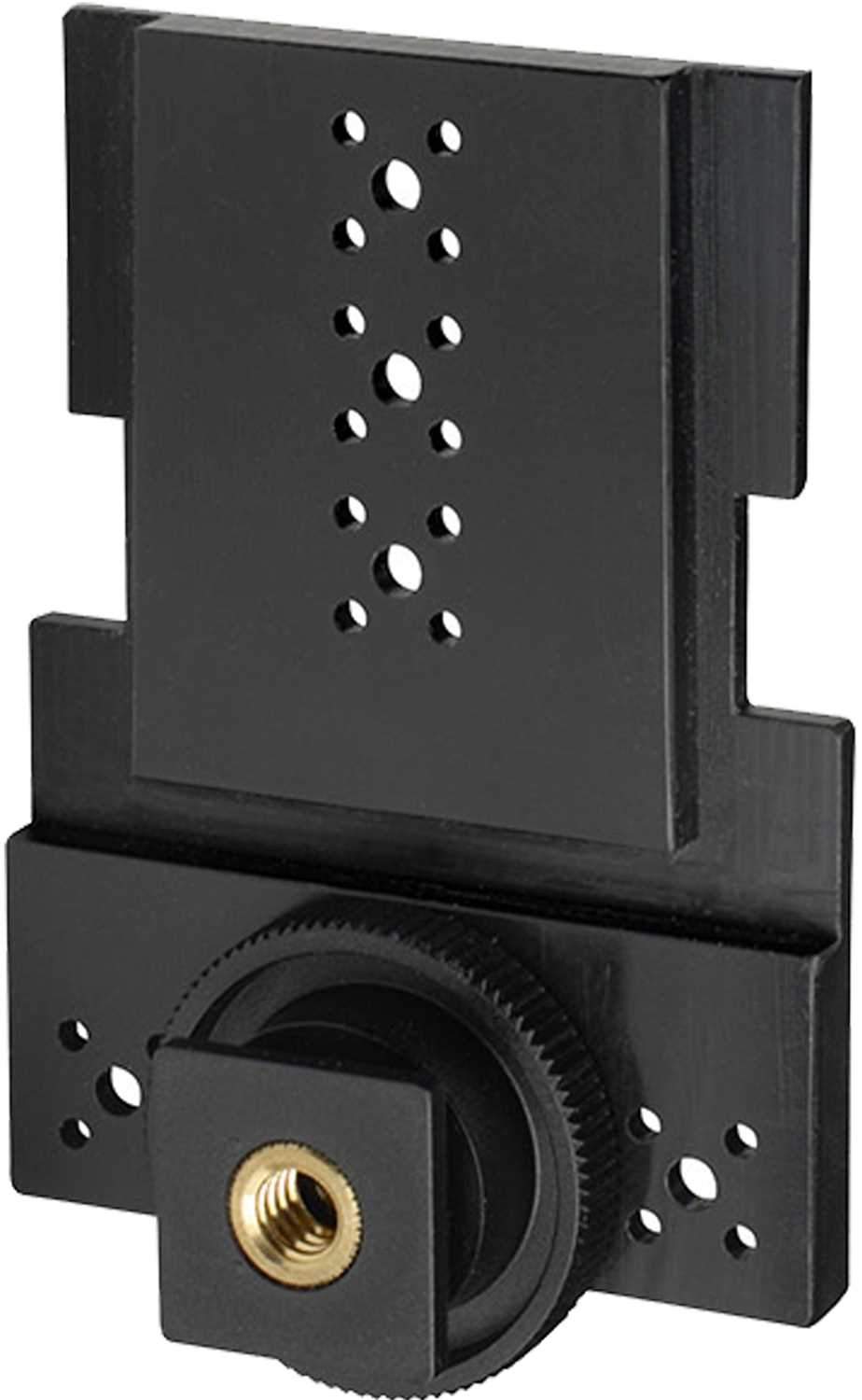

- CA 2 camera adapter
- CL 1 3.5 mm jack cable
- CL 100 XLR to 3.5 mm jack adapter cable
- quick guide
- safety guide
- manufacturer declaration sheet
Features:
- Powerful camera receiver, easily mounted on any kind of camera
- Excellent sound and construction quality
- Easy to use and fast setup time
- Powerful and reliable wireless transmission
- Range: up to 100 meters / 330 feet
- Up to 8 hours of operation time
Specifications:
- Frequency range: A: 516 - 558 MHz
- Dimensions Approx.: 82 x 64 x 24 mm
- Compander Sennheiser: HDX
- THD, total harmonic distortion: ? 0.9 %
- Weight: (incl. batteries) approx. 160 g
- Audio output: 3.5 mm jack socket: +12 dBu (mono, unbalanced)
- Signal-to-noise ratio: ? 110 dBA
- Switching bandwidth: up to 42 MHz
- Peak deviation: ±48 kHz
- Nominal deviation: ±24 kHz
- Operating time: Typically 8 h
- Modulation: Wideband FM
- Power supply: 2 AA batteries, 1.5 V or BA 2015 accupack
- Current consumption: at nominal voltage: typ. 180 mA with receiver switched off: ? 25 µA
- Adjacent channel rejection: ? 65 dB
- Intermodulation attenuation: ? 65 dB
- Powering: 3 V battery / 2.4 V rechargeable battery
- Receiving frequency: Max. 1680 receiving frequencies, adjustable in 25 kHz steps, 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation 1 frequency bank with up to 12 programmable channels
- RF sensitivity: < 1.6 ?V for 52 dBA eff S/N
- Squelch low: 5 dBµV, middle: 15 dBµV, high: 25 dB?V
- Temperature Range: -10 °C to +55 °C
- Receiver Principle: Adaptive diversity
- Blocking: ? 70 dB
- Frequency range: A: 516 - 558 MHz
- Dimensions Approx.: 82 x 64 x 24 mm
- Compander Sennheiser: HDX
- THD, total harmonic distortion: ? 0.9 %
- Weight: (incl. batteries) approx. 160 g
- Audio output: 3.5 mm jack socket: +12 dBu (mono, unbalanced)
- Signal-to-noise ratio: ? 110 dBA
- Switching bandwidth: up to 42 MHz
- Peak deviation: ±48 kHz
- Nominal deviation: ±24 kHz
- Operating time: Typically 8 h
- Modulation: Wideband FM
- Power supply: 2 AA batteries, 1.5 V or BA 2015 accupack
- Current consumption: at nominal voltage: typ. 180 mA with receiver switched off: ? 25 µA
- Adjacent channel rejection: ? 65 dB
- Intermodulation attenuation: ? 65 dB
- Powering: 3 V battery / 2.4 V rechargeable battery
- Receiving frequency: Max. 1680 receiving frequencies, adjustable in 25 kHz steps, 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation 1 frequency bank with up to 12 programmable channels
- RF sensitivity: < 1.6 ?V for 52 dBA eff S/N
- Squelch low: 5 dBµV, middle: 15 dBµV, high: 25 dB?V
- Temperature Range: -10 °C to +55 °C
- Receiver Principle: Adaptive diversity
- Blocking: ? 70 dB
