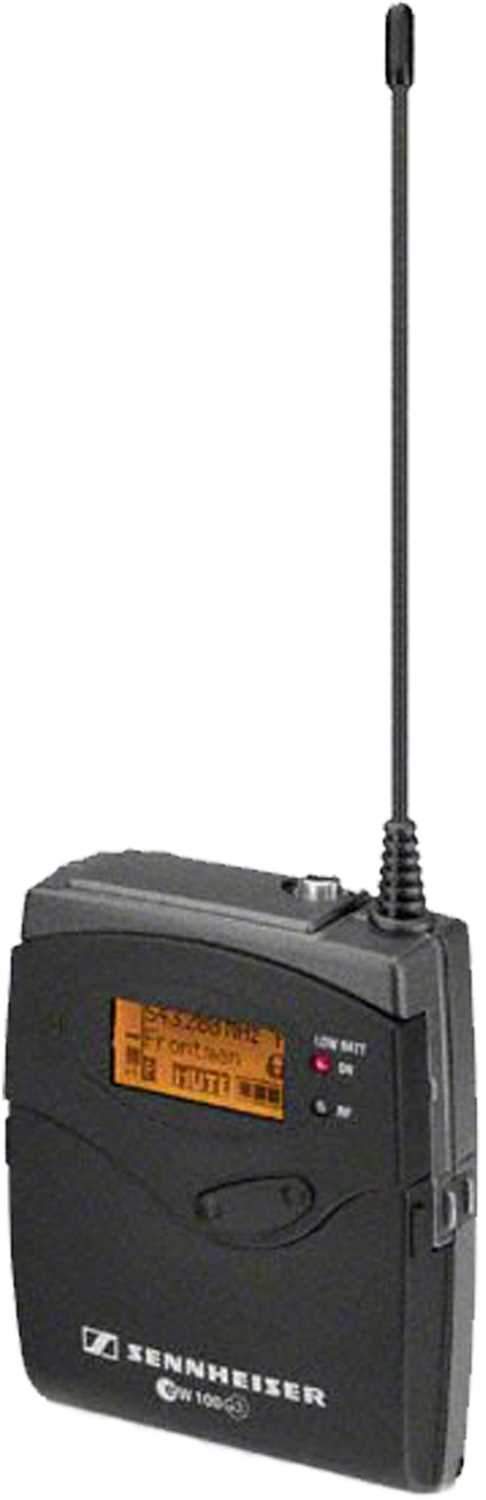

Sennheiser EK 100 G3-G Portable Diversity Receiver

Sennheiser EK 100 G3-G Portable Diversity Receiver

Versatile mobile receiver with adaptive diversity for excellent reception at all times. Clamp mount designed for a secure attachment to a camera’s shoe. Optional adapter enabling power supply via the camera.

Portable components always work easiest when you do not have to think about them. This was the basis on which the EK 100 G3 was developed. Its adaptive-diversity technology provides excellent reception at all times. This receiver is designed to securely attach to a camera's shoe using a clamp mount. The EK 100 G3 also can synchronize to a G3 transmitter with a simple push of a button. The EK100G3 is compatible with the optional DC 2 external adapter for extended use without batteries where a 12VDC source is available.

• 1 EK 100 G3 diversity receiver
• 1 CA 2 camera adapter
• 1 CL 1 jack cable
• 1 CL 100 XLR cable
• 2 AA-size batteries

Features:

• Sturdy metal housing
• 42 MHz bandwidth: 1680 tunable UHF frequencies for interference-free reception
• Enhanced frequency bank system with up to 12 compatible frequencies
• Adaptive-diversity reception for high reception quality
• Pilot tone squelch for eliminating RF interference when transmitter is turned of
• Automatic frequency scan feature searches for available frequencies
• Enhanced AF frequency range
• Wireless synchronization of transmitters via infrared interface
• User-friendly menu operation with more control options
• Illuminated graphic display
• Auto-Lock function avoids accidental changing of settings
• HDX compander for crystal-clear sound
• Receiver features battery indicatation in 4 steps
• Contacts for recharging BA 2015 accupack directly in the receiver
• Wide range of accessories adapts the system to any requirement

Specifications:

• Frequency range:
• 606...648 MHz
• 823...865 MHz / Germany
• 823...865 MHz
• 780...822 MHz / Germany
• 780...822 MHz
• 734...776 MHz
• 626...668 MHz
• 566...608 MHz
• Dimensions: 82 x 64 x 24 mm
• Frequency response: 25 - 18000 Hz
• Jack plug: 3,5 mm
• Weight: 160 g
• Signal-to-noise ratio: > 110 dB(A)
• Operating time: 6-10 h
• Power supply: 2 AA batteries, 1.5V
• Output voltage: 3.5 mm jack socket, unbalanced: +12 dBu
• Adjacent channel rejection: ? 65 dB
• Audio-Output-Power: 12 mW (32 ?)
• Intermodulation attenuation: ? 65 dB
• Sensitivity: <2,5 ?V at 52 dBAeff S/N
