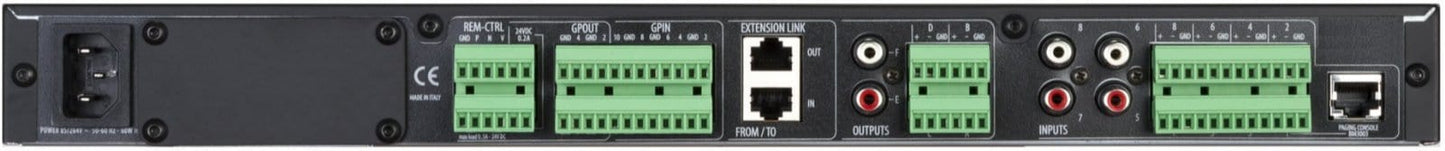

RCF MZ 8060 Digital Audio Matrix Mixer - 8 Inputs / 6 Outputs (RDNet Interface Built-In)

RCF MZ 8060 Digital Audio Matrix Mixer - 8 Inputs / 6 Outputs (RDNet Interface Built-In)

The MZ 8060 is a highly versatile digital audio matrix built on a robust DSP platform with advanced electronics. It features an 8x6 matrix configuration, allowing for 8 universal MIC-LINE inputs and 6 outputs, all of which can be processed through various audio parameters, including parametric equalizers, compressors, gates, limiters, delays, duckers, priorities, and an auto-mixer. The Automatic Level Control feature can be utilized by connecting a probe to input 8, enabling automatic volume adjustments based on environmental noise levels.

The MZ 8060 supports up to 10 logic inputs (GPI) and 6 assignable logic outputs (GPO), two of which are relay-operated. It includes a serial port for controlling the unit via third-party systems like Crestron and AMX. Additionally, two MZ 8060 units can be linked in a primary-secondary configuration to create a 16-input, 12-output matrix. An optional RCF RDNet module can be integrated through a rear-panel slot, facilitating access to the MZ 8060 via an RDNet control network.

Up to 12 BM 3003 paging consoles can be daisy-chained to the dedicated RJ-45 input, which can also serve as input 1. The front panel features multiple LED indicators to monitor audio input and output activities, while dedicated PC Control Software is available within the RDNet environment for unit setup and management.

Features:

• 40-bit floating point processing DSP and 48kHz 24-bit HI-Q Analogue/Digital Conversion, dynamic range > 112dB.
• 8 universal inputs (48V), 6 outputs - 4 Euroblocks bal., 2 RCA plugs
• 10 programmable logic inputs (GPI), 6 programmable logic outputs (GPO), 2 of which supported by relay.
• Configurable parametric EQs, gates, compressors, limiters, delays, priority levels, automatic gain control, levels, gains on in-out and cross points, auto-mixer operations, filters
• Each unit can work as dual-room combiner with independent auto-mixer facility for each room
• Configurable ALC (Automatic Level Control) facility by using Input 8 to connect a noise detection microphone. The control is then assignable to any output or group of outputs
• USB connectivity for device configuration
• RDNet Networked Control

Specifications:

• Audio performance
  • Frequency Response (-3dB): 20Hz - 20kHz
  • Distortion (THD+N) @ 1kHz nominal power:
  • Dynamic range: >114dB
• Digital audio performance
  • Sampling rate: 48
  • A/D - D/A converters: 24
• Input section
  • Total number of inputs: 9
  • Balanced: 9
  • Mono: 9
  • Mic+Line inputs: 8
  • Mic+Line connectors: Euroblock, RCA
  • Mic+Line Phantom: 48VDC
  • Paging inputs: 1
  • Paging connectors: RJ45
  • Paging command: Contact
• Output section
  • Signal output number: 6
  • Signal output connectors: Euroblock, RCA
  • General Purpose Outputs (GPO): 10
  • Programmable GPO: Yes
• Processing
  • DSP: Yes
  • EQ Filters: Yes
  • Compressors: Yes
  • Automatic Gain Control (ACG): Yes
• Controls
  • Configuration: PC Software
  • Number of programs/presets: 16
  • Priority: Yes
  • Protocols for system integration: ASCII
• Protections
  • Cooling: Convection
  • Fuses: Yes
• Power requirement
  • Operating voltage: 90-240V~ 50/60Hz V ~ Hz
  • Power consumption: 60W
  • Standard compliance CE marking: Yes
• Physical specifications
  • Cabinet/Case Material: Metal
  • Rack mounting: 19", 1U
  • Size
    • Height: 44mm / 1.73 inches
    • Width: 482mm / 18.98 inches
    • Depth: 320mm / 12.6 inches
    • Weight: 4.5kg / 9.92lbs
  • Shipping information
    • Package Height: 170mm / 6.69 inches
    • Package Width: 575mm / 22.64 inches
    • Package Depth: 480mm / 18.9 inches
    • Package Weight: 5kg / 11.02lbs
