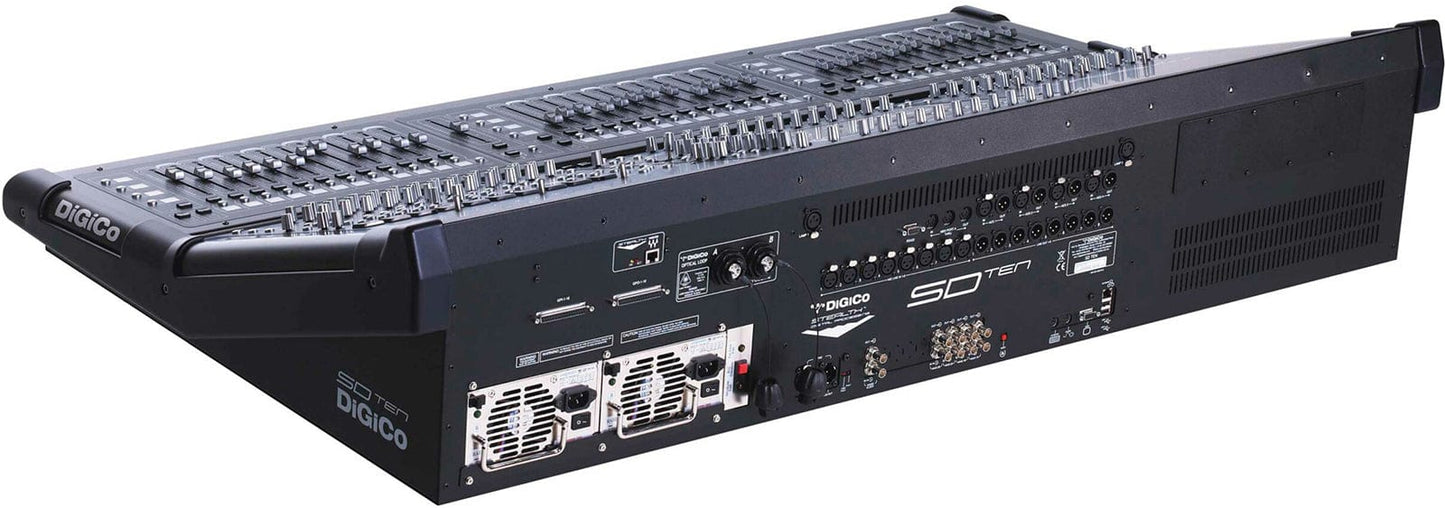

DiGiCo SD10 144-Input Digital Mixing Console - MADI and One Multi-Mode Optics HMA

DiGiCo SD10 144-Input Digital Mixing Console - MADI and One Multi-Mode Optics HMA

Driven by Stealth Digital Processing and floating-point Super FPGA technology, the SD10 offers exceptional performance and flexibility to meet even the most demanding requirements. Ease of operation is ensured with three banks of 12 motorized faders and one master fader, each equipped with a high-resolution LED bar graph meter. The centrally located 15-inch backlit colour-keyed TFT touchscreen provides intuitive control for all functions.

Flexibility comes standard with the SD10, allowing users to recall or save presets on the channel strip or snapshots using the master screen or dedicated surface switches. The console features 40 Smart Key Macros accessed via four layers of 10 RGB backlit keys for instant access to special functions.

Features:

• Advanced processing power with Stealth Digital Processing and floating-point Super FPGA technology for exceptional performance.
• High-resolution 15-inch backlit TFT touchscreen for intuitive and easy control.
• Flexible control with 37 motorized touch-sensitive faders for smooth and accurate adjustments.
• Supports up to 144 input channels for handling large audio setups.
• 64 assignable busses, configurable as groups, auxiliary busses, and more.
• 24 stereo FX processors and 24 x 32-band graphic EQ for advanced sound customization.
• Redundant MADI interfaces and multiple I/O options, including 8 mic/line I/O and 8 AES/EBU I/O.

Specifications:

• Faders: 37 x 100mm Touch-Sensitive, Motorised
• Screens: 1 x 15” (38cm) LCD High-Resolution Touch Screen
• Meters: 38 x 20-Segment LED Bargraph
• Input Channels: 144
• Busses: 64 assignable that can be configured as groups/auxiliary busses + LR/LCR/LCRS/5.1 Master Buss
• Solo Busses: 2 Stereo Busses
• Matrix: 24 x 24 Matrix (Additional to Busses Above)
• Control Groups: 24, Selectable for VCA-style, Moving Fader, Mute Group
• Graphic EQ: 24 x 32-band, Gain +/- 12dB
• Internal FX: 24 Stereo FX Processors
• Local I/O: 8 x Mic/Line I/O, 8 x AES/EBU I/O (Mono)
• MADI Interface: 2 Redundant Interfaces, 75 Ohm BNC Connectivity
• Standard Optics
• MIDI Interface: In / Out / Thru
• VGA Port: DB-15 Mini-Female (1024 x 768 Resolution)
• USB Ports: 3 x USB 2
• Light Connection: 2 x XLR3 1.2 – 12V
• Ext Sync: Word Clock, AES, MADI, Optics
• Headphone: TRS Unbalanced / 8-600 Ohms 1/4 Inch Jack
• GPIO: 2 x DSub37
• Dimensions: 1398mm (w) x 818mm (d) x 285mm (h)
• Weight: 60Kg / 132lbs (175Kg / 385.80lbs with Optional Flightcase)
• Flightcase Dimensions: 1586mm (w) x 1158mm (h) x 504mm (d), Weight: 115Kg / 253.53lbs (Optional)
• Power Requirements: 90-264 VAC, 47-63Hz Auto Sensing, 235 watts
• Sample Rate: 48kHz, 44.1kHz, or 96kHz
• Processing Delay: 2ms Typical @ 48k (72 Stereo Channels, Stage Input Through L-R Buss to Stage Output), 1.1ms @ 96k
• Internal Processing: Up to 40-bit, Floating Point
• A>D & D>A: 24-bit Converter Bit Depth
• Frequency Response: +/- 0.6dB (20Hz – 20kHz)
• THD: <0.05% @ Unity Gain, 10dB Input @ 1kHz
• Channel Separation: Better Than 90dB (40Hz – 15kHz)
• Residual Output: <90dBu Typical
• Noise: (20Hz – 20kHz), Microphone Input: Better Than -126dB Equivalent Noise
• Maximum Output Level: +22dBu
• Maximum Input Level: +22dBu
• Input Channel Name: User-Defined / Presets
• Channel Selection: Mono / Stereo / Multi
• Input Routing: Main & Alternate Input
• Analogue Gain: -20 to +60dB
• Phase: Normal / Reverse
• Digital Trim: -40 to +40dB
• Delay: >1 Sec (Coarse & Fine Control)
• DiGiTuBe: Drive 0.01 – 50.0, Bias 0 – 6
• LPF: 20 – 20kHz, 24dB/Oct
• HPF: 20 – 20kHz, 24dB/Oct
