Description

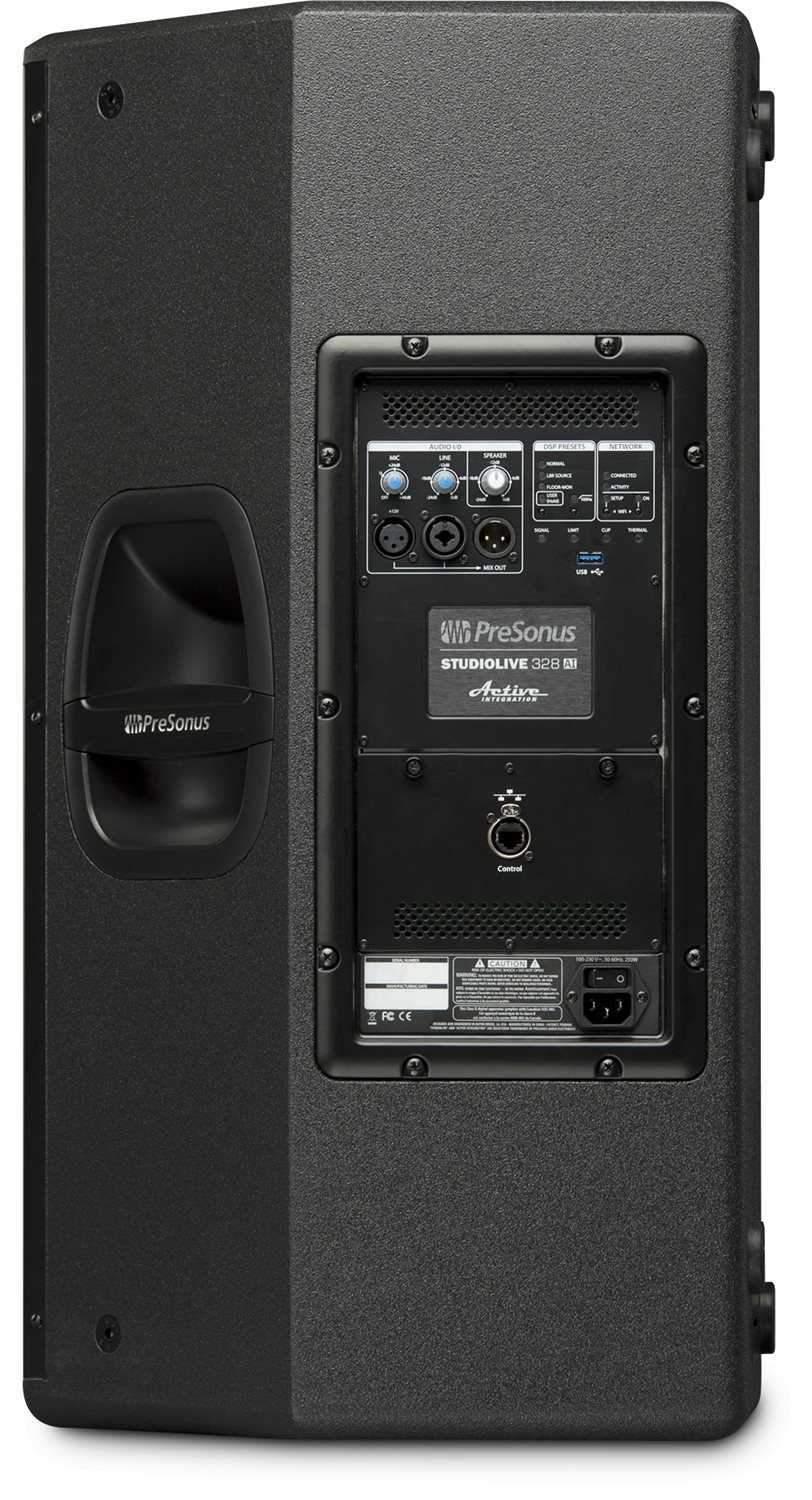

PreSonus 328i-B 3-Way Dual 8-Inch Black Speaker

StudioLive. Active coaxial PA systems with the accuracy of huge studio monitors but driven with irresponsibly high power, plus sophisticated networking and iPad control. Your live mixes never sounded this good!

Specifications:
  • Woofer Configuration: 2x8" Ferrite
  • Amp Configuration: Quad-amped
  • Pole Mount: No pole mount
  • M10 Points: 16
  • Internal Grille Cloth: Yes
  • Frequency Response: 54 Hz to 23 kHz (-10 dB) 59 Hz to 22 kHz (- 6 dB)
  • Maximum Peak SPL: 133 dB
  • Dimensions (HxDxW): 30.1" x 15.7" x 13.3" (764.54 x 398.78 x 337.82 mm)
  • Weight: 51 lbs (23.13 kg)
Acoustic Specifications
  • Configuration: 3-way, quad-amplified loudspeaker system
  • Frequency Response: 54 Hz - 23 kHz at -10 dB, 59 Hz - 22 kHz at -6 dB
  • Coverage: Nominal: 90 x 60 at-6 dB
  • Max Peak SPL: 133 dB
  • Crossover Frequency: 1.7 kHz
  • Directivity Index: 10 dB >460 Hz
  • Directivity Factor: 10.0 >460 Hz
  • Transducer: LF Transducer: 2 x 8.0" (20.3 cm) Ferrite, MF Transducer: 8.0" (20.3 cm) CoActual, F Transducer: 1.75" (4.44 cm) compression driver
Amplifier
  • Type: Class D
  • Total Output Power: 2,000 W (total power without protection algorithms and limiter enabled)
  • Power: LF Power: 2 x 500 W, MF Power: 500 W, HF Power: 500 W
  • THD: Rated: <0.05% (20 Hz - 20 kHz)
  • Dynamic Range: 119 dB (A-weighted)
  • Bandwidth: 20 Hz - 20 kHz
  • Convection: Cooling Free air convection
Connections
  • Input Channels: 1 mic, 1 line
  • Input Connection Type: 1 XLR (F), 1 combo
  • Phantom Power: 15 VDC (CH1 only)
  • Impedance: Mic Input: 1 kOhms
  • Line Input: 10 kOhms
  • Max Input: +22 dBu
  • Output Connector: 1 XLR (M) - Mix out
  • Controls: Mic Level (Variable: Off to +48 dB)
  • Line Attenuation (Variable: -24 dB to 0 dB): Speaker Attenuation (Variable: -24 dB to 0 dB)
  • Indicators: DSP Preset, HPF On/Off, Network Connected, Network Activity, WiFi Setup, Wi-Fi On, Signal, Limit, Clip, Thermal
DSP
  • Contour: Presets: Normal, LBR Source, Floor Monitor
  • HPF: 100 Hz, 4th-order Linkwitz-Riley
  • Bit Depth: 24 bit
  • Sample Rate: 96 kHz (48 kHz with Dante option installed)
  • Protections: Amplifier Protection: Over-current, DC, over/undervoltage, over-temperature, high frequency. Transducer Protections: 4-ch. multi-threat limiter
  • Power: AC Power Input: 100-230V, 50/60 Hz, AC Power Consumption (1/8 Power): 250 W
  • Mounting Options: Rigging Points: 16 M10
Enclosure
  • Material: Baltic birch
  • Finish: Chemline polyurethane
  • Grille: Powder-coated steel
  • Monitor Angle: 50 degree
  • Dimension: 30.10 x 15.70 x 13.30" (76.45 x 39.88 x 33.78 cm)
  • Weight: 51 lb (23.13 kg)
