L-Acoustics A15 Focus Loudspeaker

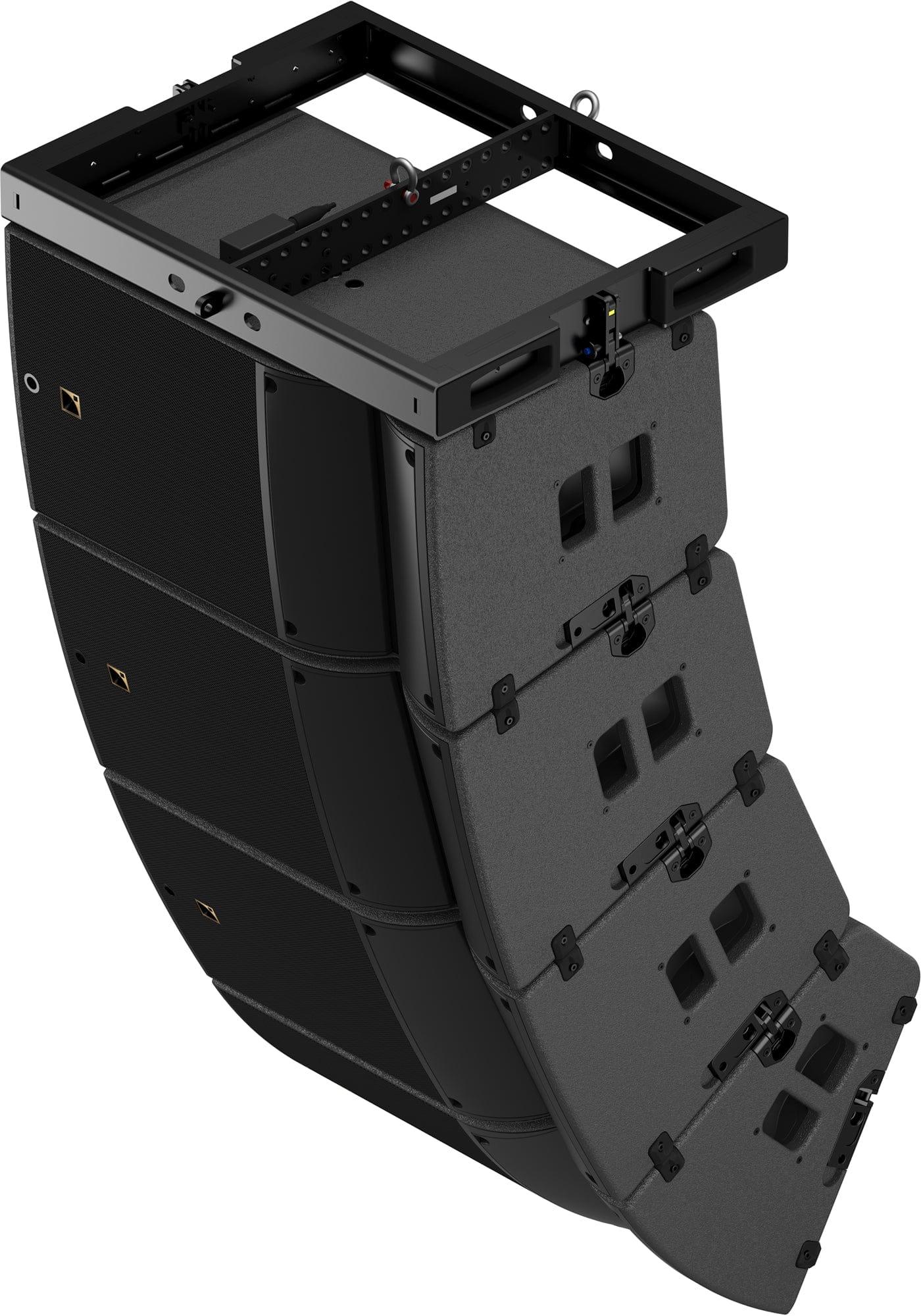

A15 Focus is a medium throw loudspeaker designed for production applications. Part of the multifunctional A15 family, the passive 15“ enclosure offers exceptional deployment flexibility and simplicity without compromising performance. With a tightly-controlled 10° enclosure coverage, A15 Focus boasts an impressive output of 144 dB and ensures projection up to 45 m. Panflex allows users to adapt the directivity to the audience geometry and ensure exceptional frequency response stability. Combinations of A15 Focus and A15 Wide can be flown or stacked to form a vertical line source. A15 Focus can also be used individually as a configurable directivity point source for front fill or delay applications where a narrow coverage is required. A15 Focus provides the low frequency contour of a large concert system and KS21 subwoofer further reinforces the contour and extends the bandwidth to 29 Hz. A15 Focus is a highly scalable solution that delivers concert level performance for small to large events or supplements a larger L-Acoustics solution for the world’s biggest stages.
Specifications:
- Description: 2-way passive constant curvature WST® 10° enclosure: 15'' LF + 3'' HF diaphragm, amplified by LA4X / LA8 / LA12X
- Usable bandwidth (-10 dB): 41 Hz - 20 kHz ([A15])
- Maximum SPL1: 44 dB ([A15])
- Nominal directivity (-6 dB):
- enclosure: 10°
- L-Fins: 70° / 110° symmetric or 90° asymmetric (-6 dB)
- Transducers:
- LF: 1 × 15" cone driver - neodymium
- HF: 1 × 3" diaphragm compression driver - neodymium
- Acoustical load:
- LF: bass-reflex, L-Vents
- HF: DOSC waveguide, L-Fins
- Nominal impedance: 8 Ω
- Connectors:
- IN: 1 × 4-point speakON
- LINK: 1 × 4-point speakON
- Rigging and handling:
- flush-fitting 2-point rigging system
- 2 handles
- 8 corner stops
- 2 ground runners
- 1 DIN580-compatible M8 threaded insert
- Weight (net): 35 kg / 77 lb
- Cabinet: premium grade Baltic beech and birch plywood
- Front:
- coated steel grill
- acoustically neutral 3D fabric
- Rigging components: high grade steel with anti-corrosion coating
- Finish:
- dark grey brown Pantone 426 C
- IP: IP55
- enclosure: 10°
- L-Fins: 70° / 110° symmetric or 90° asymmetric (-6 dB)
- LF: 1 × 15" cone driver - neodymium
- HF: 1 × 3" diaphragm compression driver - neodymium
- LF: bass-reflex, L-Vents
- HF: DOSC waveguide, L-Fins
- IN: 1 × 4-point speakON
- LINK: 1 × 4-point speakON
- flush-fitting 2-point rigging system
- 2 handles
- 8 corner stops
- 2 ground runners
- 1 DIN580-compatible M8 threaded insert
- coated steel grill
- acoustically neutral 3D fabric
- dark grey brown Pantone 426 C
