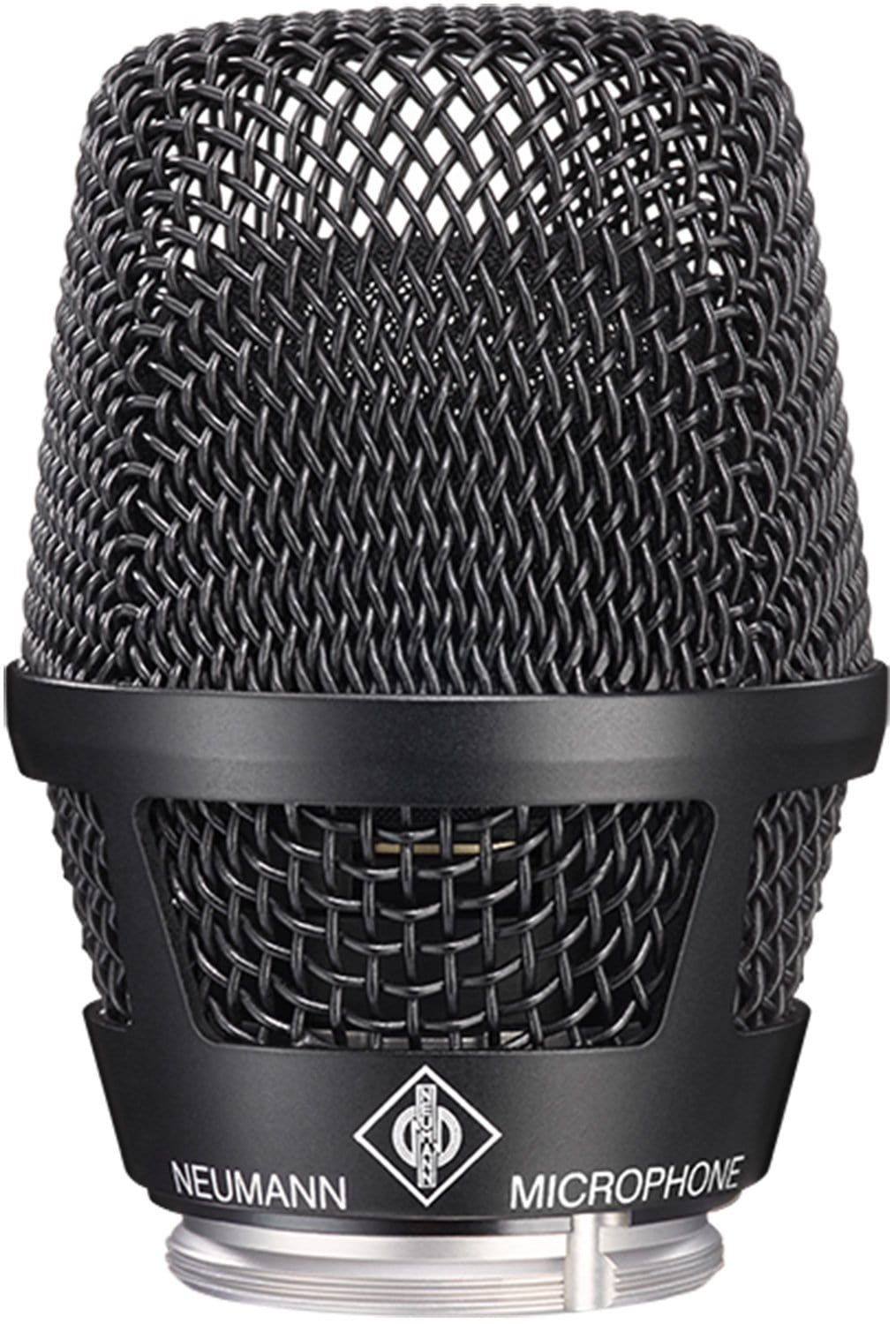

Neumann CAPKK105S Supercardioid Capsule for SKM5200

The KK 105 S is a premium quality capsule head for Sennheiser SKM 5000/5200 handheld transmitters. Its precision manufactured condenser capsule offers true Neumann sound, combined with the freedom of wireless operation and all the virtues of a rugged stage microphone: excellent pop protection, enormous SPL capability, and high feedback resistance.

Features:

• Neumann sound for or Sennheiser SKM 5000/5200 wireless systems
• Tight supercardioid pattern without off-axis coloration
• Feedback resistant, high rejection of rearward sound (120°)
• Unaffected by extreme sound pressure levels
• Built-in pop protection, low handling-noise
• Easy cleaning

Specifications:

• Directional Pattern: Supercardioid
• Frequency Range: 80 Hz - 20 kHz
• Sensitivity at 1 kHz into 1 kohm: 1.3 mV/Pa ± 1 dB equ. -58 dBV
• Equivalent noise level, CCIR: 44 dB
• Equivalent noise level, A-weighted: 33 dB-A
• Maximum SPL for THD 0.5%: 150 dB
• Maximum SPL for THD < 3 %: 155 dB
• Signal-to-noise ratio, CCIR (re. 94 dB SPL): 50 dB
• Signal-to-noise ratio, A-weighted (re. 94 dB SPL): 61 dB-A
• Weight: approx. 325 g (incl. Tranmitter + power supply unit)
• Diameter: 48 mm
• Length: 257 mm (incl. Tranmitter)
• Maximum SPL for THD 3%: 155 dB
• Frequency range (transmitter): 450 - 960 MHz
• Switching bandwidth: 24 MHz
• Transmitter frequencies: 16
• RF-output: 50 mW (-3 dB)
• Noise suppression system: Sennheiser "HiDyn plusTM"
