Shure A15AS Switchable Attenuator - 15 / 20 / 25 dB - Passes Phantom Power

Shure A15AS Switchable Attenuator - 15 / 20 / 25 dB - Passes Phantom Power

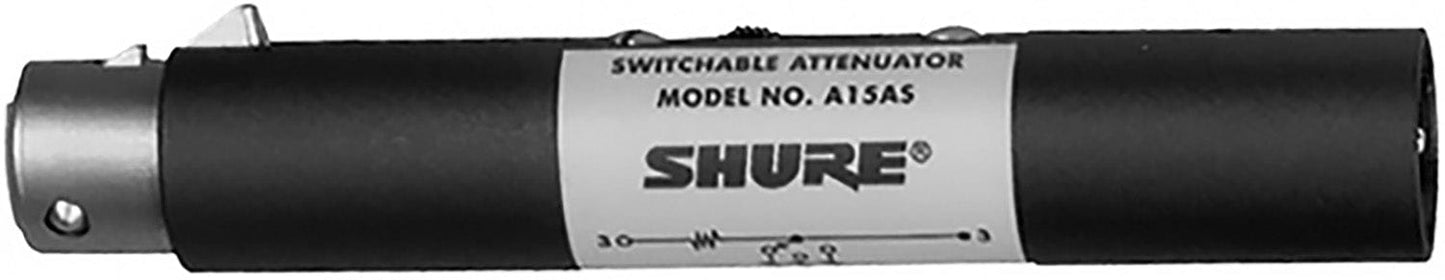

The Shure A15AS Switchable In-Line Attenuator reduces the level of any balanced microphone or line-level signal by 15, 20, or 25 dB. It is specially suited to reducing the level of a high-output microphone to prevent it from overloading the microphone input of a mixer or recorder in applications with high sound pressure levels. In addition, the A15AS may be used to reduce the level of a line-level mixer output to prevent overloading the aux-level input of a recorder. The A15AS is equipped with a female 3-pin XLR connector on the input side, and a male 3-pin XLR connector on the output side. Attenuation is controlled by a three-position slide switch. The A15AS allows phantom power to pass through from the mixer to the microphone, so it can be used with condenser microphones.

Features:

• Provides 15, 20, or 25 dB of microphone attenuation
• For use with all low-impedance and phantom-powered condenser microphones
• XLR input and output
• Full magnetic shield in a steel gray-enamel-finished case

Specifications:

• General:
  • In-Line Accessory Type: Attenuator/Pad
  • Input / Output Level:
    • Input: Mic/Line Level
    • Output: Mic/Line Level
  • Number of Channels: 1
  • Attenuation: -15 dB / -20 dB / -25 dB (Selectable)
  • Controls: 1x Pad Switch
• Connectivity:
  • Inputs/Outputs:
    • 1x XLR 3-Pin Female Input
    • 1x XLR 3-Pin Male Output
• Performance:
  • Impedance:
    • Input: 1 Kilohms
    • Output: 150 Ohms
• Physical:
  • Dimensions: 4.5 x 0.7" / 11.4 x 1.9 cm
